Troubleshooting by Indication on the Remote Controller Si37-701
274 Troubleshooting
3.31
“J8”
Outdoor Unit: Malfunction of Liquid Pipe Thermistor 2
(R7T or R15T)
Remote
Controller
Display
J8
Applicable
Models
REYQ8P~48P
Method of
Malfunction
Detection
Malfunction is detected according to the temperature detected by liquid pipe thermistor.
Malfunction
Decision
Conditions
When the liquid pipe thermistor is short circuited or open.
Supposed
Causes
Faulty liquid pipe thermistor 2 (R7T or R15T)
Faulty outdoor unit PC board
Defect of thermistor connection

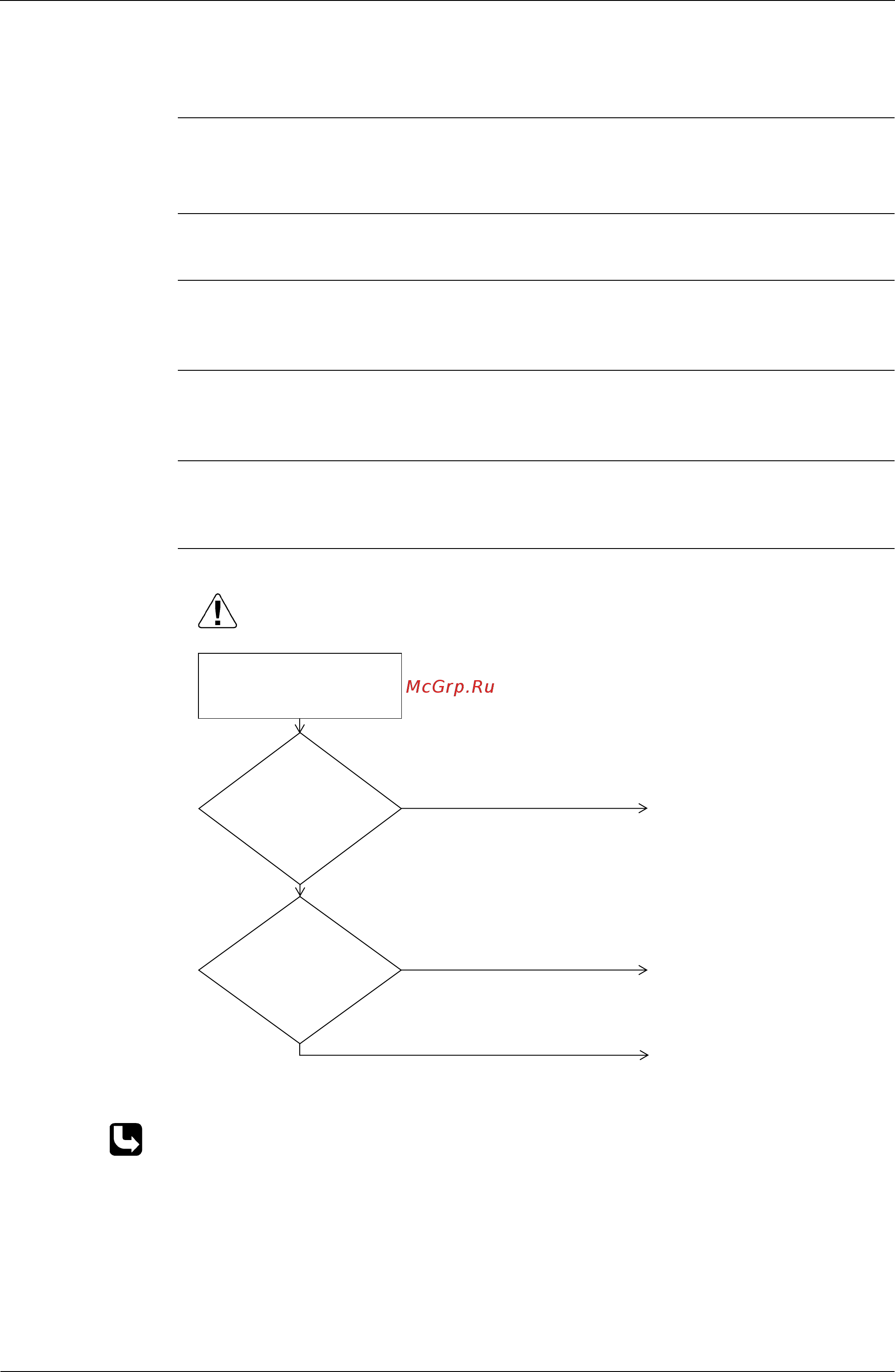

Troubleshooting
∗
Refer to “Thermistor Resistance / Temperature Characteristics” table on P405.
(V3075)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Is the
resistance
measured after
removing the thermistor
(R7T or R15T) from outdoor
unit PC board normal?
(1.8kΩ to
800kΩ)
Replace outdoor unit PC board
(A1P).
Connect the connector and
operate unit again.
NO
NO
Replace thermistor (R7T or R15T).
YES
YES
Is
the connector
for liquid pipe
thermistor connected to
X30A on outdoor
unit PC board
(A1P)?
Confirm which thermistor is
abnormal using outdoor unit
"monitor mode".
(Refer to P226~227)
