Si37-701 Protection Control
Function 131
4.5 STD Compressor Overload Protection

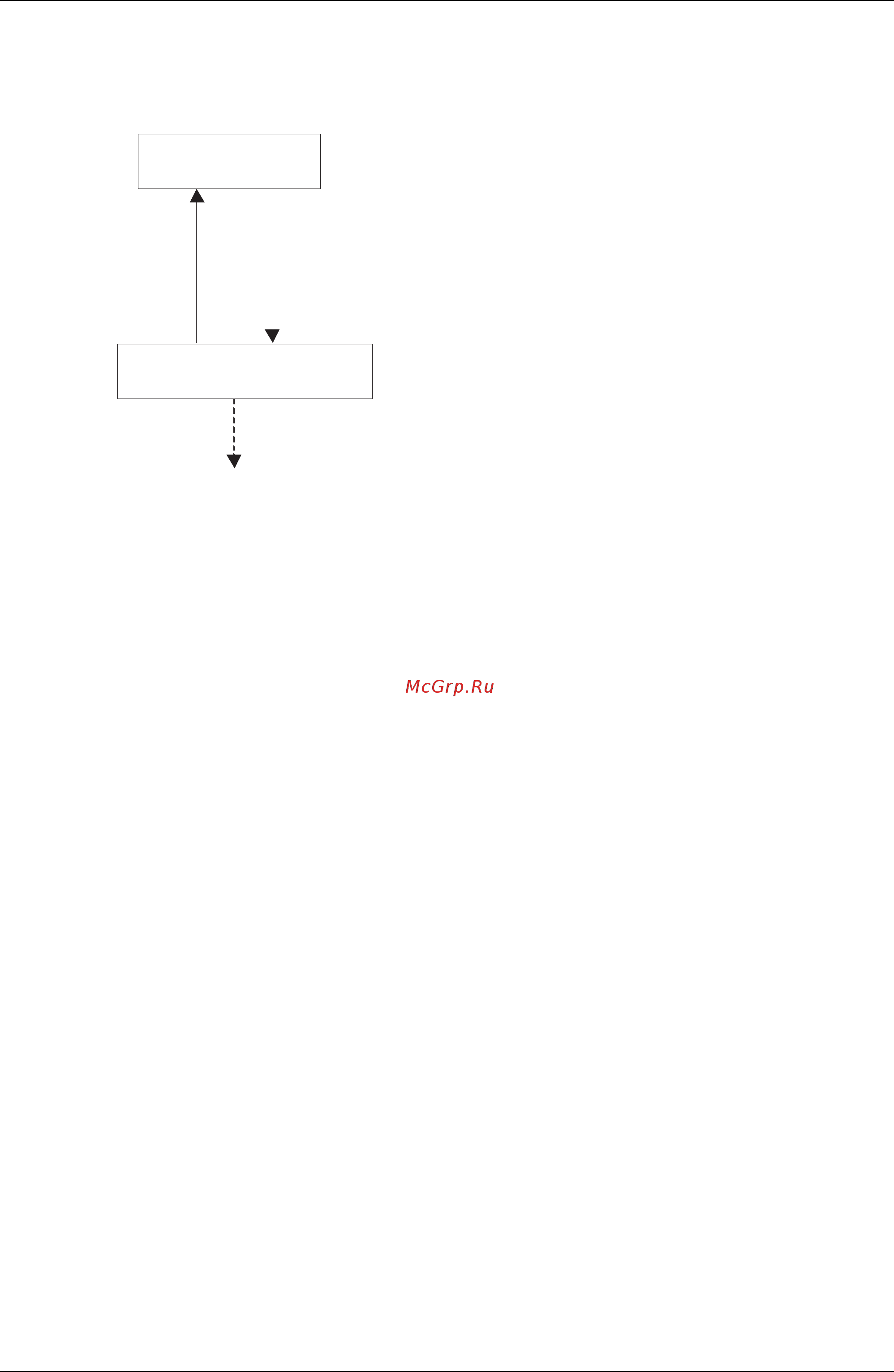

This control is used to prevent abnormal heating due to overcurrent to the compressor resulting
from failures of STD compressor such as locking.
STD compressor ON
CT detection current value>15.0A
STD compressor OFF for 30 min.*
Demand to operate.
When occurring 3 times within 90 min.,
the malfunction code “ E6 ” is output.
*If the power supply is reset while in
operation prohibition mode, the prohibition
timer will continue counting when the
power supply is turned ON.
