Troubleshooting by Indication on the Remote Controller Si37-701
278 Troubleshooting
3.34 “JC” Outdoor Unit: Malfunction of Low Pressure Sensor
Remote
Controller
Display
JC
Applicable
Models
REYQ8P~48P
Method of
Malfunction
Detection
Malfunction is detected from pressure detected by low pressure sensor.
Malfunction
Decision
Conditions
When the low pressure sensor is short circuit or open circuit.
(Not less than 1.77MPa, or -0.01MPa and below)
Supposed
Causes
Defect of low pressure sensor system
Connection of high pressure sensor with wrong connection.
Defect of outdoor unit PC board.
Defective connection of low pressure sensor
Troubleshooting
(V2808)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Replace the main PC board.
Replace the low pressure sensor.
YES
NO
Replace the main PC board.
NO
Replace the low pressure sensor.
YES
NO

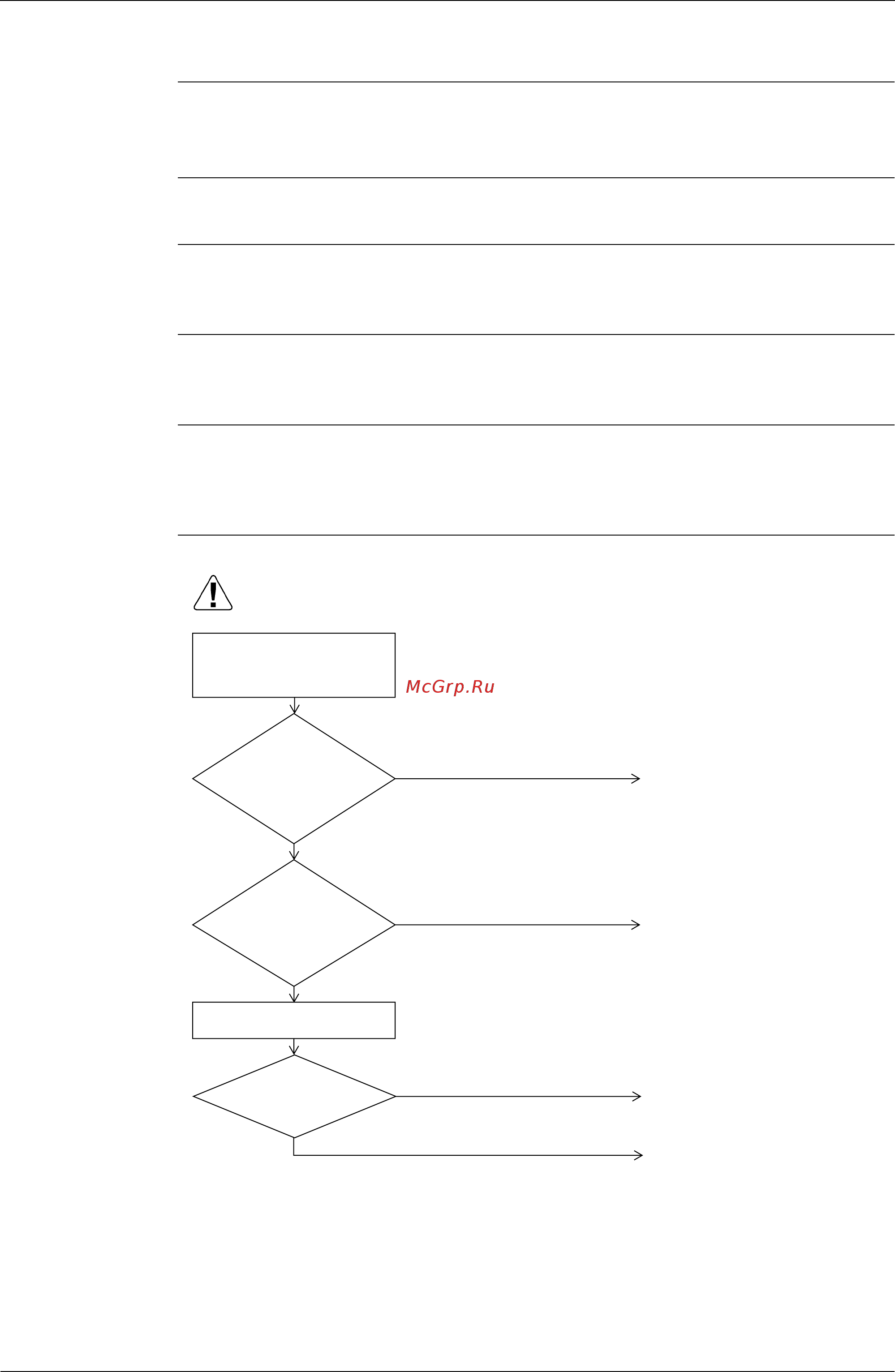

Are the
characteristics of
the low pressure sensor
normal? (Make a comparison
between the voltage characteristics
(∗1) and the gauge
pressure.)
YES
If the
PC board pressure
detection normal?
(Make a comparison between the
checker pressure data and the
voltage characteristics
(∗1).)
1.Set the low pressure gauge
upright.
2.Connect the checker for
VRV to the gauge.
Reset the operation, and then
restart the outdoor unit.
Are the
characteristics of the low
pressure sensor
normal?
