Troubleshooting by Indication on the Remote Controller Si37-701
270 Troubleshooting
3.27
“J4”
Outdoor Unit: Malfunction of Temperature Sensor
for Heat Exchanger Gas (R2T or R11T)
Remote
Controller
Display
J4
Applicable
Models
REYQ8P~48P
Method of
Malfunction
Detection
Detect malfunction based on the temperature detected by each thermistor.
Malfunction
Decision
Conditions
In operation, when a thermistor is disconnected or short circuits.
Supposed
Causes
Defective connection of thermistor
Defective thermistor
Defective outdoor unit PC board

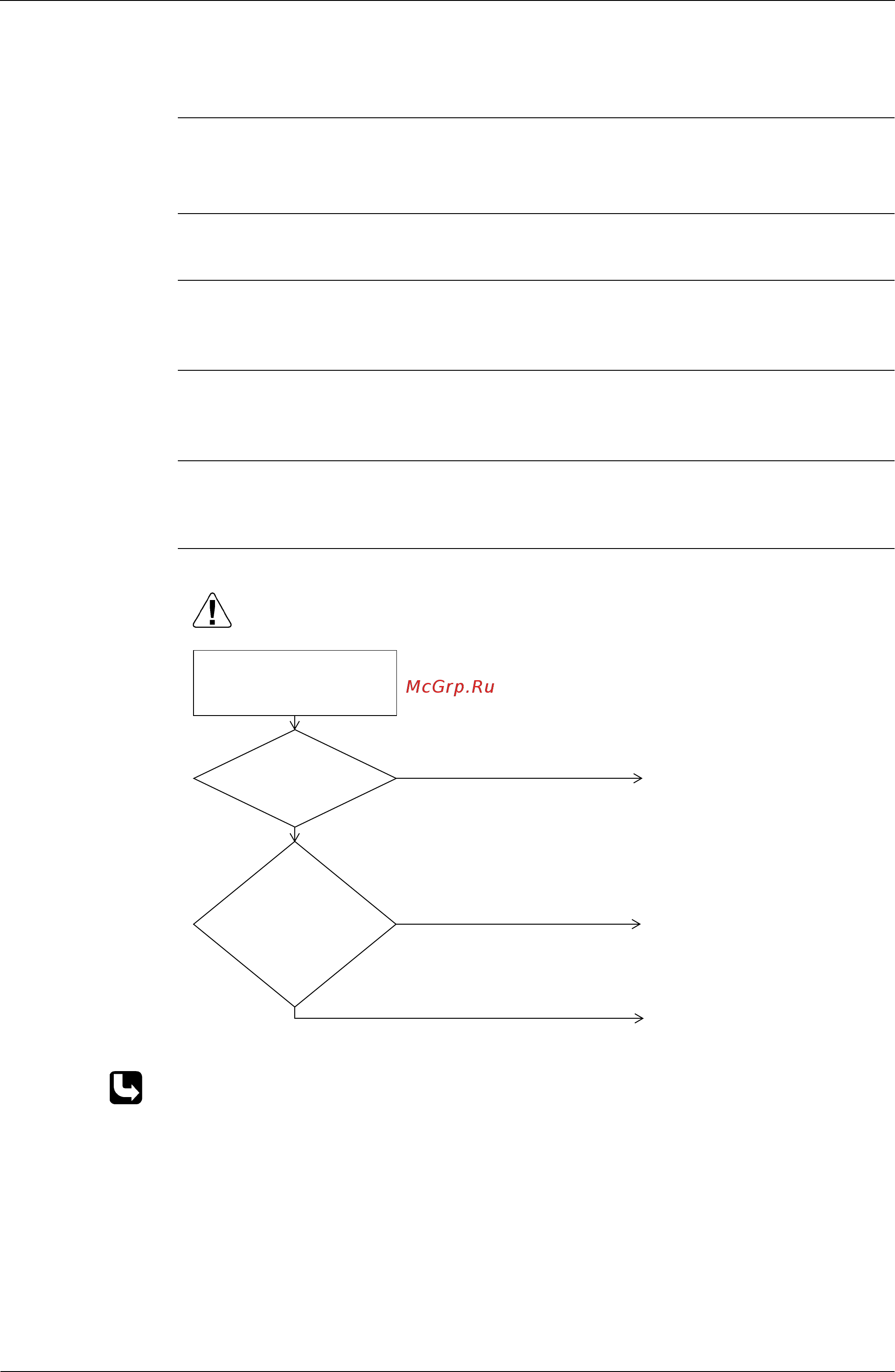

Troubleshooting
∗
Refer to “Thermistor Resistance / Temperature Characteristics” table on P405.
(V3070)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Resistance
is normal when
measured after
disconnecting the thermistor
(R2T or R11T) from the
outdoor unit PC
board. (1.8kΩ
to 800kΩ)
Connector is
connected to X30A of
outdoor PC board
(A1P).
Replace outdoor unit PC board
(A1P).
Connect the connector and turn on
again.
NO
NO
Replace the thermistor (R2T or
R11T)
YES
YES
Confirm which thermistor is
abnormal using outdoor unit
"monitor mode".
(Refer to P226~227)
