17
New2001New2001
ACCESS THE REPEATER
1
New2001

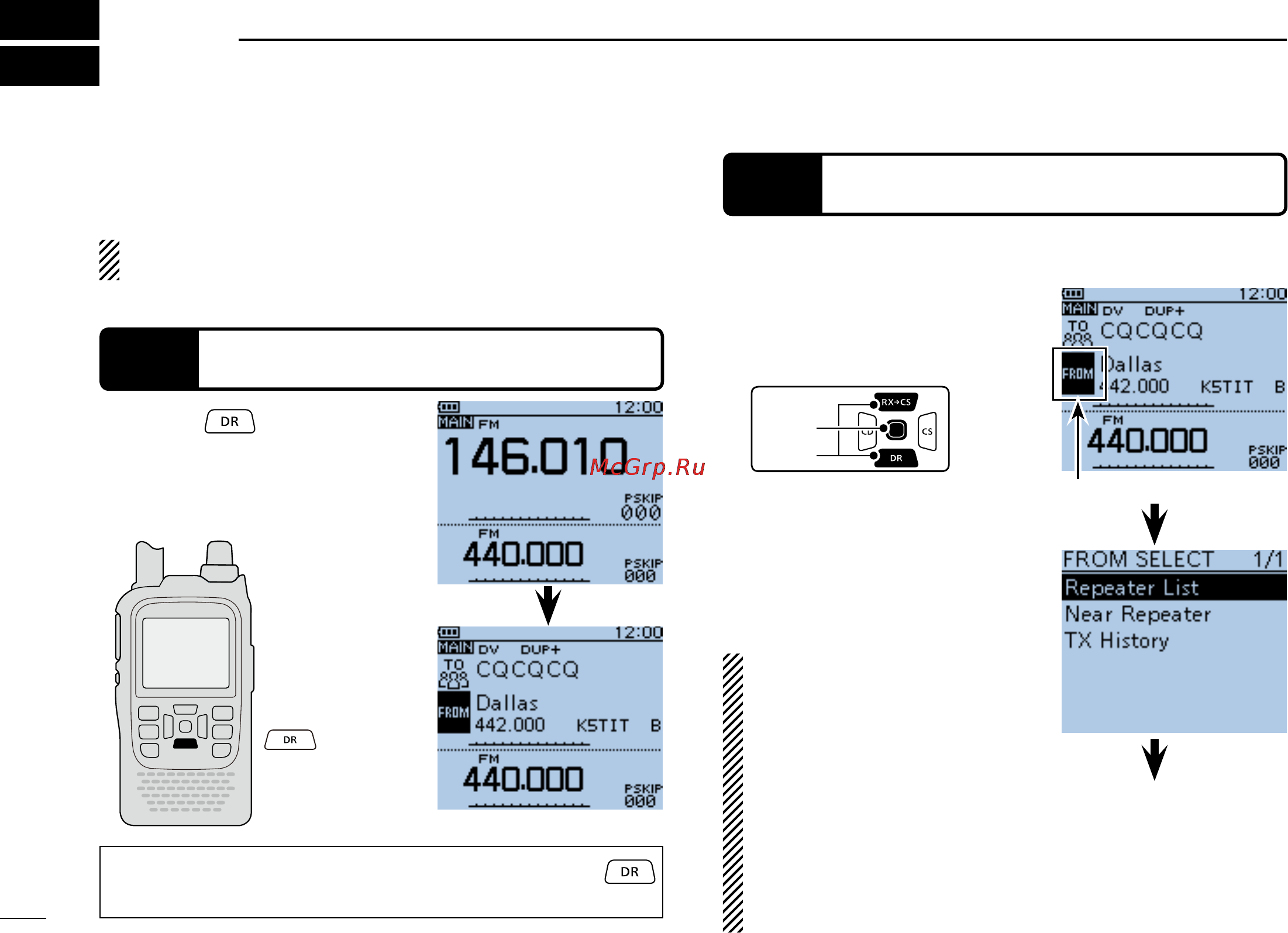

STEP 1
Select the DR mode
Hold down for 1 second.
•TheDRmodeisselected.
•
The repeater list, described in this
manual, may differ from your trans-
ceiver’s preloaded list.
VFO mode
DR mode
STEP 2
Select your Access repeater (“FROM”)
Push D-pad( q ) to select
“FROM” (Access repeater),
and then push D-pad(Ent).
D-pad
(�)
(Ent)
Push D-pad( w ) to select “Re-
peater List,” and then push
D-pad(Ent).
If you want to return to the VFO mode, hold down
again for 1 second.
Go to step e
“FROM” is selected.
Thissectiondescribeshowtocheckwhetherornotyoucan
access your local area repeater (Access repeater), and if your
signal is successfully sent to a destination repeater.
If your call sign (MY) has not been set, or your call sign has
not been registered on a D-STAR repeater, see page 2.
Example: Your Access repeater is Hirano/Japan in the Re-
peater list.
You have four other ways to
select your access repeater,
other than selecting it from re-
peater list. See the Advanced
Instructions for more details.
• Rotating [DIAL]
• Searching for the nearest re-
peaters
• Selecting from the TX History
• Searching for a repeater us-
ing the DR mode scan
