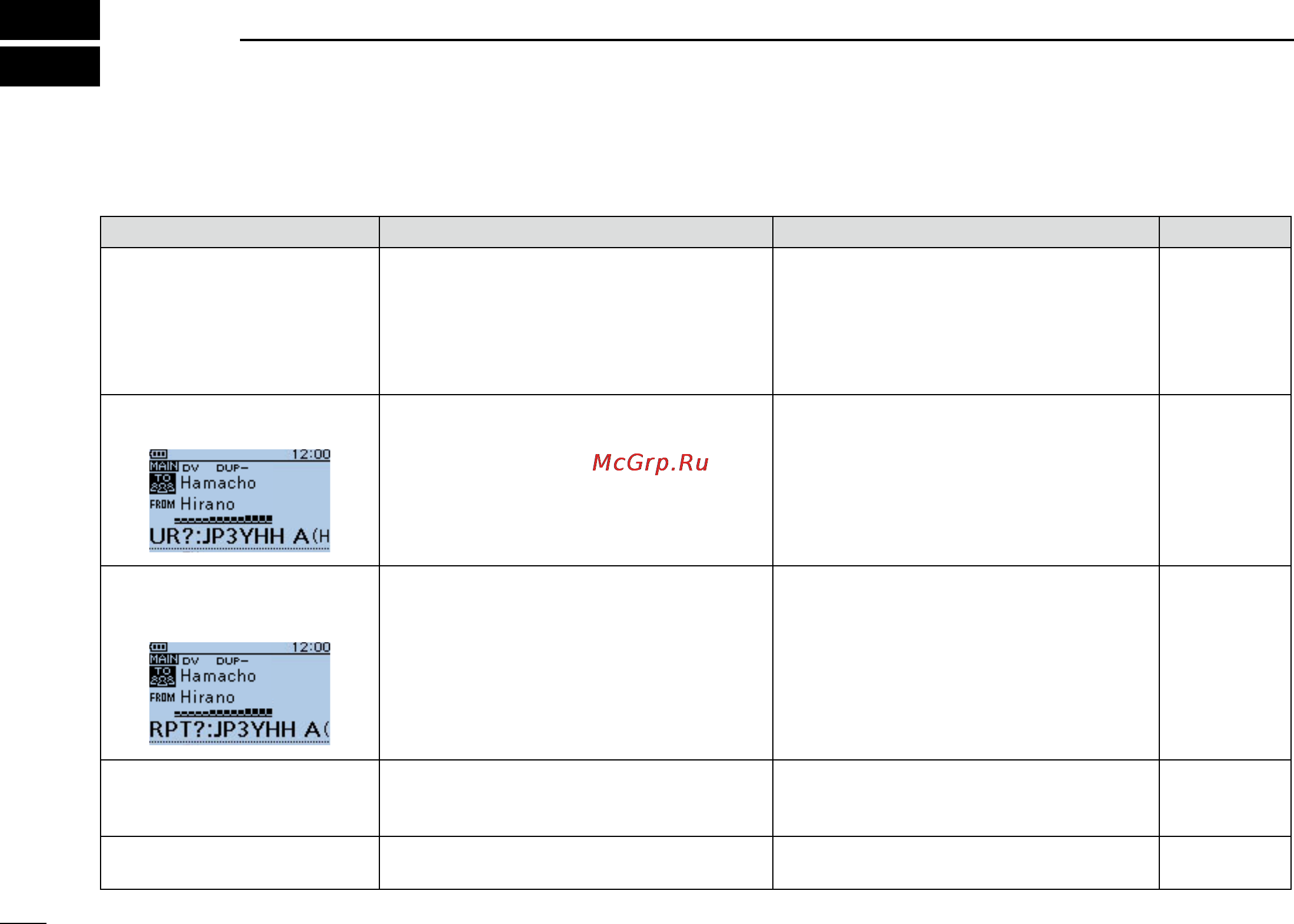

TROUBLESHOOTING
8
To communicate through the repeater, your signal must access to the repeater. When your signal accesses your local repeater,
but it is not sent to the destination repeater, the repeater replies with an status message.
PROBLEM POSSIBLE CAUSE SOLUTION REF.
After your call, the repeater does
not return a status reply.
•Therepeatersettingiswrong.
•Yourtransmissiondidnotreachtherepeat-
er.
•Selectthecorrectrepeater.
•Correct the repeater frequency, frequency
offset, or duplex setting.
•Waituntilyouareclosertotherepeaterand
try again.
•Trytoaccessanotherrepeater.
p. 17
—
—
After your call, the repeater re-
plies ‘UR?’ and its call sign.
•Thecallwassuccessfullysent,butnostation
immediately replied.
•Waitforawhile,andtryagain. —
After your call, the repeater re-
plies ‘RX’ or ‘RPT?’ and the ac-
cess repeater’s call sign.
•Yourowncallsign(MY)hasnotbeenset.
•Your own call sign (MY) has not been reg-
istered on a gateway repeater, or the regis-
tered contents do not match your transceiv-
er’s setting.
•Setyourowncallsign(MY).
•Registeryourowncallsign(MY)onagate-
way repeater, or confirm the registration of
the call sign.
p. 2
p. 4
After your call, the repeater re-
plies ‘RPT?’ and call sign of the
destination repeater.
•Therepeatercannotconnecttothedestina-
tion repeater.
•Therepeateris busy.
•
Checktherepeatersetting.
•
Wait for a while, and try it again.
p. 17
—
After your call, the access repeat-
er replies ‘RPT?’ and its call sign.
•The call sign of the destination repeater is
wrong.
•Correctly set the destination repeater call
sign.
—
