INTRODUCING NEW FUNCTIONS
New2001
13
INTRODUCING NEW FUNCTIONS
New2001
Unwanted frequency
Repeat Voice TX
waiting screen
This is JA3YUA
JA3YUA
TemporarySkipsetting
<While scanning>
NEW!
Auto Position Reply function
NEW!
voice TX function
NEW!
Speech function
NEW!
Temporary Skip function

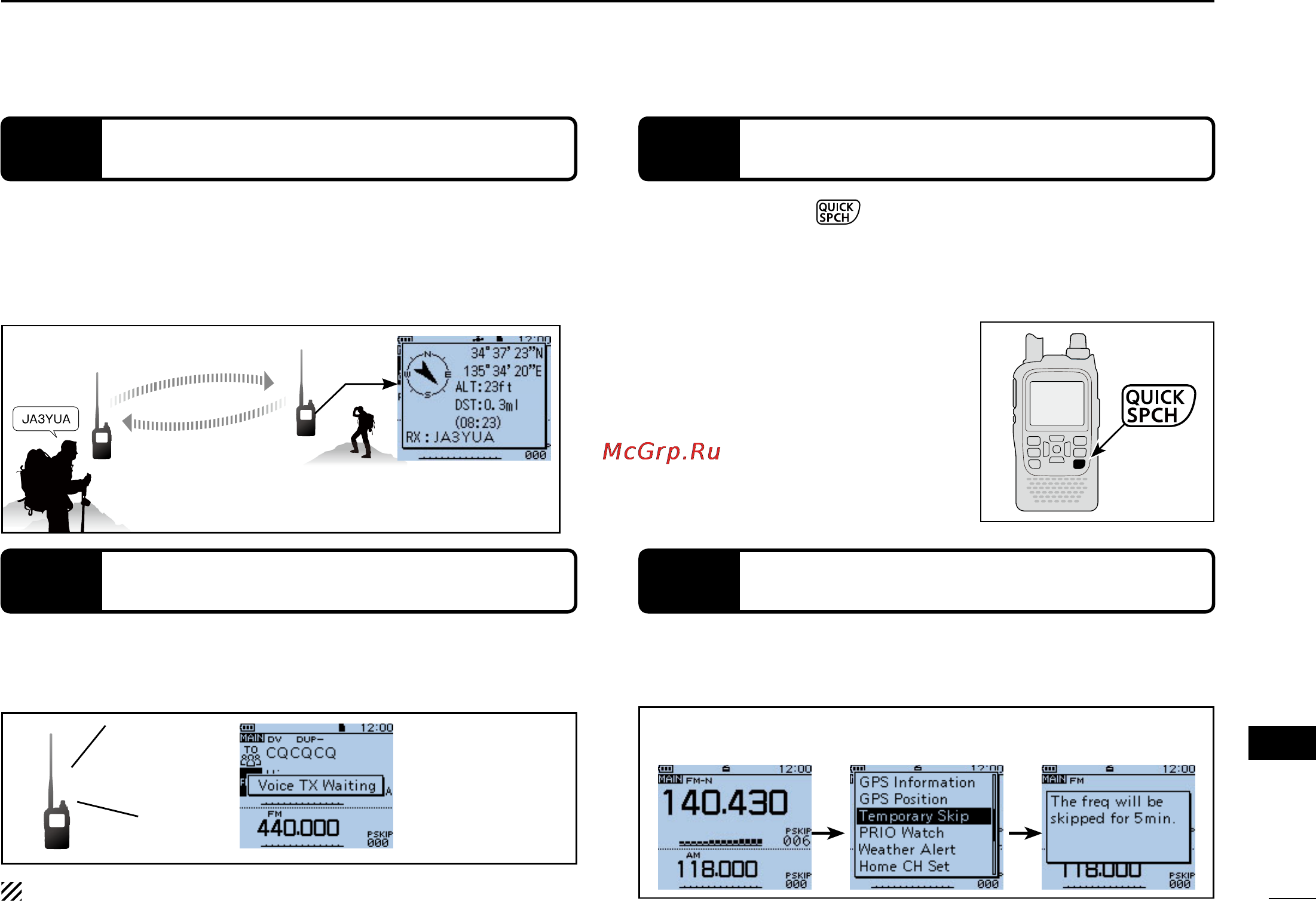

When you receive a call addressed to your own call sign, but
areinasituationthatmakesitdifculttooperatethetrans-
ceiver, this function automatically replies with your own call
sign and transmits your position.
•SeethePDFtypeAdvancedInstruction’sSection9fordetails.
You can transmit recorded audio once or repeatedly, which is
useful for D-STAR events.
•SeethePDFtypeAdvancedInstruction’sSection17fordetails.
Hold down [SPCH] for 1 second to audibly announce the
displayed frequency and operating mode, or call sign.
Youwillknowitwithoutlookingatthedisplay.
•SeethePDFtypeAdvancedInstruction’sSection17fordetails.
Also,otherfunctionshelpyouknow
thecurrentsettingwithoutlooking
at the display.
See the PDF type Advanced In-
struction for details.
❍ Home CH beep function
❍ [DIAL] speech function
❍ Mode speech function
Thisfunctiontemporarilyskipsunwantedfrequenciesduring
a scan, for a set period.
•SeethePDFtypeAdvancedInstruction’sSection13fordetails.
NOTE: This function requires a microSD card.
Destination
(ID-51)
Your station
q A call addressed to
your own call sign.
w Your position is auto-
matically transmitted.
e After receiving, the
screen shows the
position.
