GPS OPERATION

New2001

GPS OPERATION

New2001

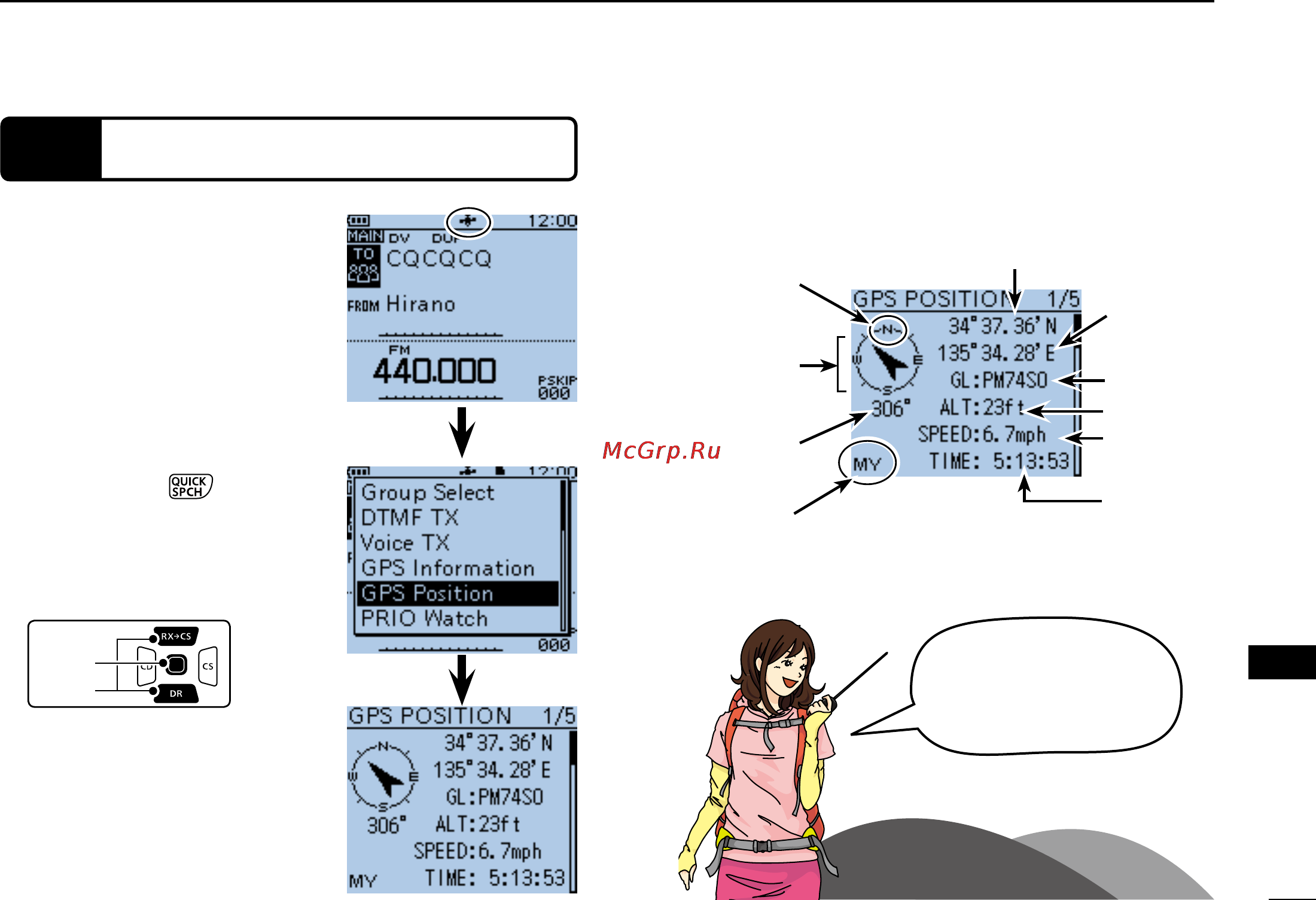

STEP 2

Displaying your position

Conﬁrm the GPS icon is dis-

played on the LCD.

Push [QUICK] q

to enter

theQuickMenuscreen.

w Push D-pad() to select the

“GPS position” item, and then

push D-pad(Ent).

D-pad

(�)

(Ent)

e The ﬁrst MY GPS position

screen appears. (1/5)

GPS Position screen (MY)

The top of the

compass is North.

Your course head-

ing is Northwest.

Your course head-

ing is 306 degrees.

Latitude

Longitude

Grid Locator

Altitude

Speed

Time

that the

displayed

data was

acquired.

Shows the dis-

played position

is yours.

How convenient!

Icaneasilycheckmy

position and altitude!!
