HOW TO USE THE RX HISTORY
New2001 New2001
STEP 2
Save the destination call sign into your call sign
memory from the RX History (Continued)

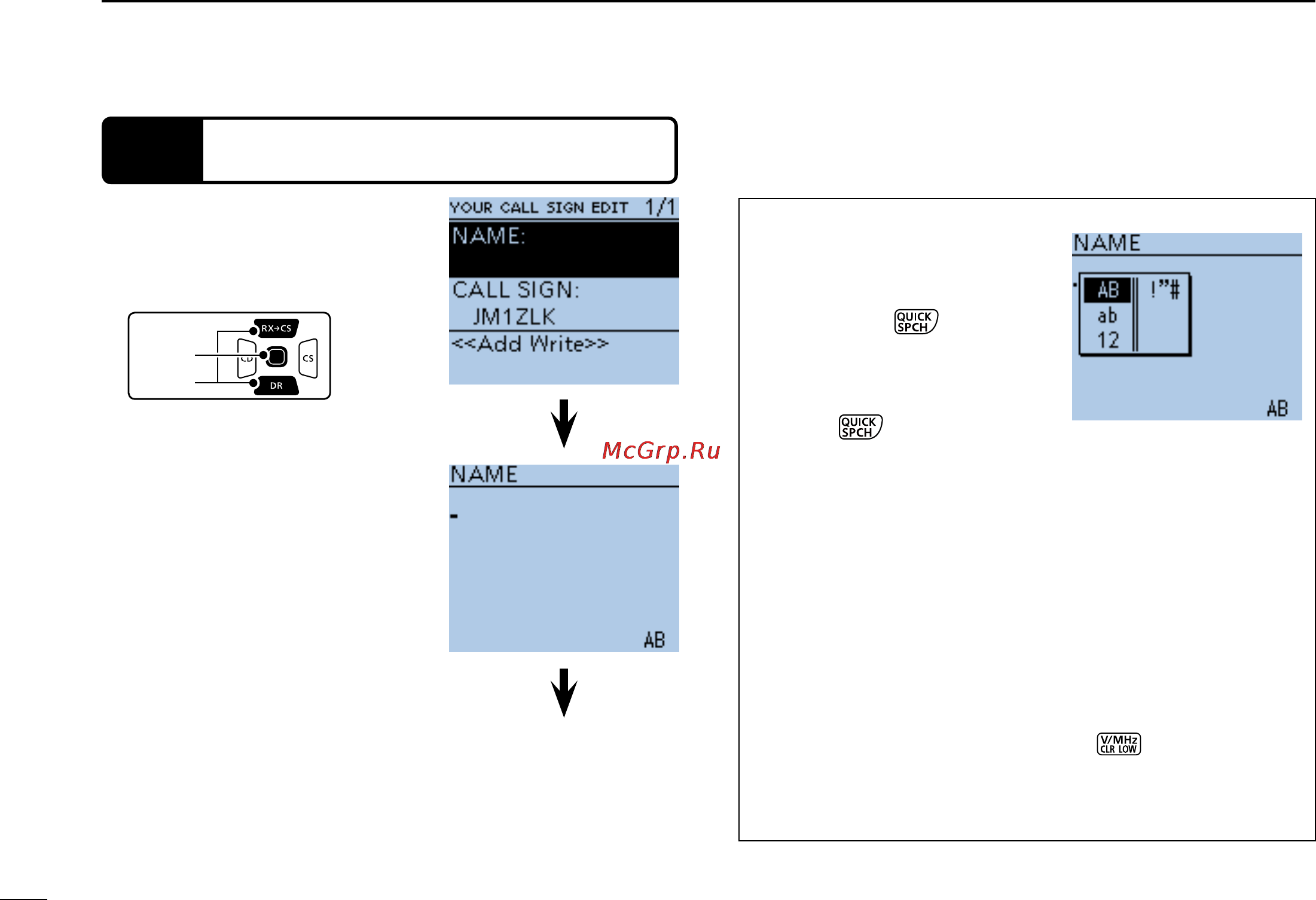

Push D-pad( t ) to select
“NAME,” and then push D-
pad(Ent).
•Acursorappearsandblinks.
Rotate [DIAL] to select a y
desired character to enter a
name of up to 16 characters,
including spaces.
About text entry
•Push D-pad() to move the
cursorbackwardorforward.
•While selecting a character,
push [QUICK]
to change
the character to an upper case
or lower case letter.
•While selecting a digit, push
[QUICK]
to open the input
mode selection window.
- Push D-pad() to select
the desired Upper case let-
ters, Lower case letters, Numbers or Symbols.
- To enter symbols, select “!”#,” and then push D-pad(Ent)
to open the symbol character selection window. And ro-
tate [DIAL] to select the desired symbol character, and
then push D-pad(Ent).
•Aspacecanbeselected,inanyinputmodeselected.
•Movethecursor,thenrotate[DIAL]toinsertacharacter.
•Rotate[DIAL]counterclockwisetoenteraspace.
•Ifyoumakeamistake,push[CLR]
to delete the se-
lected character, symbol or number, or hold down [CLR]
to continuously erase the characters, first to the right, and
then to the left of the cursor.
D-pad
(�)
(Ent)
Go to step u
Input mode selection
window
