Icom ID-51A [51/56] Resetting
![Icom ID-51A [51/56] Resetting](/views2/1074074/page51/bg33.png)
50
14
RESETTING
New2001
14
RESETTING

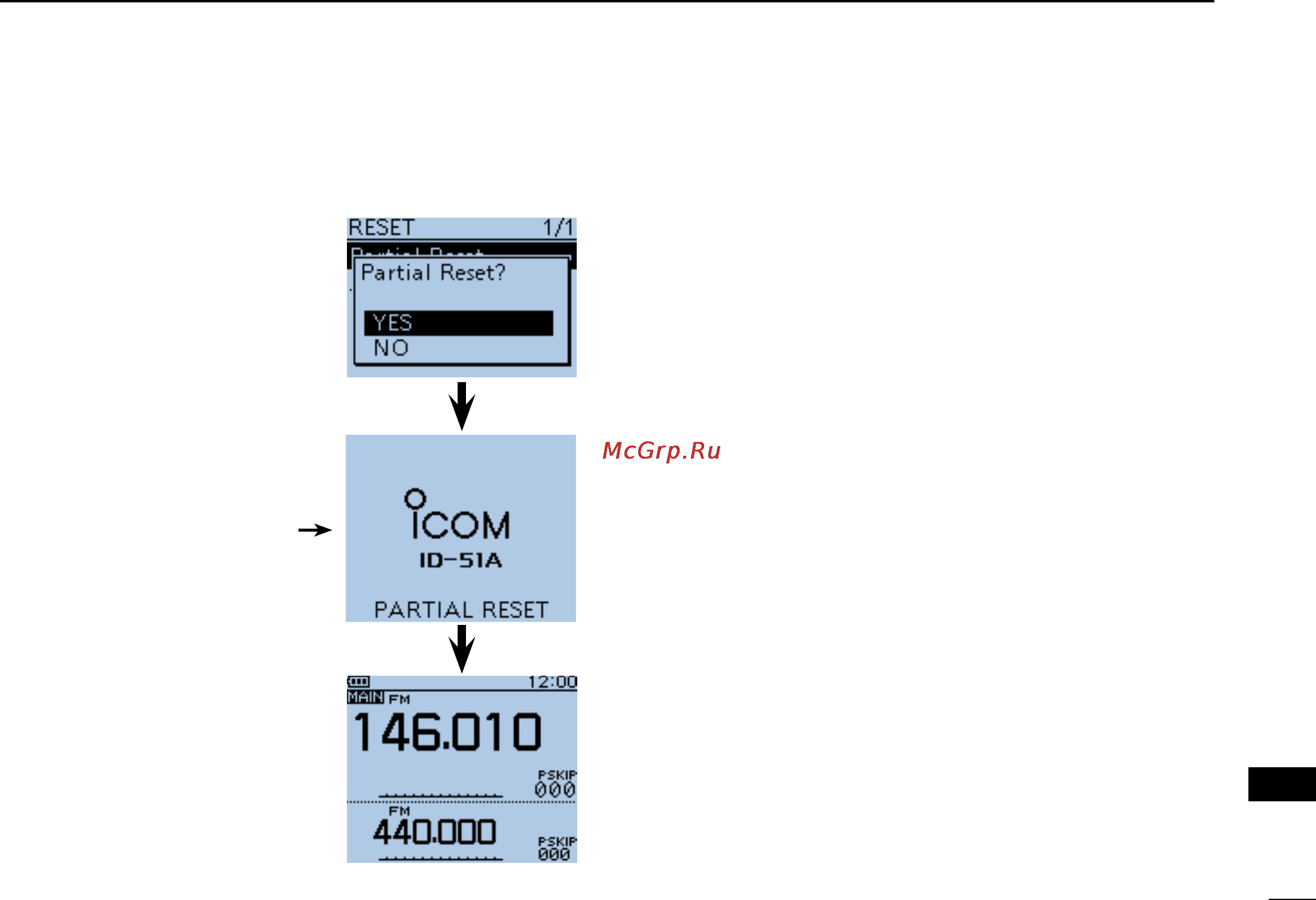

The “Partial Reset?” dialog r
appears.
Push D-pad( t ) to select “Yes,”
and then push D-pad(Ent).
•The transceiver displays “PAR-
TIAL RESET,” then the partial
reset is completed.
Default screen
Shows “PARTIAL RESET”
