Инструкция по эксплуатации Страница: 34

Icom ID-51A [34/56] Making a simplex call

New2001New2001

MAKING A SIMPLEX CALL

New2001

You can makeatransceivertotransceiver call (through no

repeater) in the DR mode.

NOTE: Depending on the transceiver's version, the fre-

quenciesmaybedifferent.Checkforacceptablefrequen-

cies for your operating area.

ABCpark

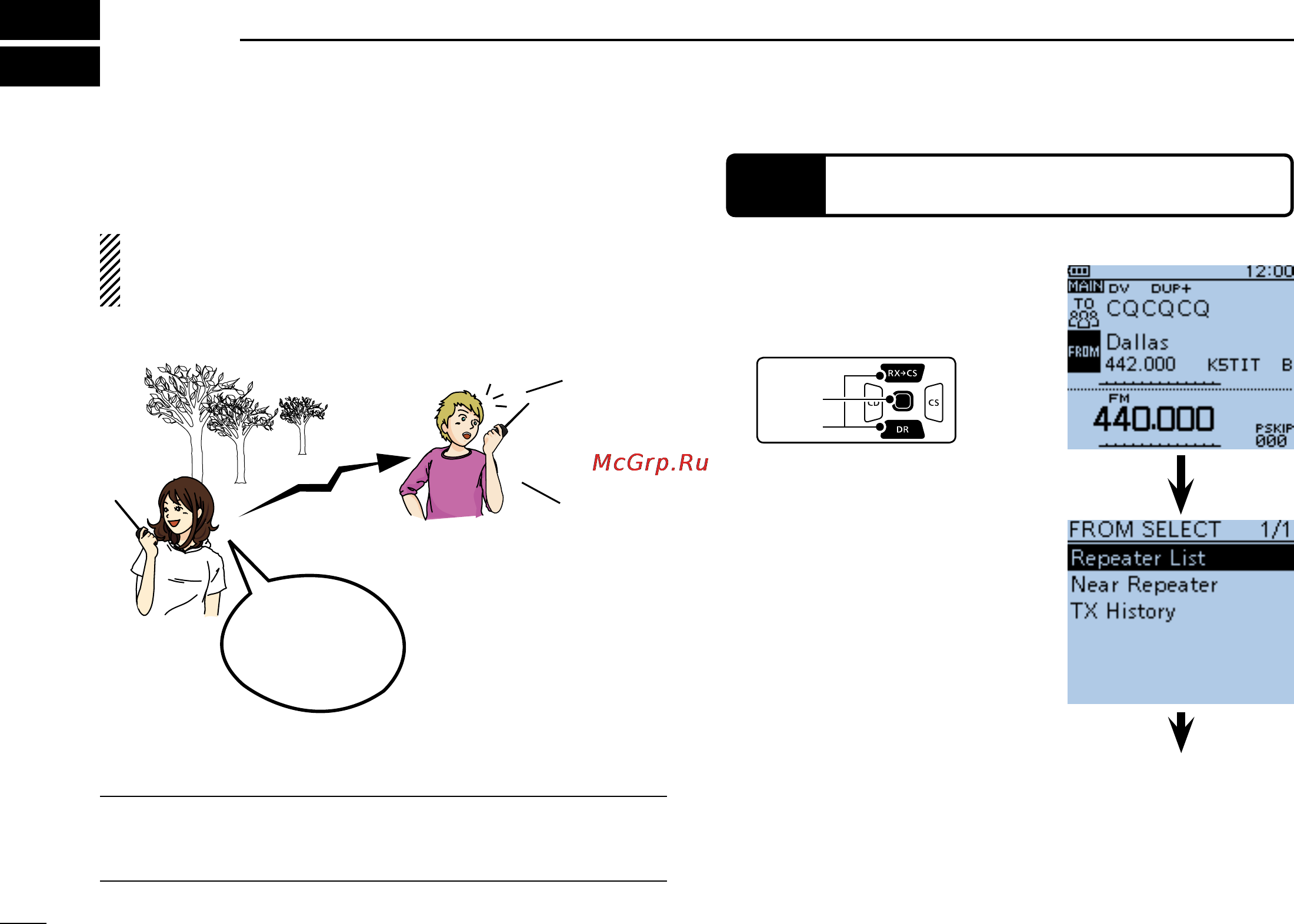

✓ What is a Simplex Call??

A simplex call is a direct call to another station, not using a

repeater.

JG3LUK

calling at

ABC park...

JG3LUK

calling at

ABC park...

Push D-pad( q ) to select

“FROM,” and then push

D-pad(Ent).

D-pad

(�)

(Ent)

STEP 1

Set “FROM” (Simplex channel)

Push D-pad( w ) to select “Re-

peater List,” and then push

D-pad(Ent).

Example:Makingasimplexcallon433.450MHz.

Go to step e
