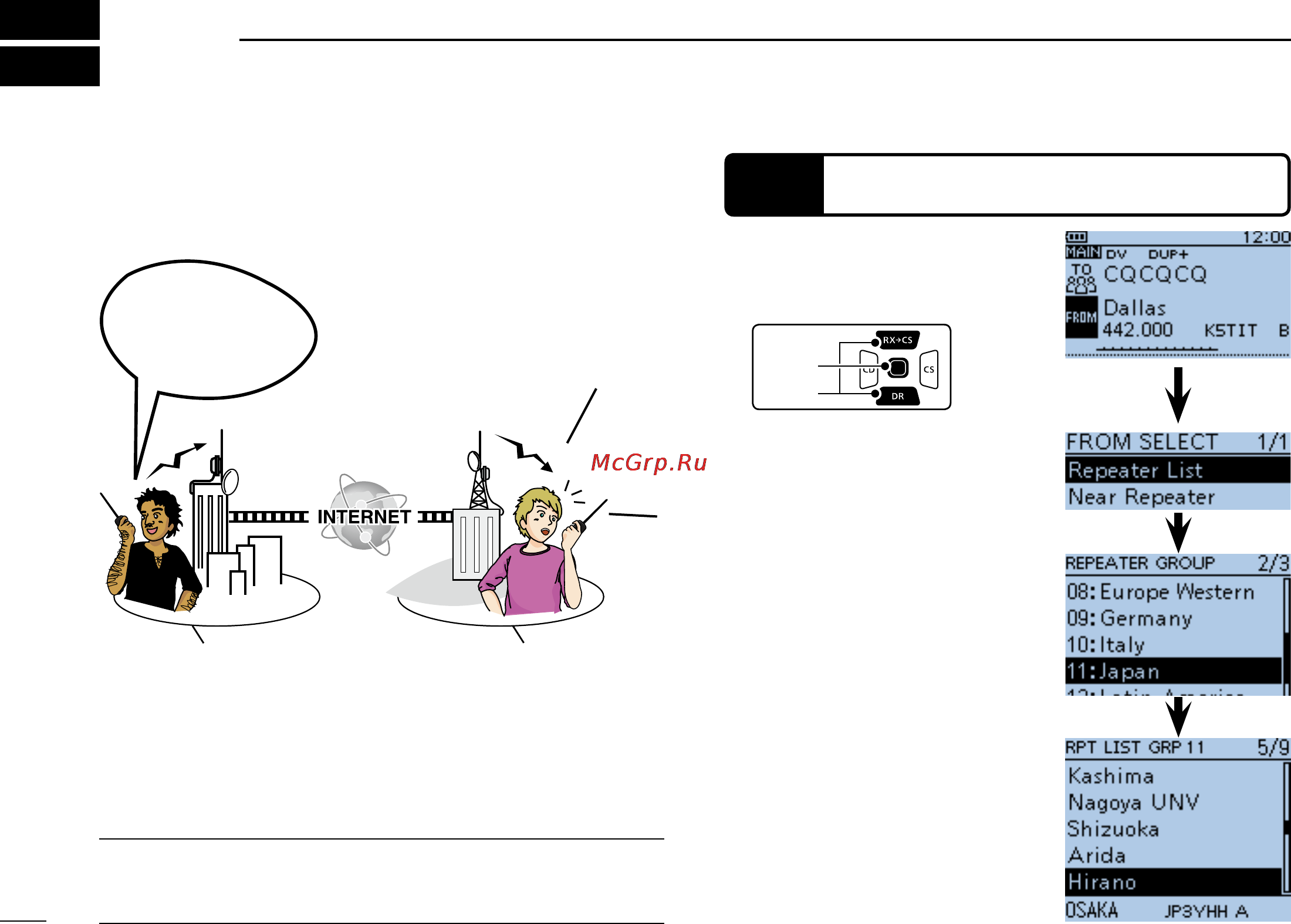

MAKING A GATEWAY CALL
5
A Gateway call can be made when a destination repeater is
selected in “TO” (Destination).
✓ What is a Gateway Call??
To call through your local area (access) repeater, repeater
gateway, and the Internet to your destination repeater.
Push D-pad( q ) to select
“FROM,” and then push D-
pad(Ent).
Push D-pad( w ) to select “Re-
peater List,” and then push
D-pad(Ent).
D-pad
(�)
(Ent)
STEP 1
Set “FROM” (Access repeater)
Push D-pad( e ) to select the
repeater group where your
access repeater is listed, and
then push D-pad(Ent).
•Example:“11:Japan”
Push D-pad( r ) to select your
access repeater, and then
push D-pad(Ent).
•Example:“Hirano430”
port A...
Repeater
JM1ZLK
JM1ZLK
calling to
calling to
JP1YIU
JP1YIU
port A...
Repeater
Repeater area
Repeater area
