New2001
3
PREPARATION
New2001

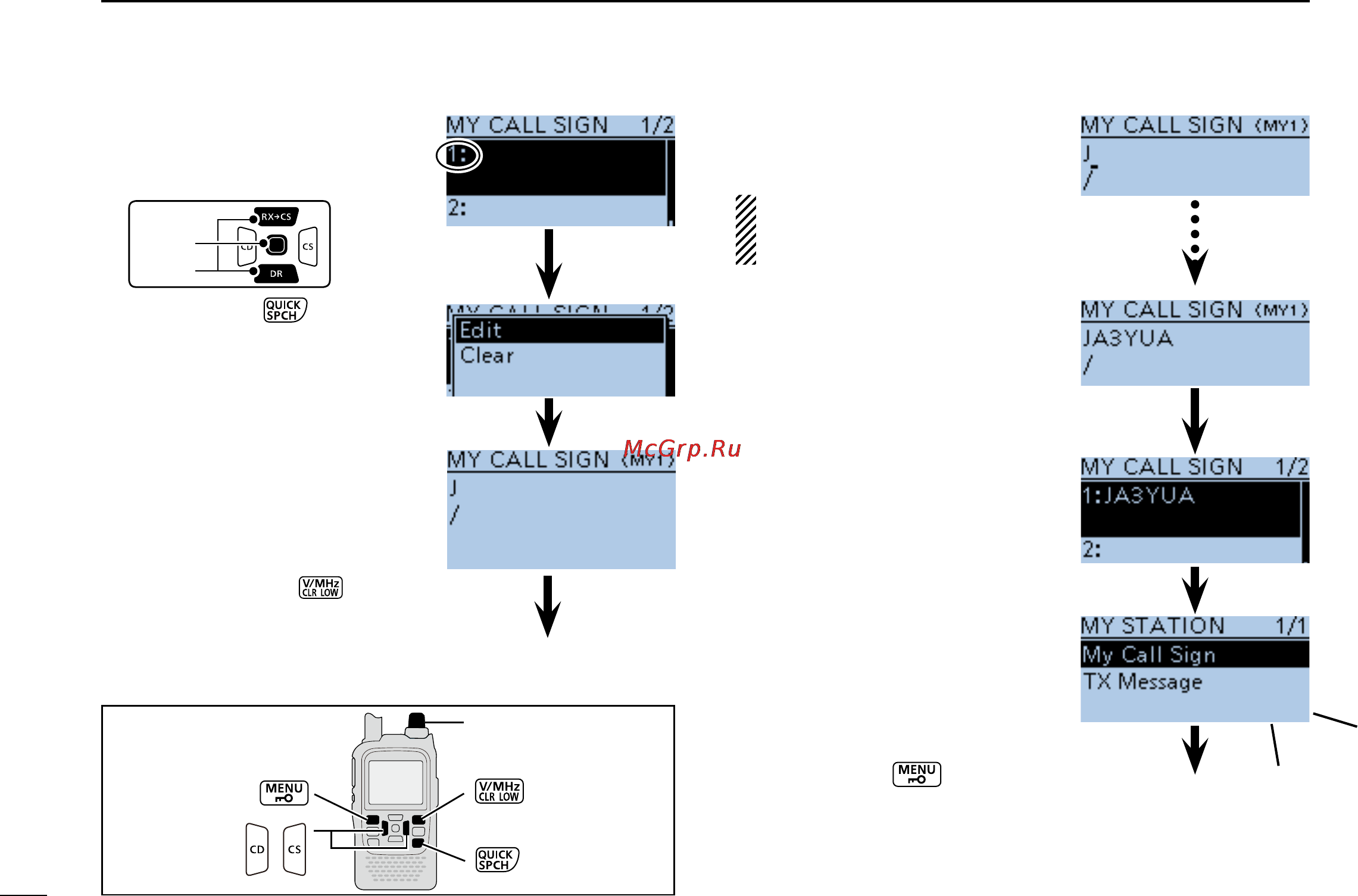

Push D-pad( t ) to select MY
call sign memory channel “1”
([MY1]).
D-pad
(�)
(Ent)
Push [QUICK] y , and then
push D-pad() to select
“Edit.” Then, push D-pad(Ent)
to enter the call sign edit
mode.
•Acursorappearsandblinks.
Rotate [DIAL] to select the u
first digit. (Example: J)
•AtoZ,0to9,/and(Space)are
selectable.
•Cursormove:PushD-pad().
•Delete:Push[CLR]
.
•Insert:
Move cursor, then rotate
[DIAL].
•Rotate[DIAL]counterclockwise
to enter a space.
Push i D-pad() to move the
cursor to the second digit.
NOTE: Your call sign must
match the call sign registered
to your gateway repeater. (p. 4)
Repeat steps o u and i to
enter your own call sign of
up to 8 characters, including
spaces.
( For example: First J, then A,
then 3, then Y, then U, then A)
!0 Push D-pad(Ent) to set the
call sign.
•Seenextpageifyouentera
note.
!1 Push D-pad(Ent) again to
save and return to the MY
CALL SIGN screen.
•Twobeepssound.
!2 Push [MENU]
to exit the
MENU screen.
Edit mode
Beeps
Completed
Go to step o
[DIAL]
Selects/exits the
MENU screen
Moves the
cursor
Selects
Deletes
Shows the
QUICK MENU
Keys used for input
