MAKING A LOCAL AREA CALL
4

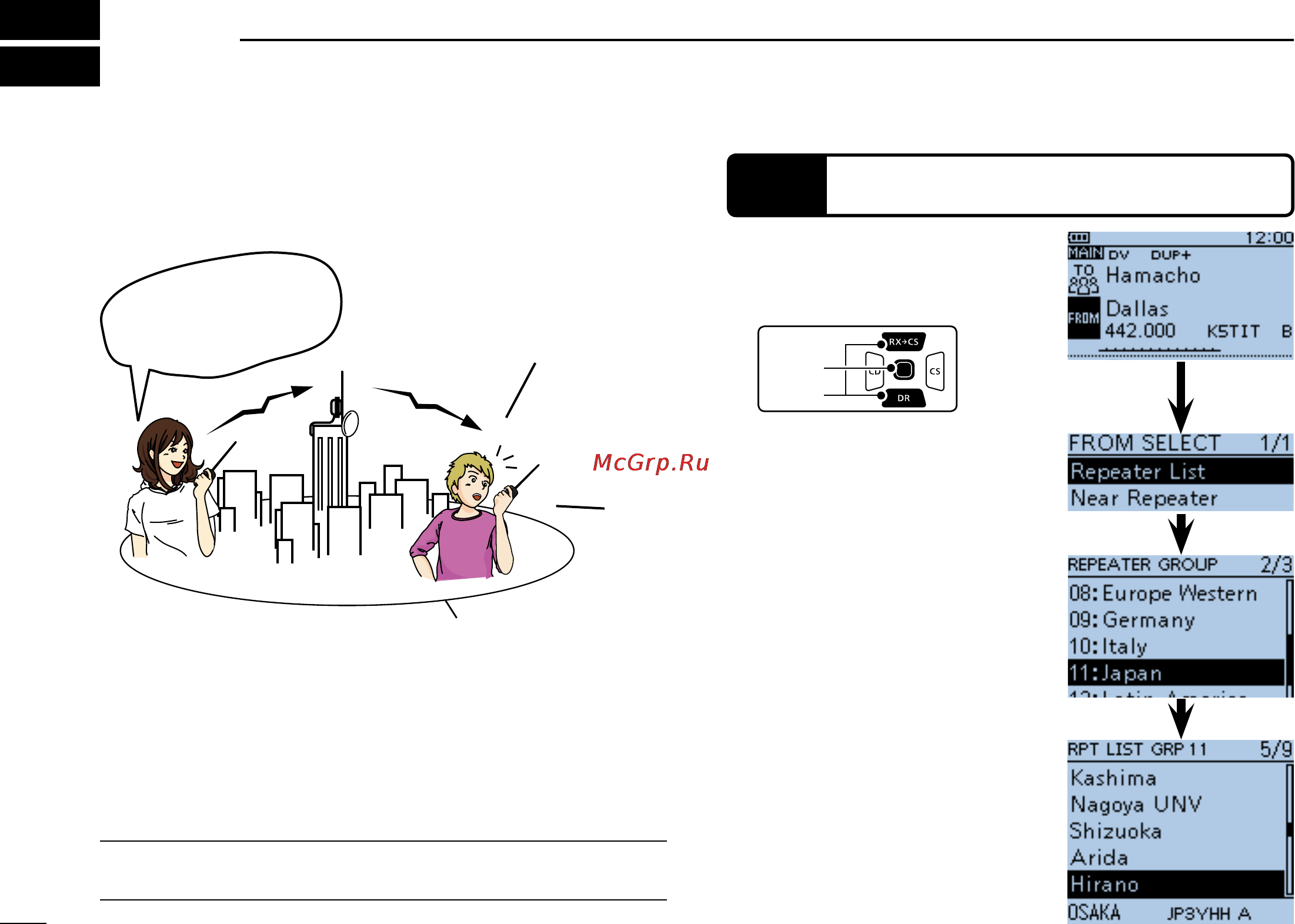

A Local area call can be made when “Local CQ” is used to set
“CQCQCQ” in “TO” (Destination).
✓ What is a Local Area Call??
To call through your local area (access) repeater.
Push D-pad( q ) to select
“FROM,” and then push
D-pad(Ent).
Push D-pad( w ) to select “Re-
peater List,” and then push
D-pad(Ent).
D-pad
(�)
(Ent)
STEP 1
Set “FROM” (Access repeater)
Push D-pad( e ) to select the
repeater group where your
access repeater is listed, and
then push D-pad(Ent).
•Example:“11:Japan”
Push D-pad( r ) to select your
access repeater, and then
push D-pad(Ent).
•Example:“Hirano”
JG3LUK
listening on
JP3YHH port A...
JG3LUK
listening on
JP3YHH
port A...
Repeater
Repeater area
