CAPTURING A CALL SIGN

After you receive the repeater’s signal, the calling station’s

call sign can be captured by holding down the Call Sign Cap-

ture key (

), andyou can quickly and easilyreplyto a

received call.

What is the Call Sign Capture key?? ✓

HoldingdowntheCallSignCapturekeyfor1secondsetsthe

last received station call sign as a temporary destination, and

makesreplyingquickandeasy.

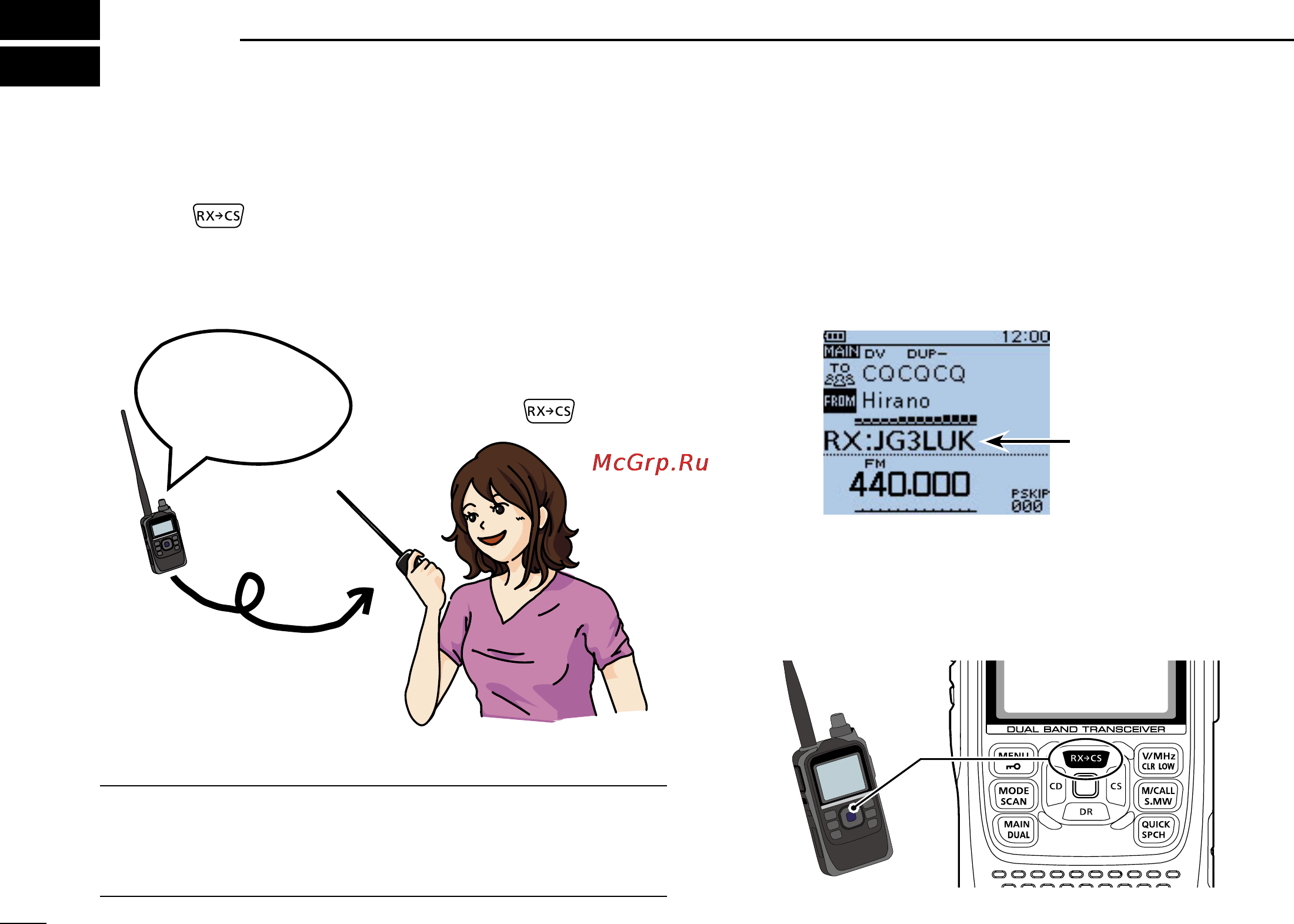

The Call Sign Capture key is here!

JG3LUK listen-

ing on JP3YHH

port A...

Beeps

Wow! I only have to

hold down

While receiving

When receiving a

call from “JG3LUK.”
