ACCESS THE REPEATER
New2001
1
ACCESS THE REPEATER
Continued on the next page ☞

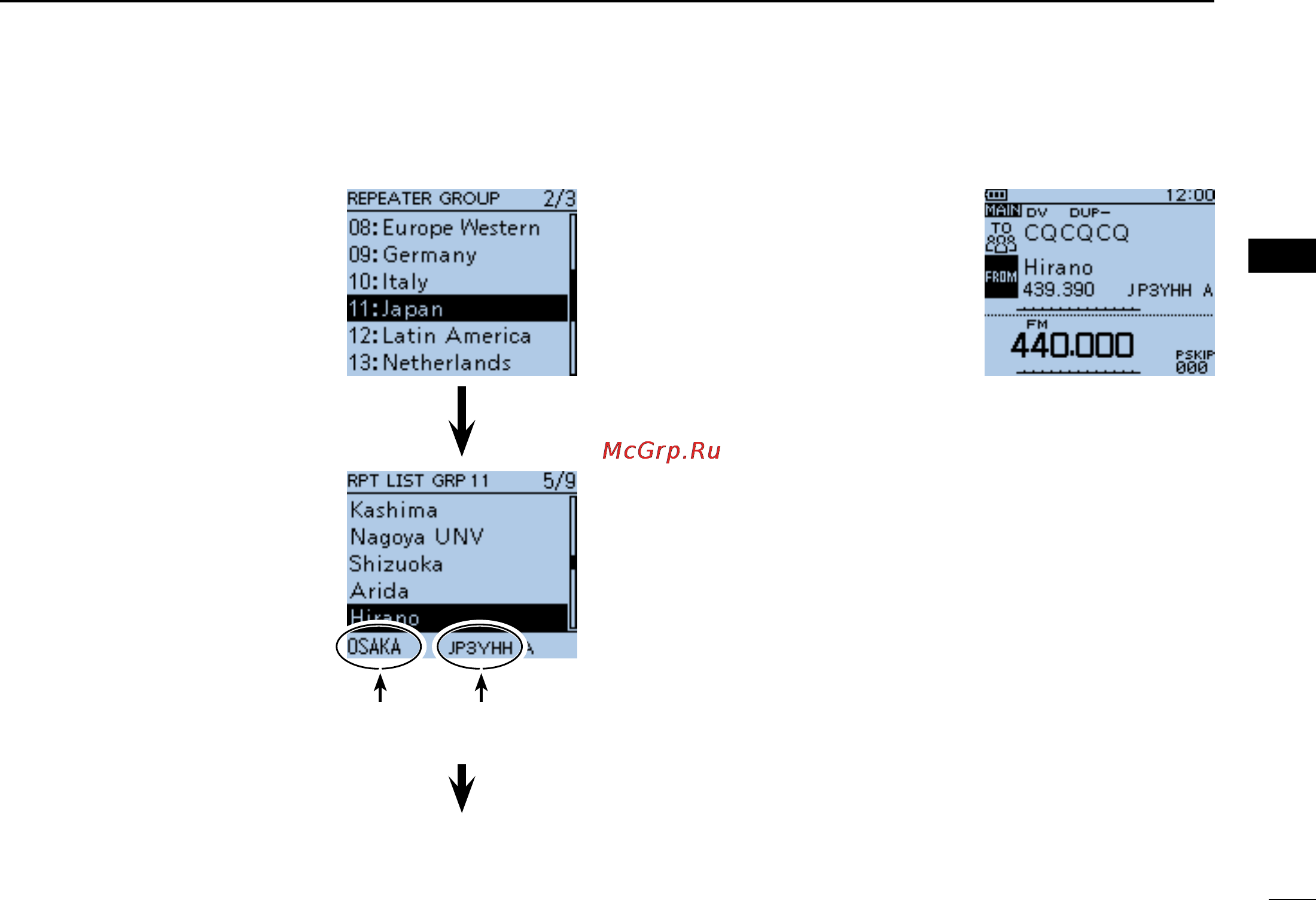

Push D-pad( e ) to select the
repeater group where your
access repeater is listed, and
then push D-pad(Ent).
•Example:“11:Japan”
Push D-pad( r ) to select your
access repeater, and then
push D-pad(Ent).
•Example:“Hirano”
If the selected repeater name t
is displayed in “FROM” on
the DR mode screen, the ac-
cess repeater setting is com-
pleted.
Completed
•Whenyouselectjusttherepeatername,therepeatercall
sign, its frequency, duplex setting, frequency offset and
Gateway call sign are automatically set.
•Therepeaterlist,describedinthismanual,maydifferfrom
your transceiver’s preprogrammed list.
Repeater area
Repeater
call sign
Go to step t
Completed
