MAKING A SIMPLEX CALL
New2001
7
MAKING A SIMPLEX CALL

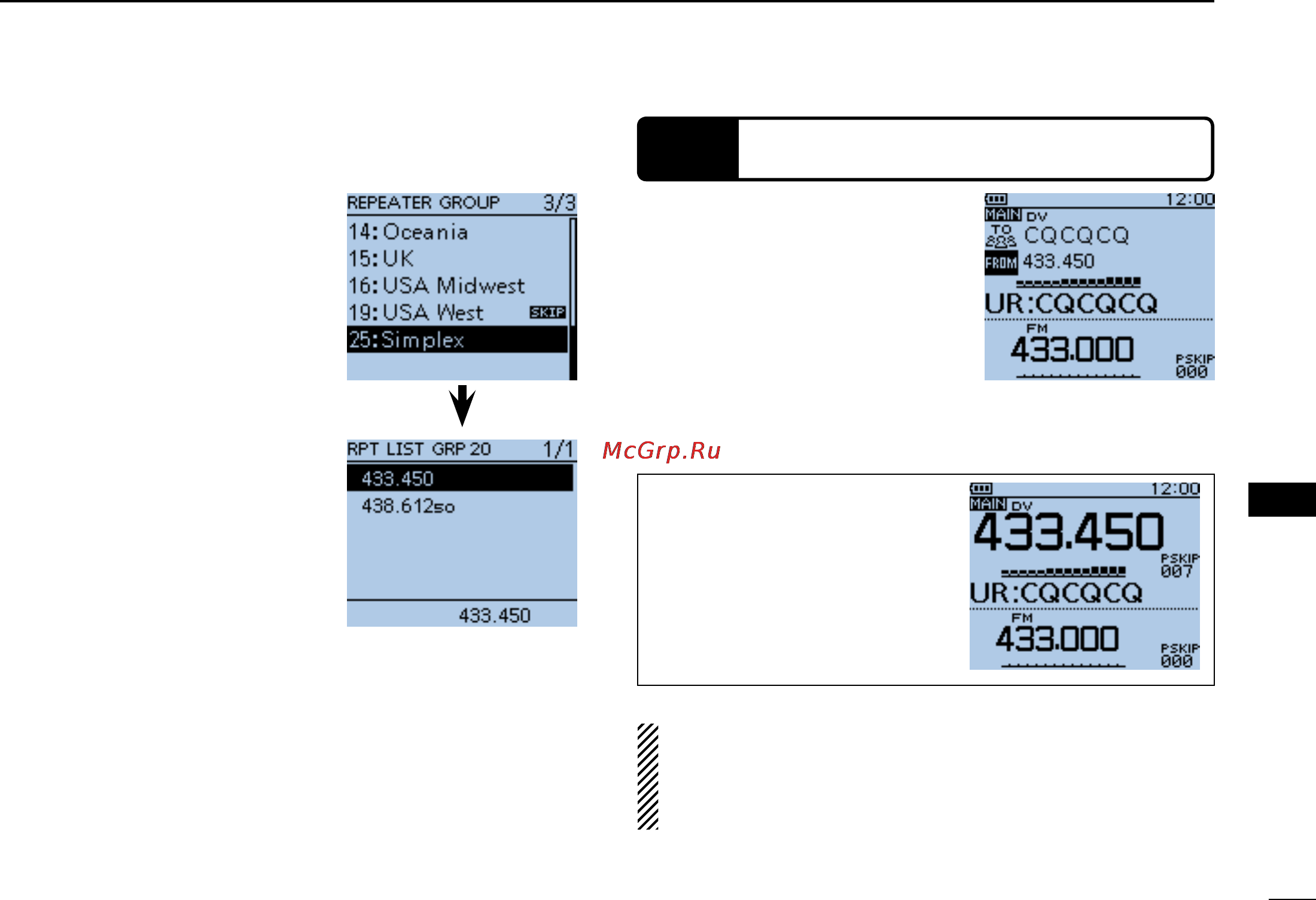

Push D-pad( e ) to select “25:
Simplex,” and then push D-
pad(Ent).
Push D-pad( r ) to select
“433.450,” and then push
D-pad(Ent).
•“433.450” is displayed in
“FROM.”
•“CQCQCQ”isdisplayedin“TO.”
- If a station call sign is set in
“TO”, select “Local CQ” in the
TO SELECT screen to set
“TO” to “CQCQCQ.”
STEP 2
Hold down [PTT] to transmit
While holding down [PTT], q
speak at your normal voice
level.
•TheTX/RXindicatorlightsred.
•The S/RF meter shows the
transmit output power level.
Release [PTT] to receive. w
Transmitting
Whenyoumakeasimplexcallin
the VFO mode, the LCD chang-
es as shown to the right.
NOTE: The simplex frequencies can be changed in the
MENU screen. See the PDF type Advanced Instruction
section9formoredetails.
(MENU > DV memory > Repeater List)
