ACCESS THE REPEATER

New2001 New2001

STEP 3

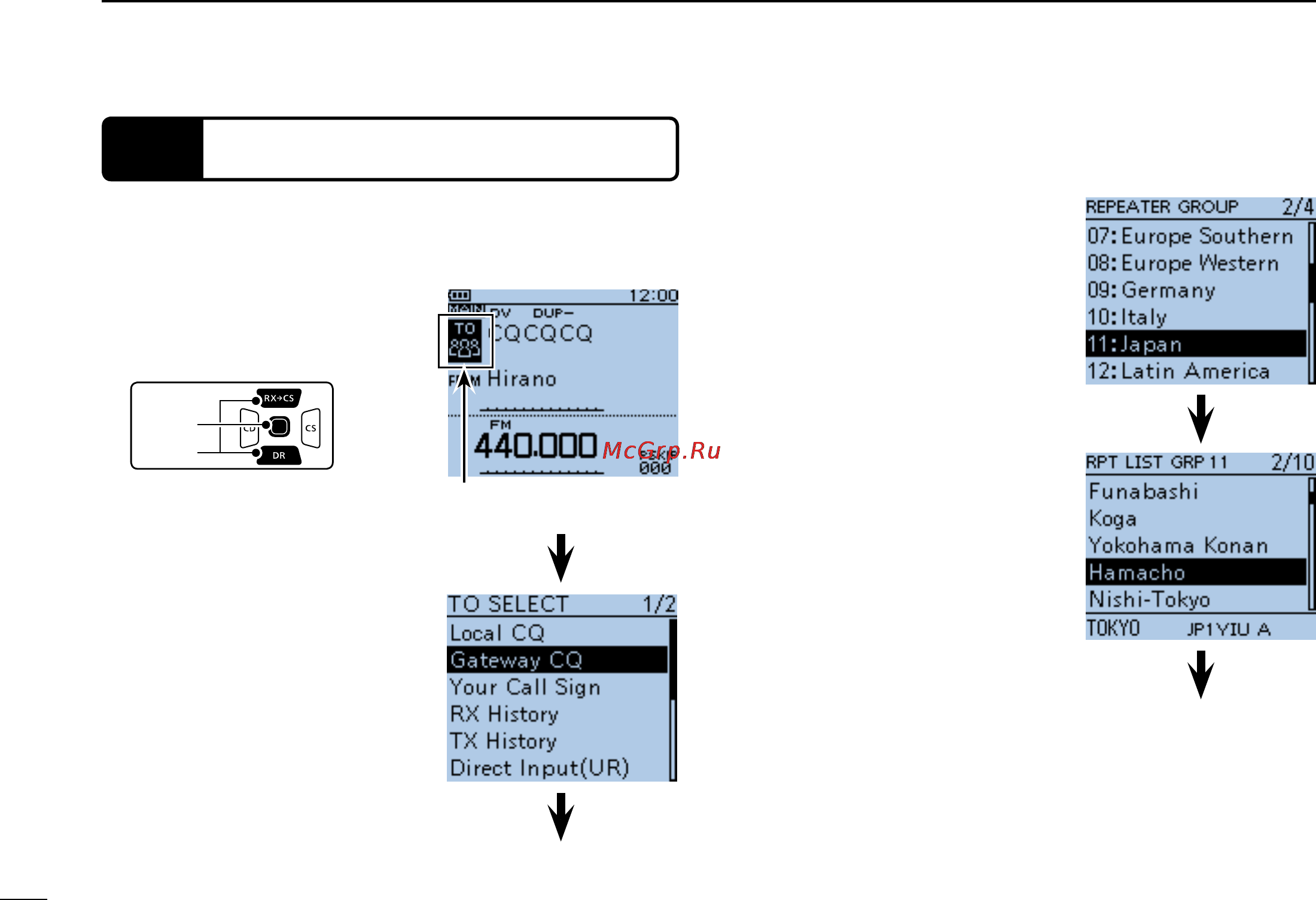

Select the Destination repeater (“TO”)

Push D-pad( q ) to select “TO”

(Destination repeater), and

then push D-pad(Ent).

D-pad

(�)

(Ent)

Push D-pad( w ) to select se-

lect “Gateway CQ,” and then

push D-pad(Ent).

Push D-pad( e ) to select the

repeater group where your

destination repeater is listed,

and then push D-pad(Ent).

 •Example:“11:Japan”

Push D-pad( r ) to select your

destination repeater, and

then push D-pad(Ent).

 •Example:“Hamacho”

Go to step e

Go to step t

“TO” is selected.

Go to step e

Example: Your destination repeater is Hamacho/Japan in the

repeater list.
