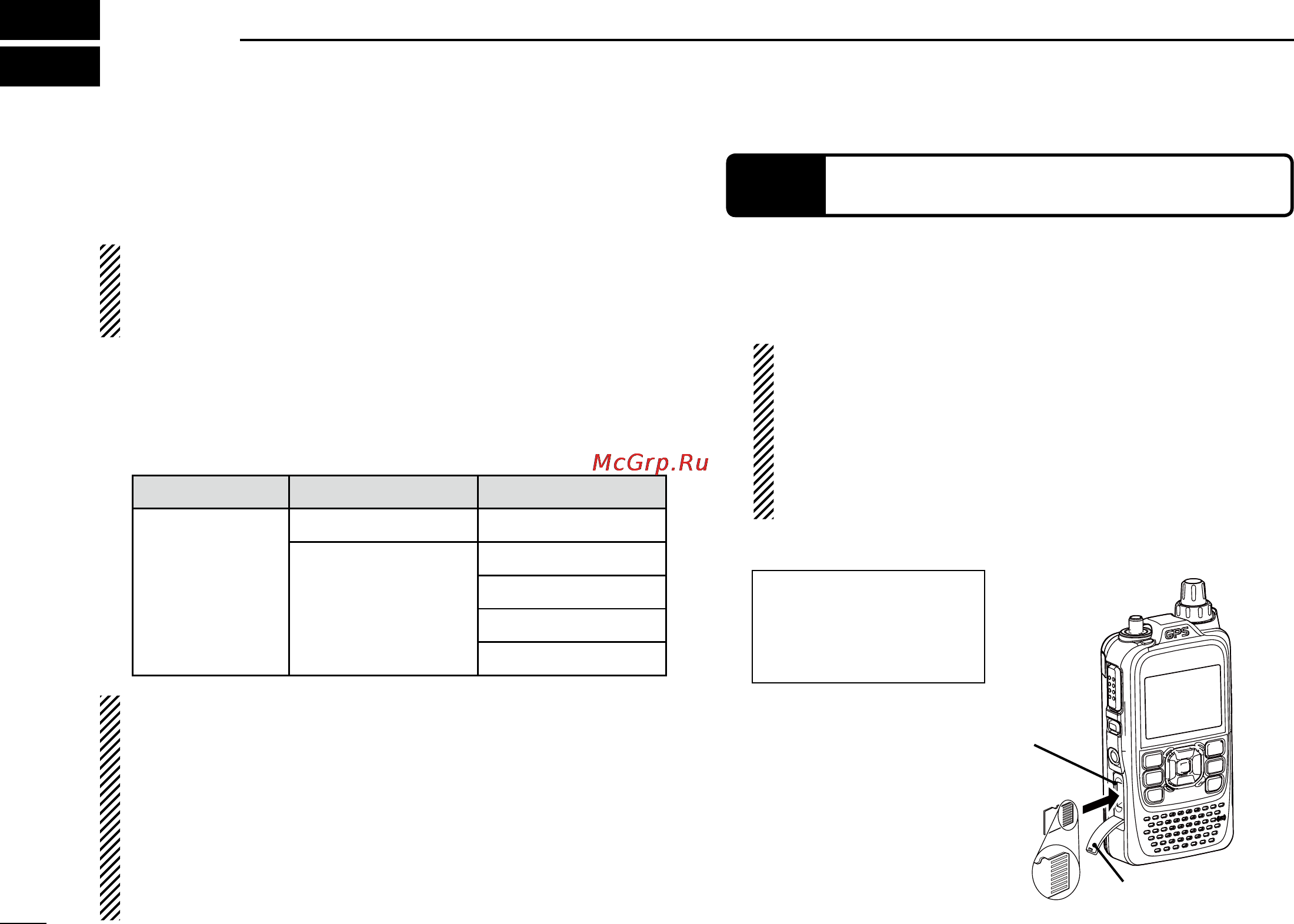

![Icom ID-51A [40/56] Recording a qso onto a microsd card](/views2/1074074/page40/bg28.png)
39
New2001New2001
RECORDING A QSO ONTO A microSD CARD
10
New2001
About ■ using a microSD card
Usable microSD cards D
A microSD or microSDHC card is not supplied with the
transceiver. Please purchase a card to use.
Read the instructions of the microSD card thoroughly be-
fore use.
IcomhascheckedthecompatibilityofthefollowingmicroSD
and microSDHC cards:
•Icomdoesnotguaranteethecard’sperformance.
(As of December 2012)
Maker Kind of the card Capacity
SanDisk
®
microSD 2 GB
microSDHC
4 GB
8 GB
16 GB
32 GB
BE CAREFUL! While reading or writing data from or to the
card; NEvER turn OFF the transceiver. It will corrupt the
data or damage the card.
Also be careful in the following cases:
•WhenusingthetransceiverwiththeBP-273batterycase,
and the batteries are near exhaustion.
•WhenusingthetransceiverwithanexternalDCpower
sourceandthebatterypackisnotattached,thentheex-
ternal power is turned OFF.
Turn OFF the transceiver. q
Lift OFF the [micro SD] slot cover on the side panel. w
With the terminals facing the front, insert the card into the e
slotuntilitlocksinplace,andmakesa‘click’sound.
BE CAREFUL!
•DO NOT touch the terminals.
•Toremovethecard,pushintoreleaseit,thencarefully
pull out the card.
•While reading or writing data from and to the card,
NEvER remove the card. It will corrupt the data or
damage the card.
Firmly close the [micro SD] slot cover. r
STEP 1
Inserting the microSD card
NEvER forcibly or in-
versely insert the card.
It will damage the card
and/or the slot.
[micro SD] slot
microSD card
Terminals facing
the front
Slot cover
