CALLING A DESTINATION STATION
6
CALLING A DESTINATION STATION

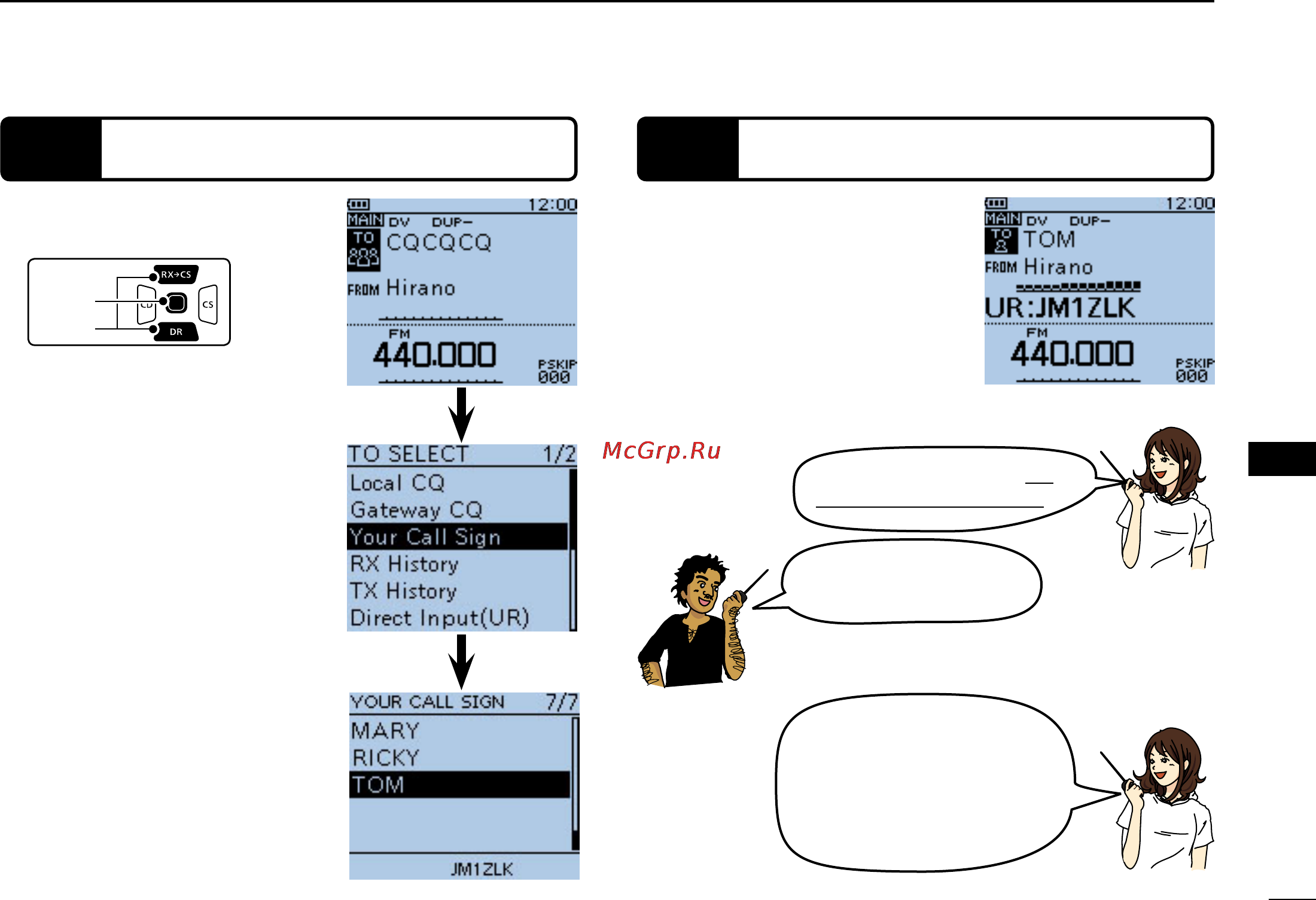

STEP 2
Set “TO” (Destination)
Push D-pad( q ) to select “TO,”
and then push D-pad(Ent).
Push D-pad( w ) to select
“Your Call Sign,” and then
push D-pad(Ent).
D-pad
(�)
(Ent)
STEP 3
Hold down [PTT] to transmit
While holding down [PTT],
speak into the microphone at
your normal voice level.
Transmitting
Push D-pad( e ) to select the
destination station, and then
push D-pad(Ent).
•Example:“TOM”
JG3LUK, this is JM1ZLK.
Hello, how are you?
JM1ZLK
(TOM)
JM1ZLK, this is JG3LUK lis-
tening on JP3YHH port A.
JM1ZLK, this is JG3LUK.
Thanks for the nice QSO and I
hope to talk to you again soon.
This is JG3LUK now clear of
the JP3YHH repeater.
•
•
•
JG3LUK
JG3LUK
< Communication example
with a destination station>
