Icom ID-51A [43/56] Recording a qso onto a microsd card
![Icom ID-51A [43/56] Recording a qso onto a microsd card](/views2/1074074/page43/bg2b.png)
New2001
42
10

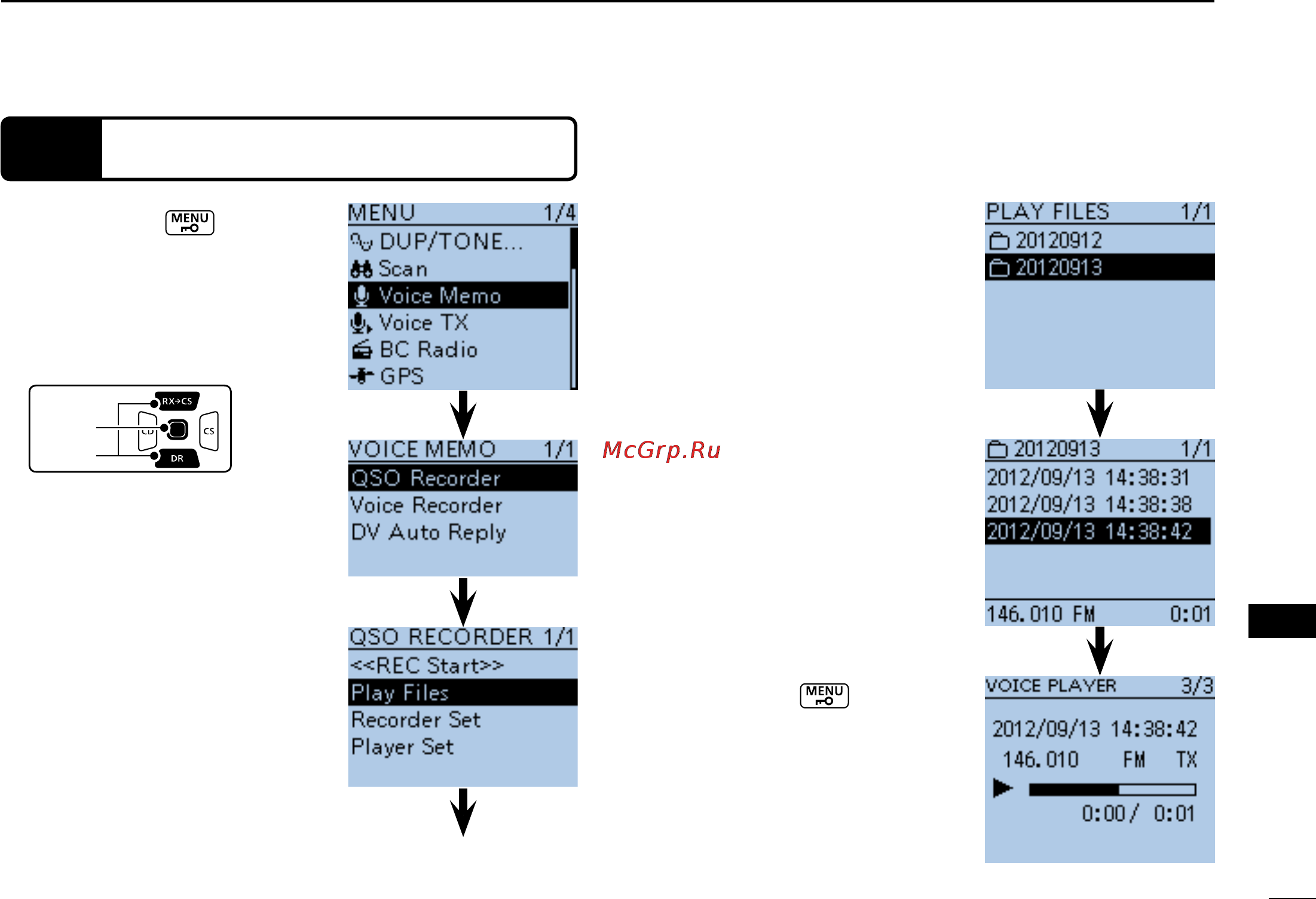

RECORDING A QSO ONTO A microSD CARD
New2001
10
RECORDING A QSO ONTO A
microSD CARD
STEP 4
Playing back the recorded audio
Push [MENU] y or [CLR]
tostoptheplayback.
•Thelelistisautomaticallydis-
played.
q Push [MENU] to enter
the Menu screen.
Push D-pad( w ) to select the
root item (Voice Memo), and
then push D-pad(Ent) to go to
the next level.
D-pad
(�)
(Ent)
( MENU > Voice Memo >
QSO Recorder > Play Files)
Refer to the menu sequence e
shown directly above and
push D-pad() to select, and
then push D-pad(Ent) to en-
ter, one or more times until
the last screen is displayed.
Push D-pad( r ) to select the
folder that contains the file
you want to play, and then
push D-pad(Ent).
•The folder name is composed
of the year (4 digits), the month
and the day (2 digits each).
Push D-pad( t ) to select the
file that you want to play, then
push D-pad(Ent) to play it
back.
•TheVOICE PLAYER screen is
displayed, and the file starts to
playback.
Go to step r
