GPS LOGGER FUNCTION
12
New2001
The GPS Logger function allows you to store the GPS position
data (Latitude, Longitude, Altitude, Positioning state, Course,
Speed and Date) onto a microSD card, as your route.
Ifyouusethisfunctionwhiledriving,youcancheckyourdriv-
ing course on a mapping software.
NOTE:
The GPS logger function requires a microSD card.
•Seep.39formoredetails.

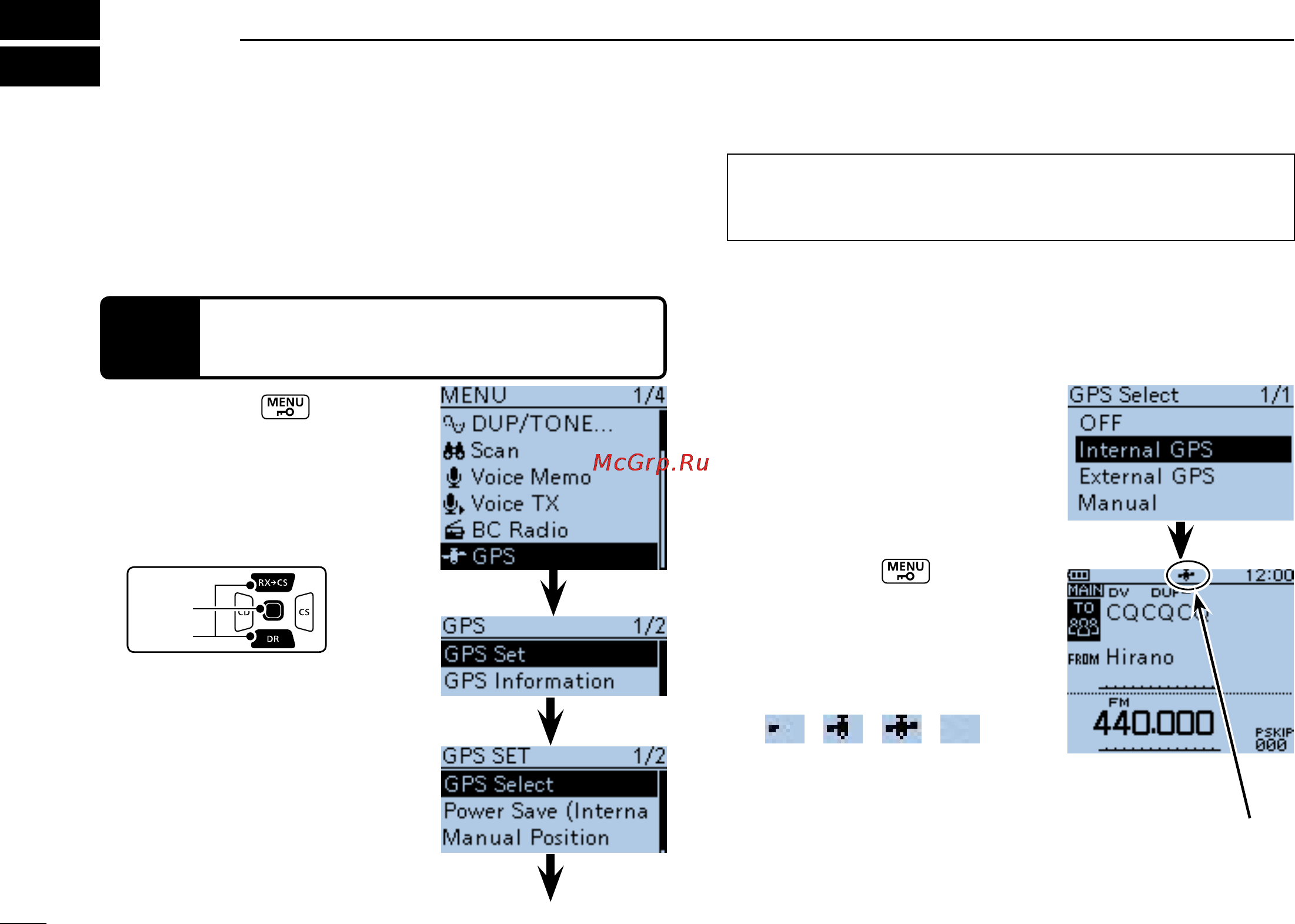

q Push [MENU] to enter
the Menu screen.
Push D-pad( w ) to select the
root item (GPS), and then
push D-pad(Ent) to go to the
next level.
D-pad
(�)
(Ent)
( MENU > GPS > GPS Set>
GPS Select)
Refer to the menu sequence e
shown directly above and
push D-pad() to select, and
then push D-pad(Ent) to en-
ter, one or more times until
the last screen is displayed.
Push D-pad( r ) to select “In-
ternal GPS.”
t Push [MENU]
to exit the
Menu screen.
•The GPS icon blinks when re-
ceiving data, as illustrated be-
low, and stops blinking when
valid data is received.
➝ ➝ ➝
- If “Manual” is selected, the icon
does not appear.
•It maytakeonlya fewseconds
to receive, but depending on the
environment, it may take a few
minutes. If you have difficulties
receiving, we recommend that
you try a different location.
STEP 1
Receiving GPS data from the internal
GPS receiver
Go to step r
Blinks
