CAPTURING A CALL SIGN
New2001
3
CAPTURING A CALL SIGN
New2001
STEP 2
Hold down [PTT] to transmit
Hold down for 1 second.
•Afterreleasing,beepssound,and
the station call sign is announced if
the RX>CS Speech function is set
to ON in the MENU screen.
(MENU > SPEECH > RX>CS SPEECH)
Blinksafterselect-
ing a call sign.
NOTE:
•IfyouwanttoselectanothercallsignintheRXhistory,
rotate [DIAL] while holding down
.
•Whenareceivedsignalisweak,DRmodescanningor
the power save is ON, the call sign may not be received
correctly. In that case, “--------” appears, an error beep
sounds,andaquickreplycallcannotbemade.
While holding down [PTT], q
speak at your normal voice
level.
Transmitting
Push w or [CLR]
to
return to the previous call sign
setting.
Beeps
STEP 1

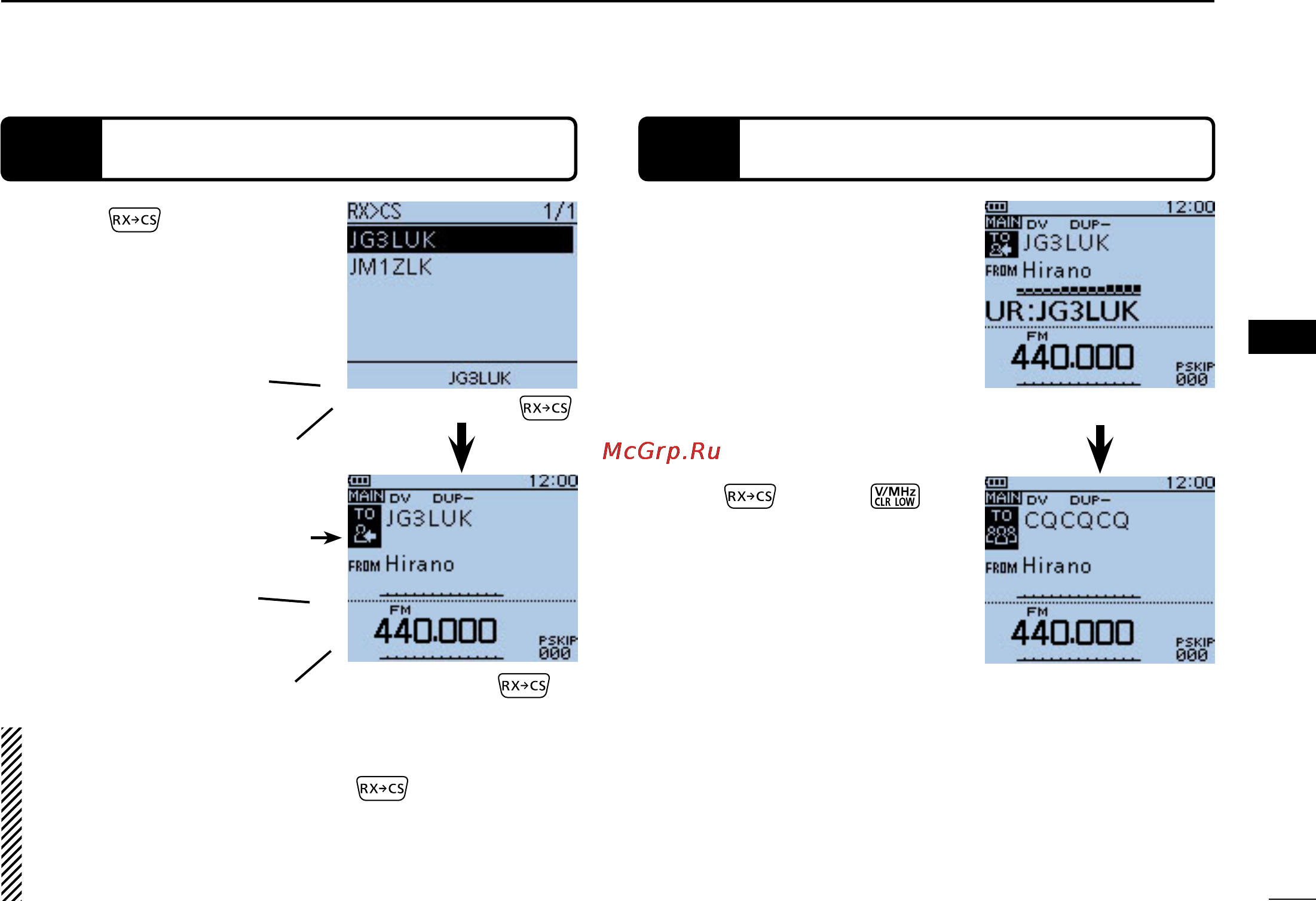

Set the received call sign to the destination
While holding down .
Beeps
After releasing .
JG3LUK
Return to the previous
screen
