ACCESS THE REPEATER

If the selected repeater name t

in step r is displayed in “TO”

on the DR mode screen, the

destination repeater setting is

completed.

Completed

Hold down [PTT] for approxi- q

mately 1 second to access

the repeater.

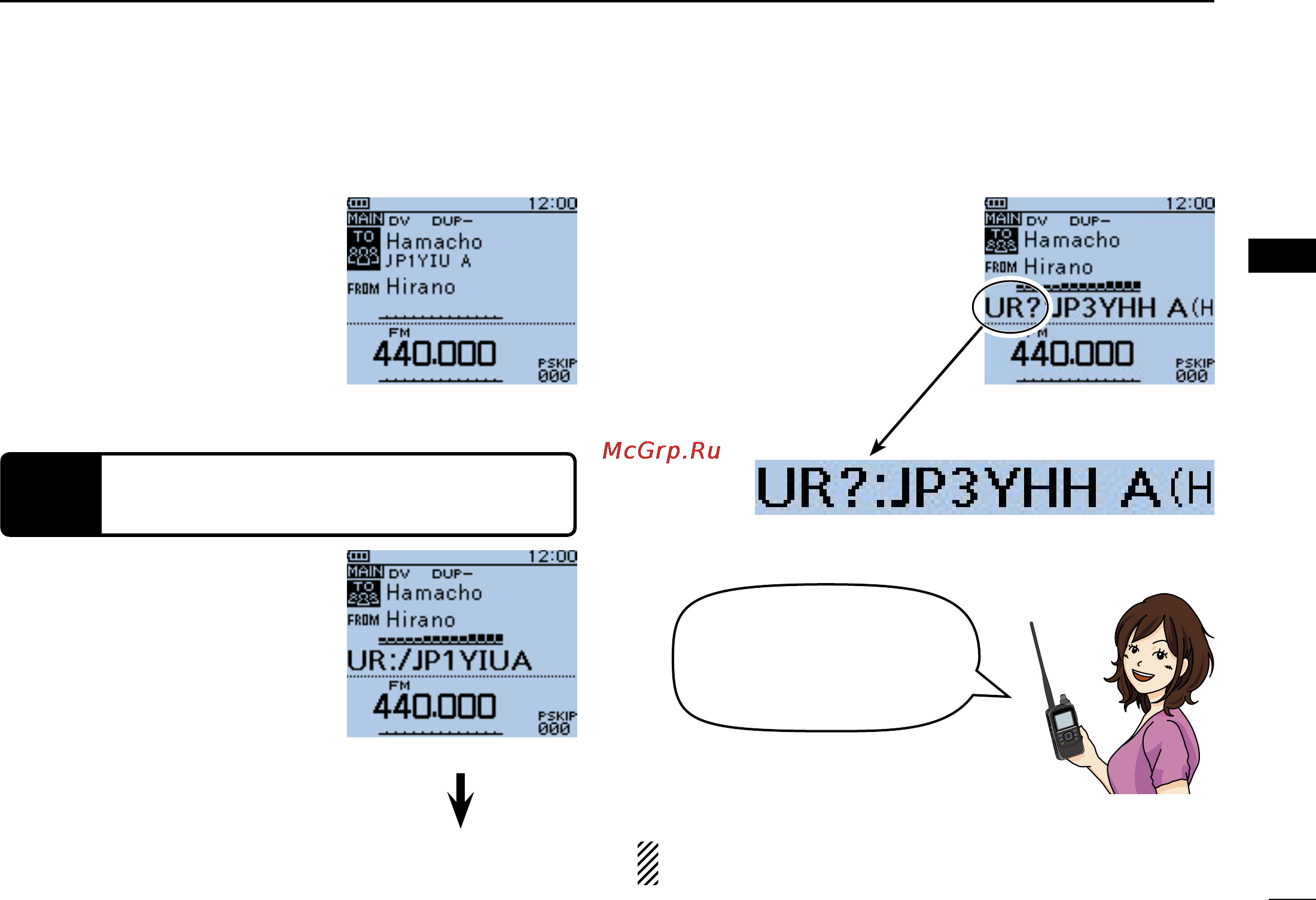

If you get a reply call, or “UR?” w

appears on the LCD within 3

seconds, your signal reached

your access repeater and your

call was successfully sent from

your destination repeater.

Transmitting

Now, you can make calls

to various repeaters by

changing the “TO” setting!

STEP 4

Check whether you can access the re-

peater

NOTE: See page 35 for status indications after a reply is

received.

Go to step w

Successfully sent!
