2-5

ASUS RS500A-E10 Series

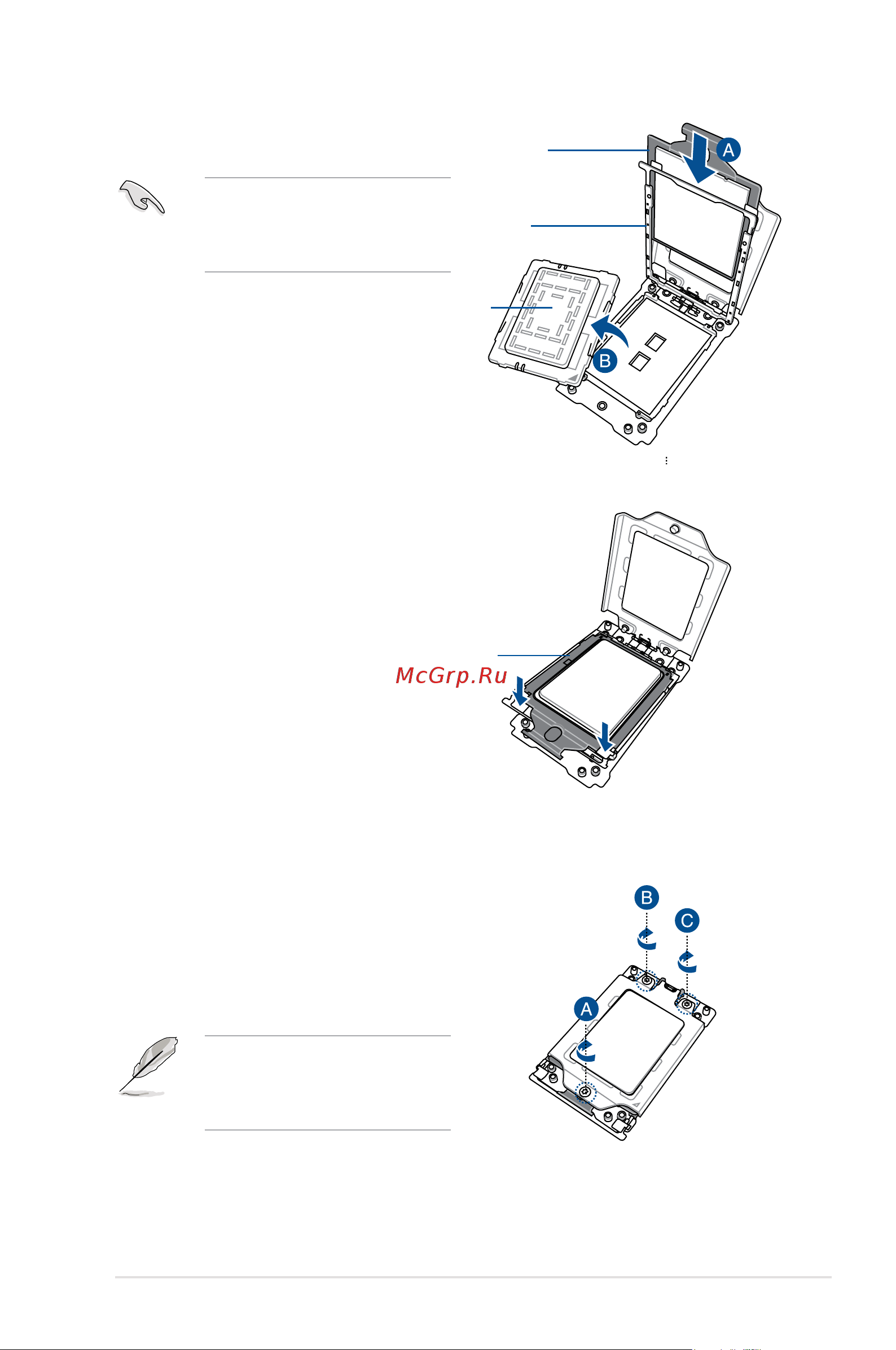

6. Slide the carrier frame with CPU into the

rail frame, then remove the PnP cap.

The carrier frame with CPU fits in only

one correct orientation. DO NOT force

the carrier frame with CPU into the

rail frame.

7. Gently push the rail frame just enough

to let it sit on top of the CPU socket.

8. Close the load plate just enough to let

it sit on top of the CPU, then secure

each screw one by one in the sequence

shown on the socket to completely

secure the load plate.

The load plate screws are

T20 models. A torque value of

16.1±1.2 kgf-cm (14.0±1.0 lbf-in) is

recommended.

Rail frame

Carrier frame

with CPU

PnP cap

Carrier frame

with CPU
