ASUS RS500A-E10 Series

4-9

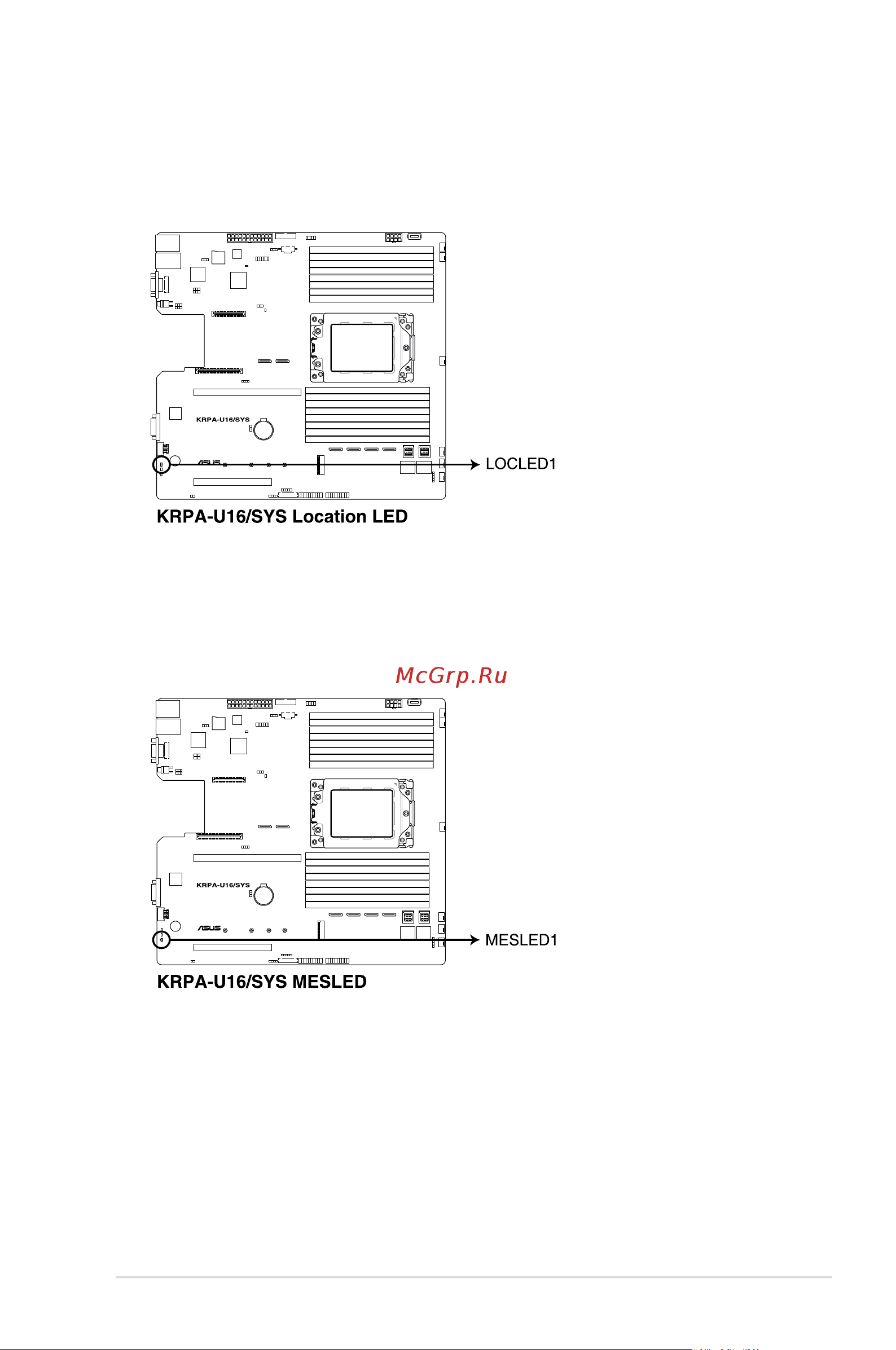

3. Location LED (LOCLED1)

This onboard LED lights up when the Location button on the server is pressed or when

triggered by a system management software. The Location LED helps visually locate

and quickly identify the server in error on a server rack.

4. Message LED (MESLED1)

This onboard LED lights up to red when there is a BMC event log is generated.
