Chapter 4: Motherboard Information

4-10

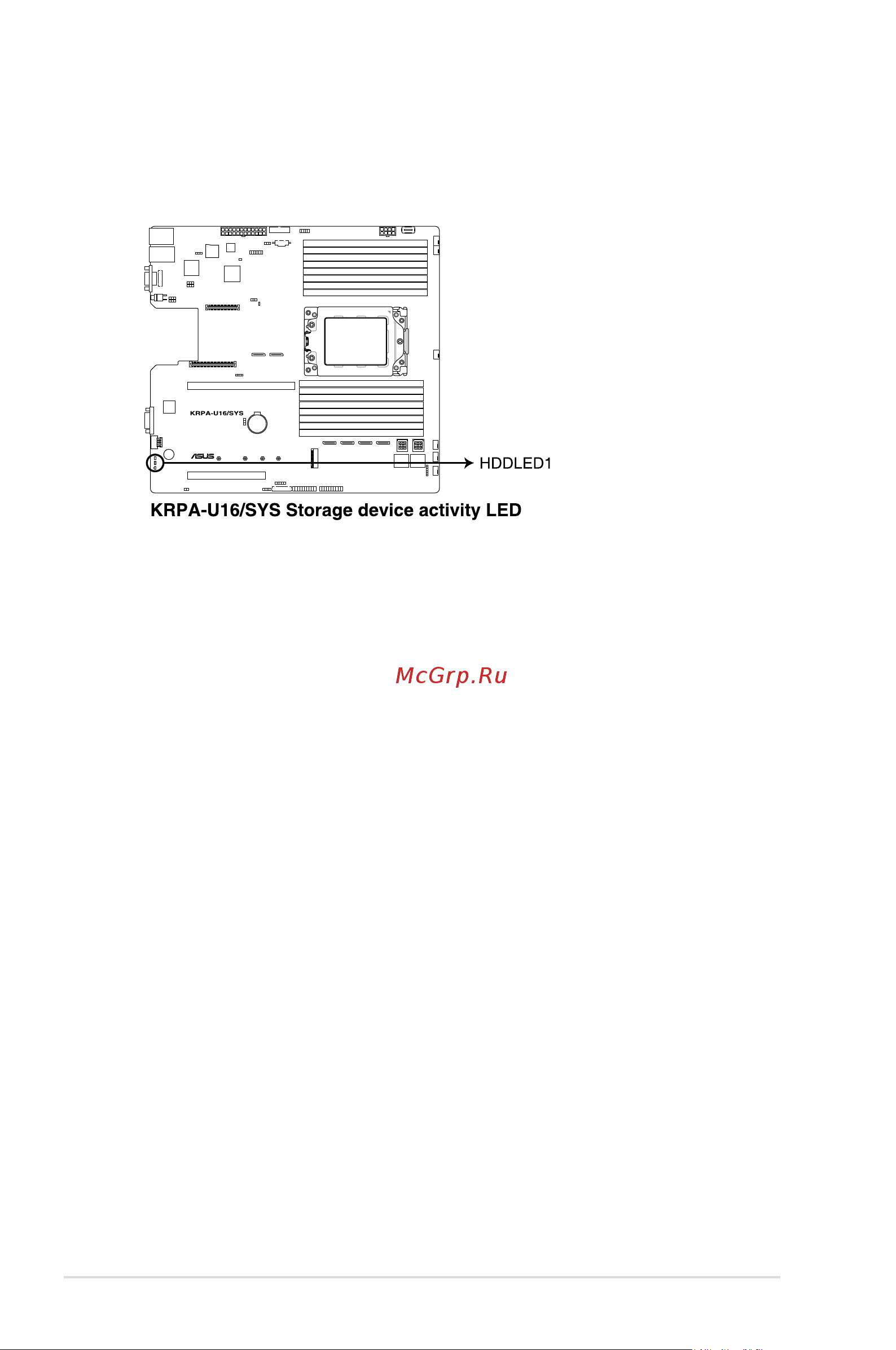

5. Hard disk activity LED (HDDLED1)

This LED is for the storage devices connected to the onboard SATA, or SATA/SAS

add-on card. The read or write activities of any device connected to the onboard SATA,

or SATA/SAS add-on card causes the rear panel LED to light up.
