ASUS RS500A-E10 Series

4-17

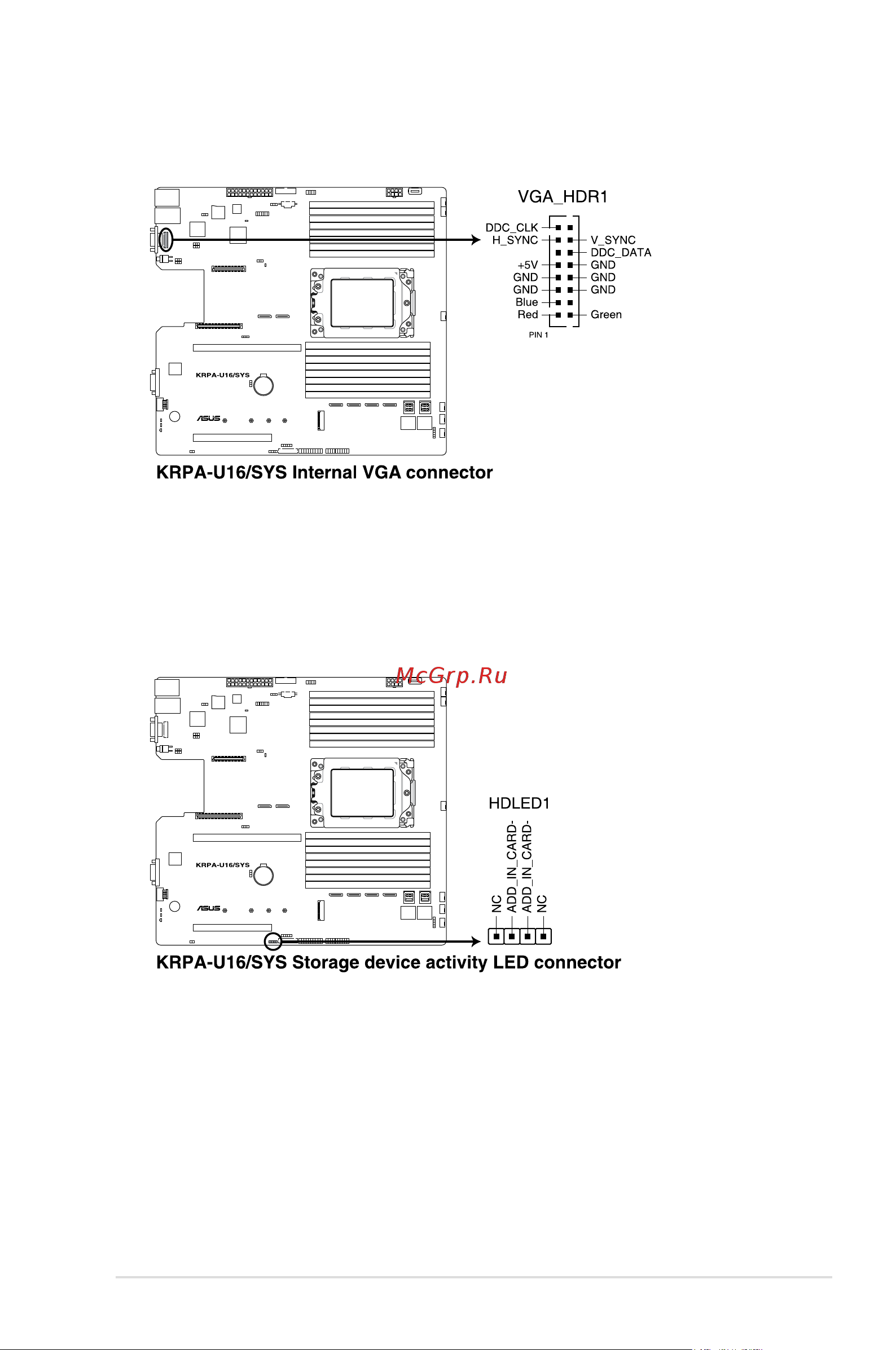

11. VGA connector (10-1 pin VGA_HDR1)

This connector supports the VGA High Dynamic-Range interface.

12. Hard disk activity LED connector (4-pin HDLED1)

This LED connector is for the storage add-on card cable connected to the SATA or

SAS add-on card. The read or write activities of any device connected to the SATA or

SAS add-on card causes the front panel LED to light up.
