Chapter 4: Motherboard Information

4-18

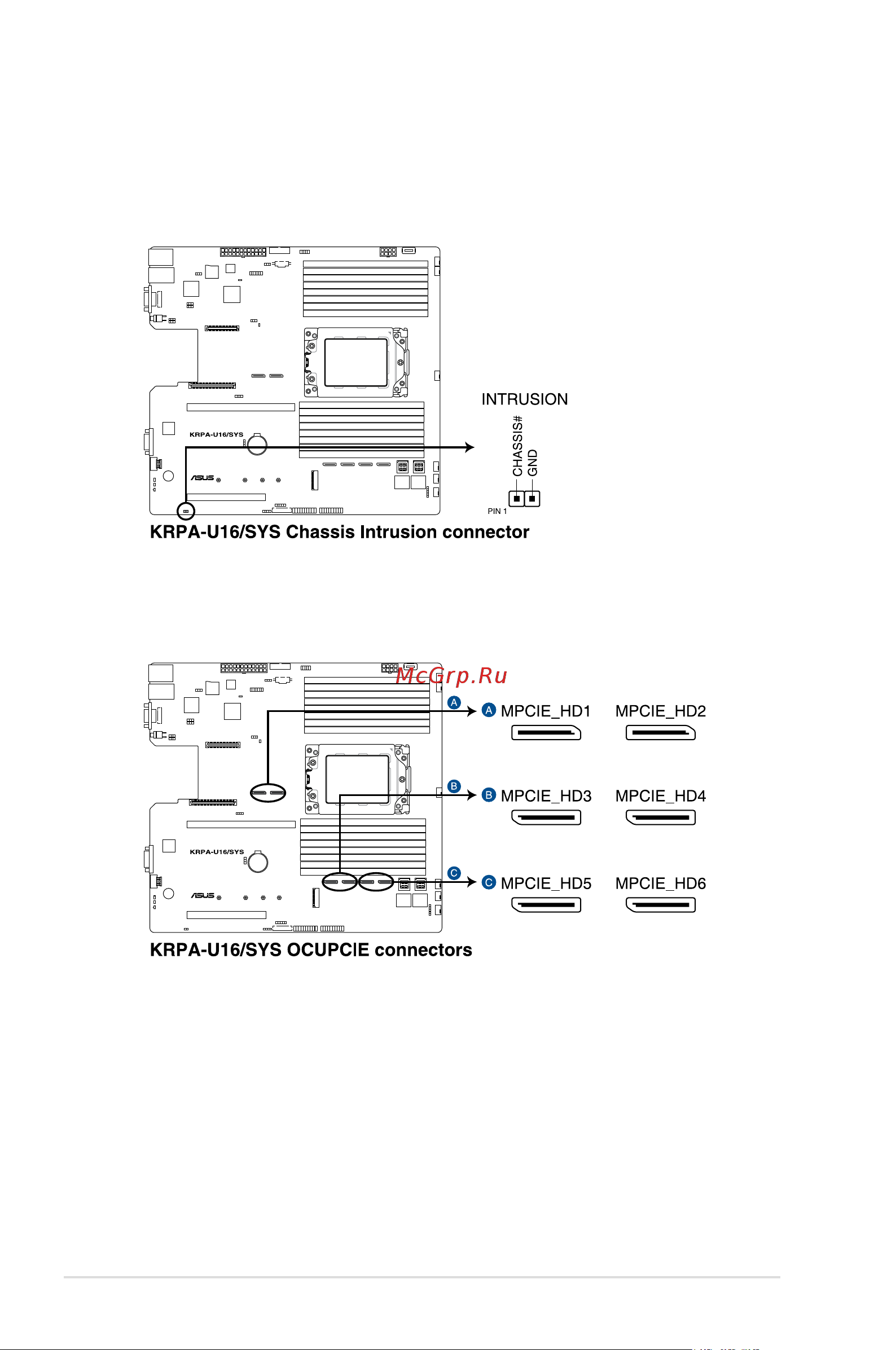

13. Chassis Intrusion connectors (2-pin INTRUSION1)

This lead is for the intrusion detection feature for chassis with intrusion sensor or

microswitch. When you remove any chassis component, the sensor triggers and sends

a high level signal to these leads to record a chassis intrusion event. The default setting

is short CASEOPEN and GND pin by jumper cap to disable the function.

14. OCUPCIE connectors (MPCIE_HD1-6)

Connects the PCIE signal to the NVME port on the backplane.
