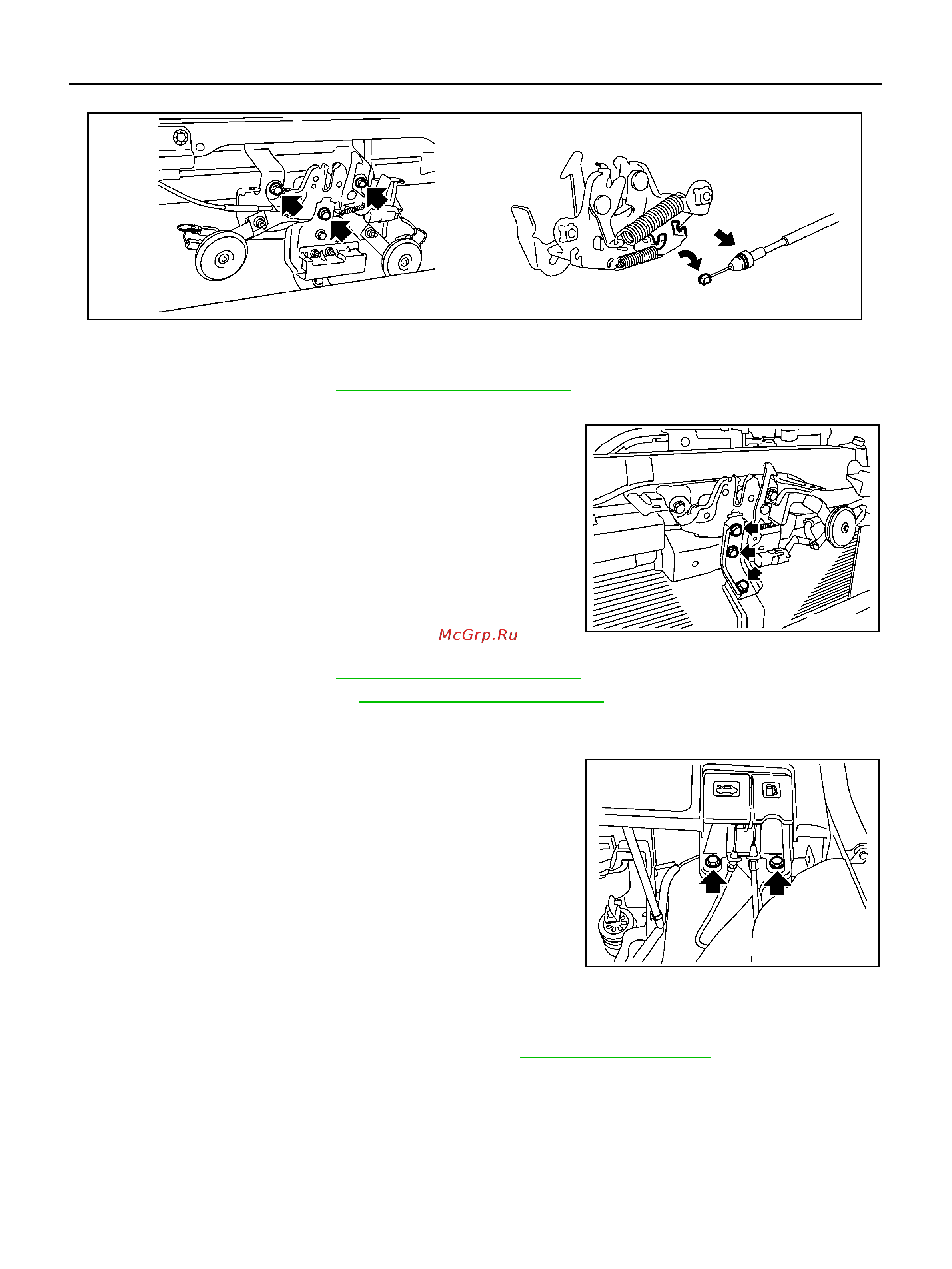

BL-10
HOOD
2. Remove hood lock bolts.
3. Remove hood lock cable from hood lock.
Hood Lock Mounting Reinforcement
1. Remove front bumper. Refer to EI-4, "Removal and Installation" .
2. Remove crash zone censor.
3. Remove bolts, and then remove hood lock mounting reinforce-
ment.
Hood Lock Cable
1. Remove front bumper. Refer to EI-10, "Removal and Installation" .
2. Remove fender protector. Refer to EI-14, "
Removal and Installation" .
3. Remove hood lock, and remove hood lock cable from hood lock.
4. Remove radiator core upper support and hood ledge clips, and then remove hood lock cable.
5. Remove hood opener on bottom right or left of instrument panel,
and then remove hood lock cable.
6. Remove grommet on lower dashboard, and pull out hood lock
cable from passenger room side.
CAUTION:
While pulling the cable, be careful not to damage (peel)
hood opener cable outer surface on edges of body through
hole.
INSTALLATION
● Perform installation in the reverse order of removal while being careful of the following items while per-
forming the work.
● After installing, perform hood fitting adjustment. Refer to BL-7, "Fitting Adjustment" .
Hood Lock Mounting Reinforcement
● When installing hood lock mounting reinforcement, loosen hood bolts, and then tighten bolts in the order
showninthefigure.
PIIB2532J
PIIB5569J
PIIB2534J
