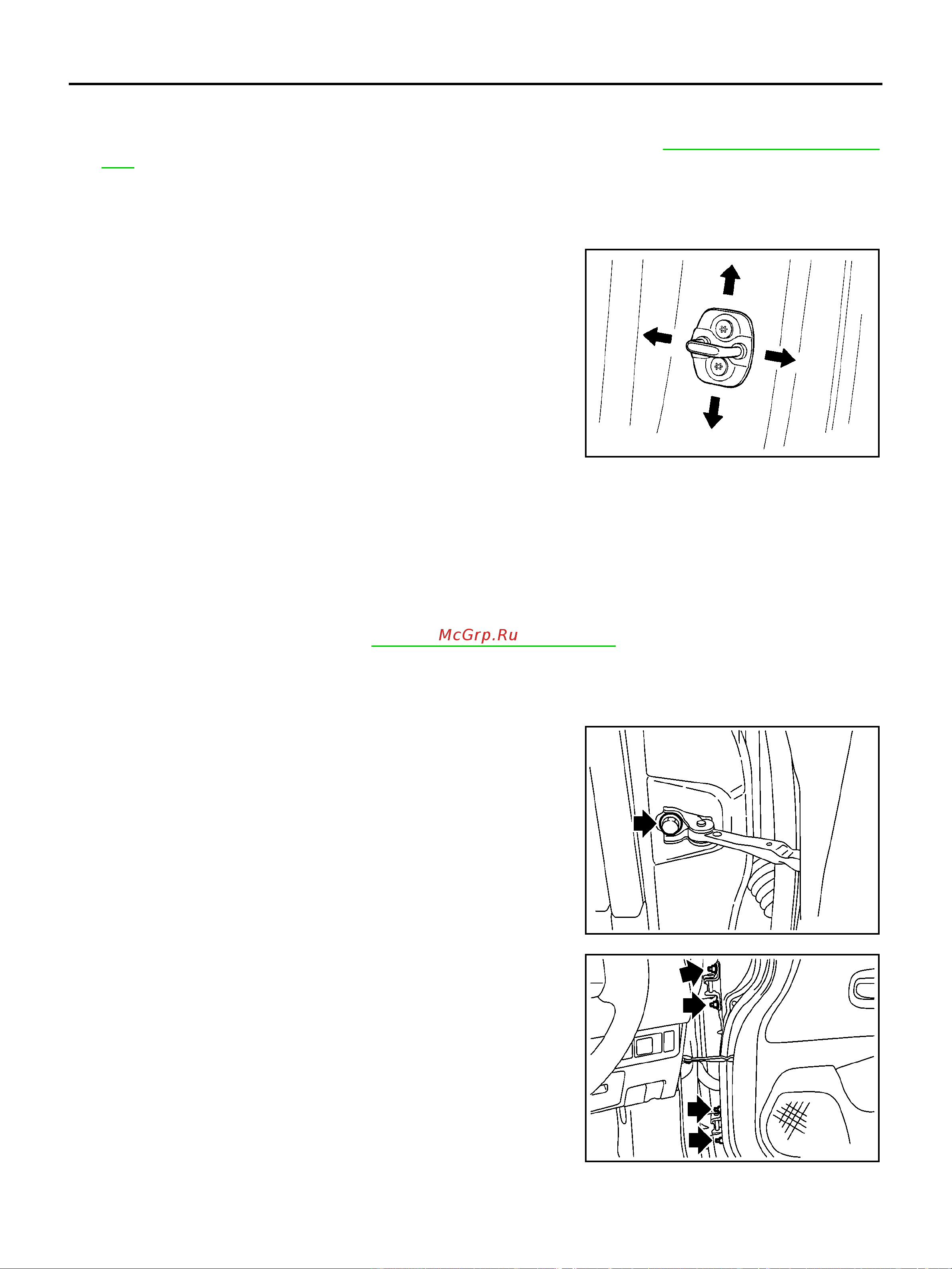

BL-196
DOOR
REAR DOOR
Longitudinal Gap and Front End Height Difference Adjustment
1. Remove center pillar upper garnish and center pillar lower garnish. Refer to EI-26, "Removal and Installa-
tion" .
2. Working from inside and outside vehicle, loosen bolts and nuts, and then open rear door, and adjust while
raising rear door by rear edge.
STRIKER ADJUSTMENT
Adjust the striker so that it becomes parallel with the lock inserting
direction.
Removal and Installation
BIS000KZ
CAUTION:
● During removal and installation of the door assembly, use a jack to support the door. Place a shop
cloth or other suitable material onto the jack plate to protect the door and body from damage.
● After removal and installation of the door assembly, always adjust the fit.
● Check hinge rotating part for poor lubrication. If necessary, apply “Body Grease”.
REMOVAL OF FRONT DOOR
1. Remove dash side finisher. Refer to EI-20, "Removal and Installation" .
2. Dissconnect front door harness connectors.
3. Remove harness gromet, and then remove front door harness conectors.
4. Remove connectors and harness clamps in front door, and then pull out harness from front door.
5. Remove check link bolts.
6. Remove hinge nuts on the door and then the door assembly.
INSTALLATION
Install in the reverse order of removal.
PIIB2804J
PIIB2865J
PIIB2866J
