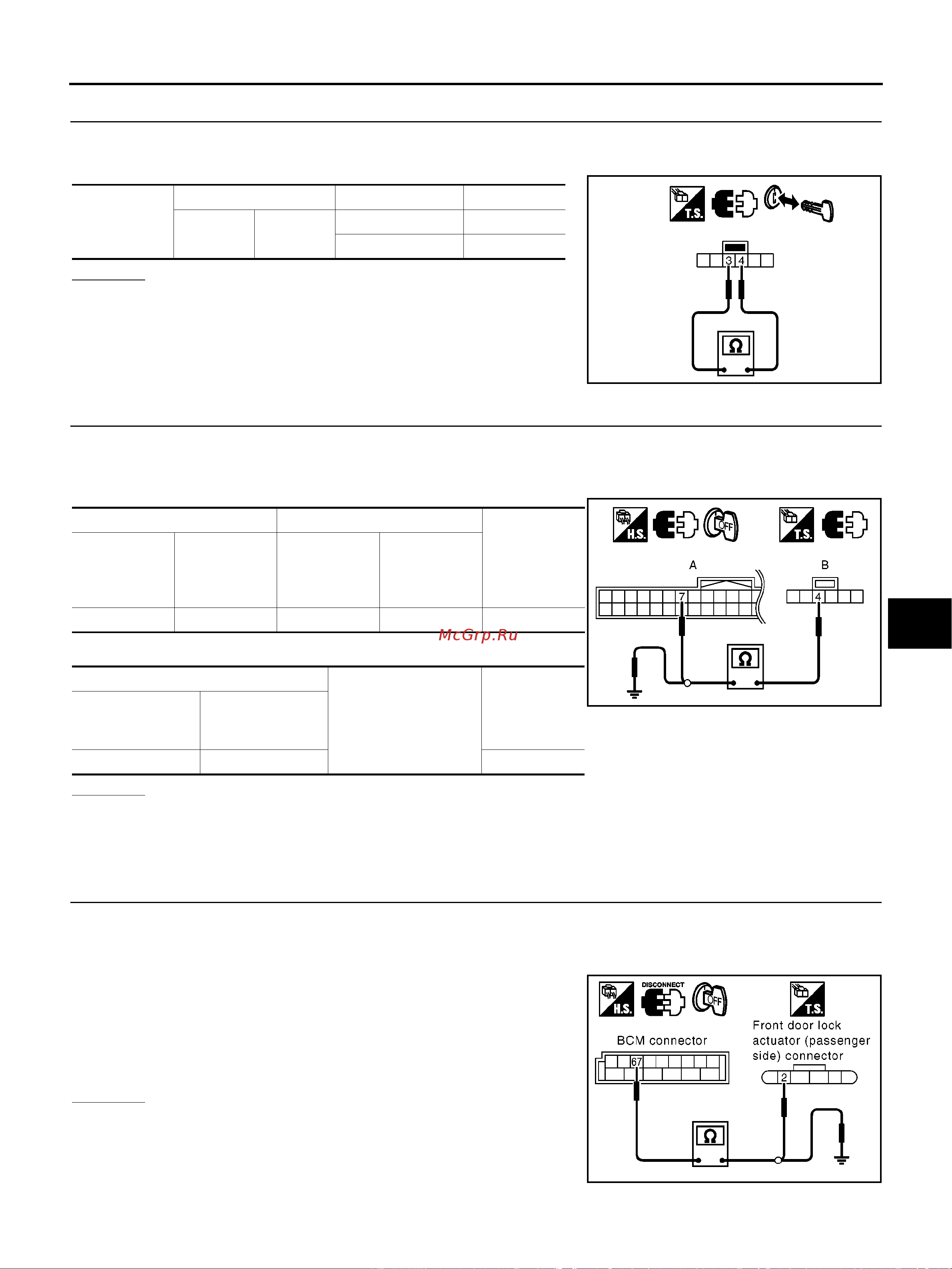

3. KEY SWITCH OPERATION INSPECTION
1. Insert mechanical key into ignition knob.
2. Check continuity between key switch and ignition knob switch connector M34 terminal.
OK or NG
OK >> GO TO 4.
NG >> Replace key switch.
4. KEY SWITCH CIRCUIT INSPECTION
1. Disconnect Intelligent Key unit connector.
2. Check continuity between Intelligent Key unit connector and key switch and ignition knob switch connec-
tor.
3. Check continuity between key switch connector and ground.
OK or NG
OK >> Key switch is OK.
NG >> Repair or replace harness between Intelligent Key unit and key switch and ignition knob switch.
Check Door Lock Actuator Circuit
BIS000IM
1. CHECK HARNESS CONTINUITY
1. Disconnect BCM connector.
2. Check continuity between BCM connector M59 terminal 67 and front door lock actuator (passenger side)
connector D28 terminal 2.
3. Check continuity between BCM connector M59 terminal 67 and
ground.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness.
Key switch
and ignition
knob switch
Terminal Condition Continuity
34
Key is inserted Yes
Keyisremoved No
MIIB1372E
AB
Continuity
Intelligent Key
unit connector
Terminal
Key switch
and ignition
knob switch
connector
Terminal
M60 7 M34 4 Yes
B
Ground
Continuity
Key switch and
ignition knob
switch connector
Terminal
M34 4 No
MIIB1373E
67 – 2 : Continuity should exist.
67 – Ground : Continuity should not exist.
MIIB0412E
