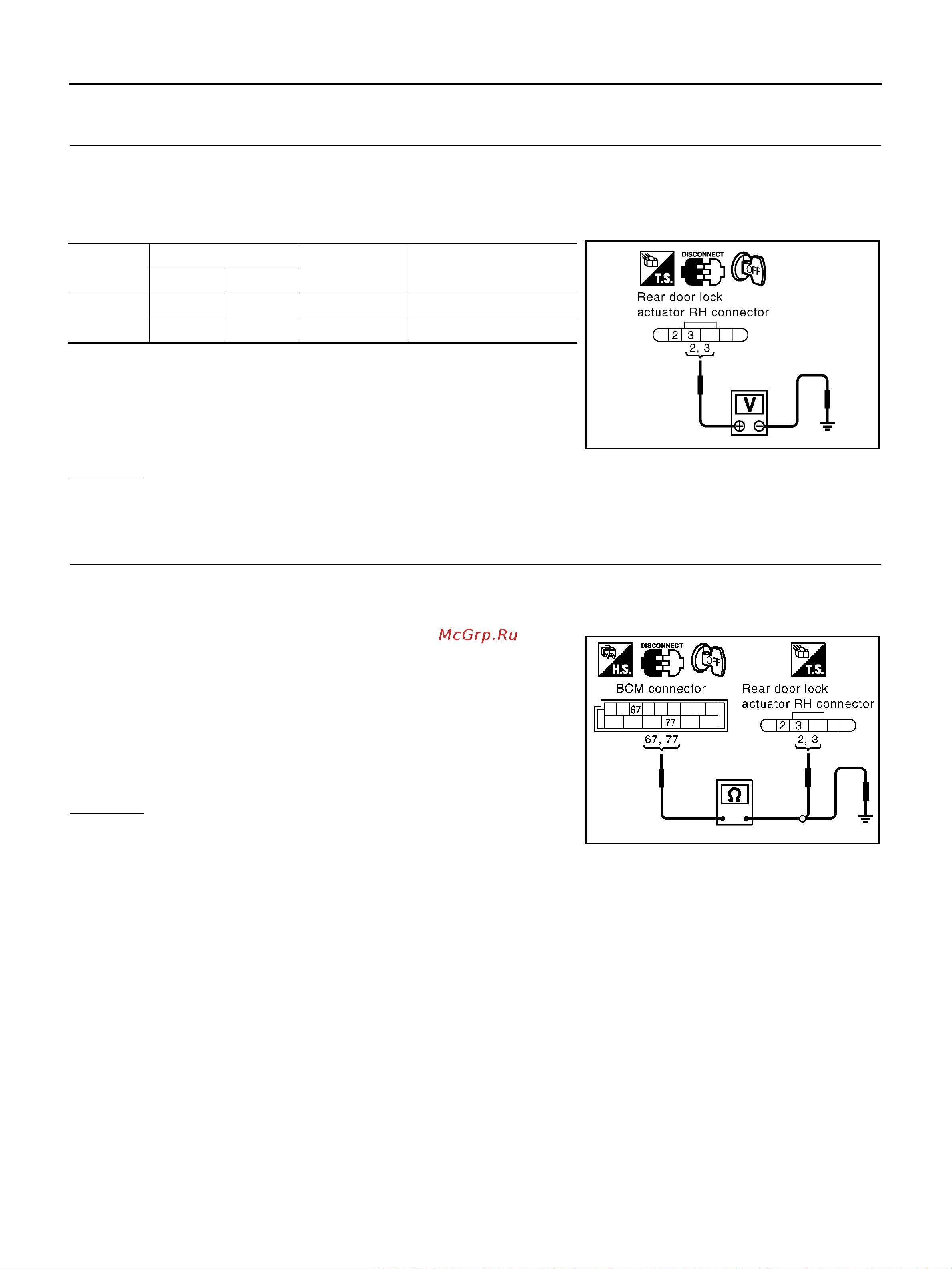

BL-94
POWER DOOR LOCK — SUPER LOCK —
REAR RH SIDE
1. CHECK DOOR LOCK ACTUATOR
1. Turn ignition switch OFF.
2. Disconnect rear door lock actuator RH connector.
3. Operate door lock / unlock switch, check voltage between rear door lock actuator RH connector and
ground.
OK or NG
OK >> Replace rear door lock actuator RH.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Disconnect BCM connector.
2. Check continuity between BCM connector M59 terminals 67, 77 and rear door lock actuator RH connector
D65 terminals 2, 3.
3. Check continuity between BCM connector M59 terminals 67, 77
and ground.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness.
Connector
Terminals (Wire color)
Condition
Voltage (V)
(Approx.)
(+) (-)
D65
2
Ground
Unlock 0 → Battery voltage → 0
3Lock0→ Battery voltage → 0
MIIB0326E
67 – 2 : Continuity should exist.
77 – 3 : Continuity should exist.
67 – Ground : Continuity should not exist.
77 – Ground : Continuity should not exist.
MIIB0327E
