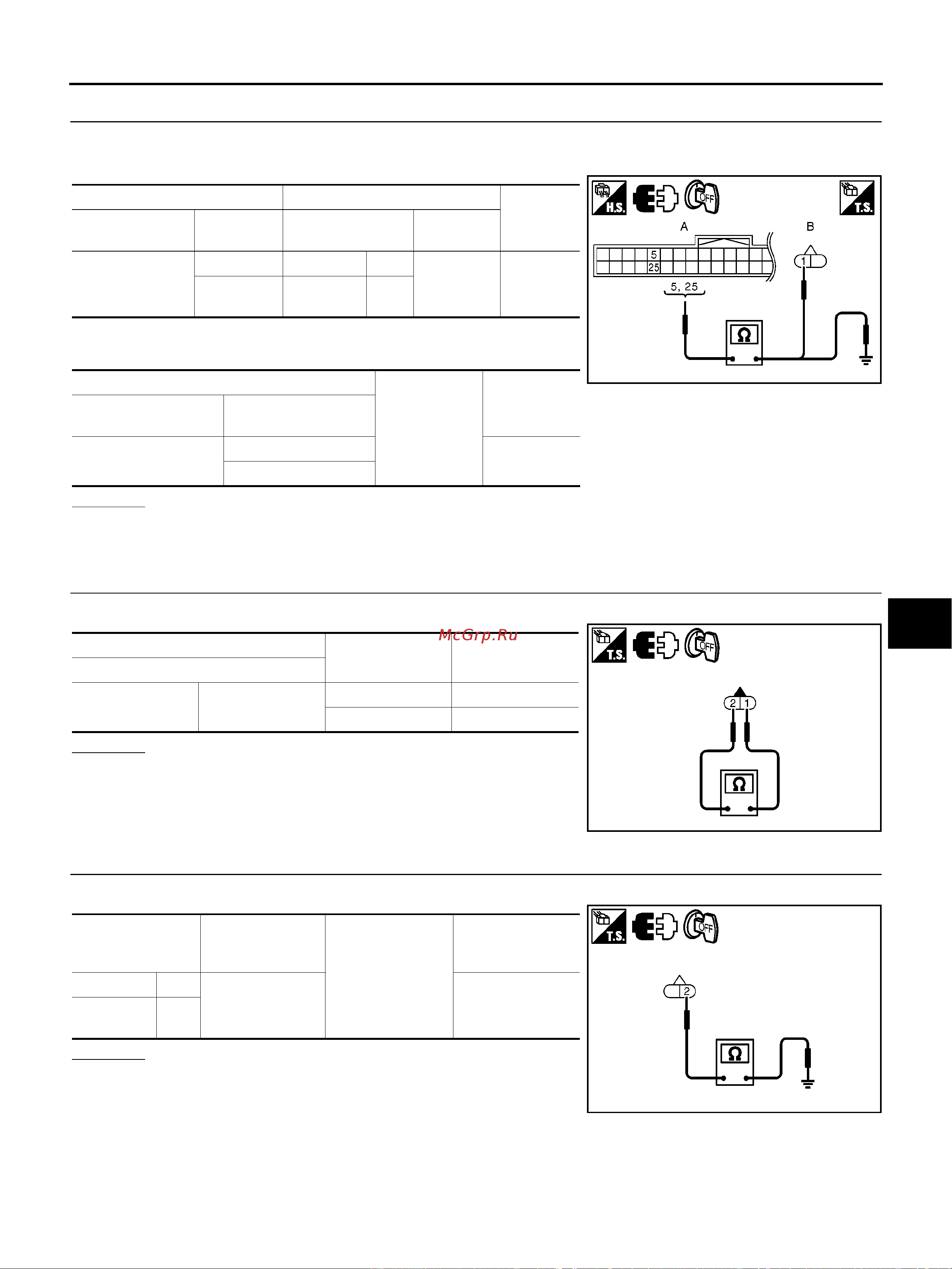

INTELLIGENT KEY SYSTEM
BL-171
C
D
E
F
G
H
J
K
L
M
A
B
BL
2. CHECK DOOR REQUEST SWITCH CIRCUIT
1. Disconnect Intelligent Key unit and front door request switch connector.
2. Check continuity between Intelligent Key unit connector and front door request switch connector.
3. Check continuity between Intelligent Key unit connector and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between Intelligent Key unit and front door request switch.
3. CHECK DOOR REQUEST SWITCH OPERATION
Check front door request switch.
OK or NG
OK >> GO TO 4.
NG >> Replace malfunction front door request switch.
4. CHECK DOOR REQUEST SWITCH GROUND CIRCUIT
Check continuity between front door request switch connector and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace front door request switch ground cir-
cuit.
AB
Continuity
Intelligent Key
unit connector
Terminal
Front door request
switch connector
Terminal
M60
5DriversideD12
1Yes
25
Passenger
side
D29
A
Ground
Continuity
Intelligent Key unit
connector
Terminal
M60
5
No
25
PIIB6614E
Terminal
Door request
switch condition
Continuity
Front outside handle
12
Pressed Yes
Released No
PIIB6615E
Front outside
handle
connector
Terminal
Ground
Continuity
Driver side D12
2Yes
Passenger
side
D29
PIIB6616E
