BL-202
FRONT DOOR LOCK

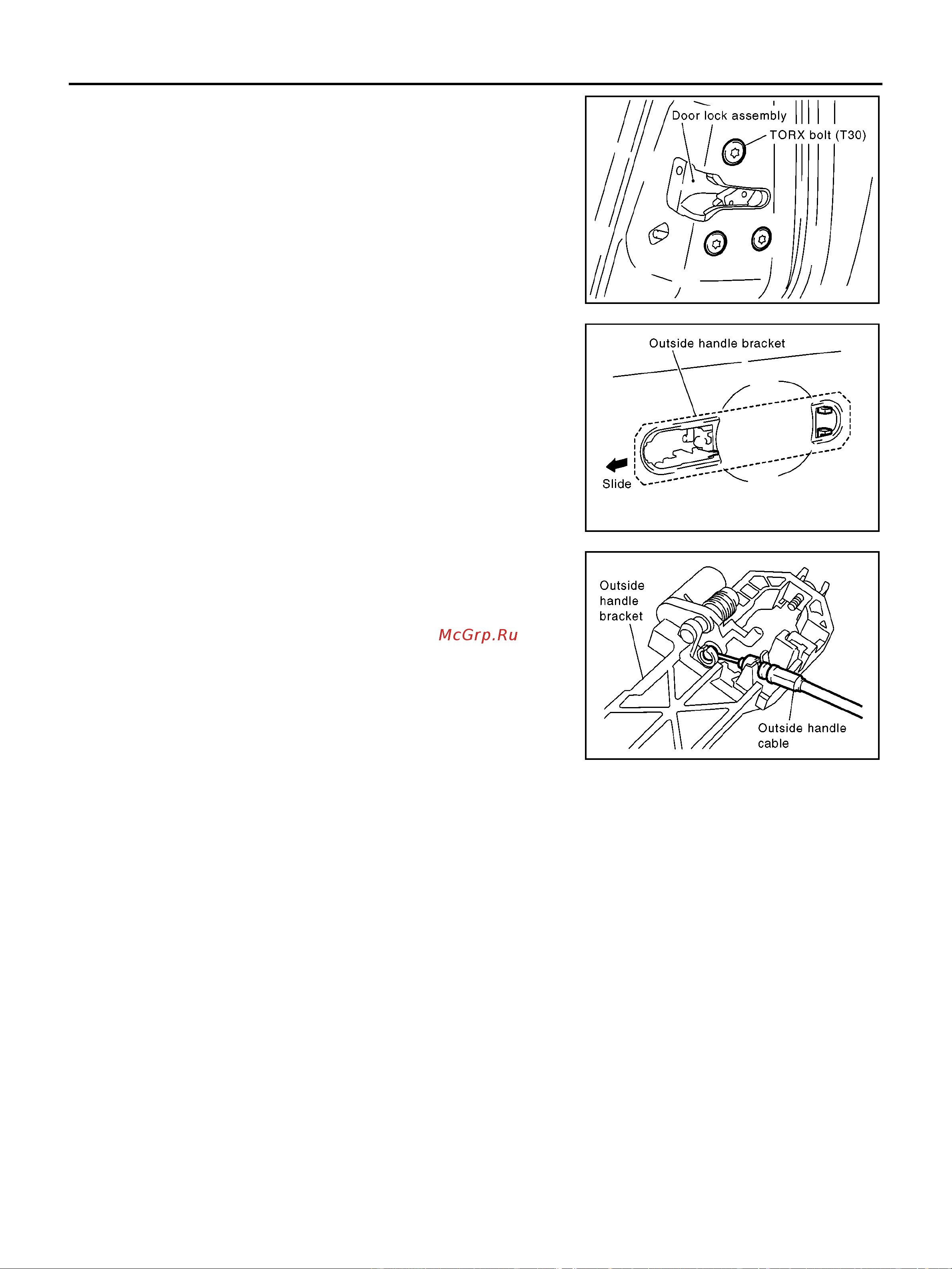

14. Remove door lock assembly bolts (Torx T30).
15. Slide outside handle bracket toward rear of vehicle, and then
remove outside handle bracket and door lock assembly.
16. Disconnect door lock assembly connector.
17. Disconnect outside handle cable from outside handle bracket.
Install in the reverse order of removal.
CAUTION:
● Before installing door lock assembly, apply “anti-corrosion wax M-97 super” onto mounting seat
on the body.
● Install each rod by rotating the rod holder until it engages with a tactile feel.
MIIB0132E
MIIB0133E
MIIB0134E
