BL-210
BACK DOOR
Removal and Installation of Back Door Weatherstrip
BIS000LA
REMOVAL
Pull up and remove engagement with body from weatherstrip joint.
CAUTION:
After removal, do not pull strongly on the weatherstrip.
INSTALLATION
Install in the reverse order of removal.
● Working from the upper section, align weatherstrip mark with vehicle center position mark and install
weatherstrip onto the back door.
● For the lower section, align the weatherstrip seam with center of the striker.
● After finishing work, pull weatherstrip lightly to check for looseness.
● Make sure the weatherstrip is fit tightly at each corner and luggage rear plate.

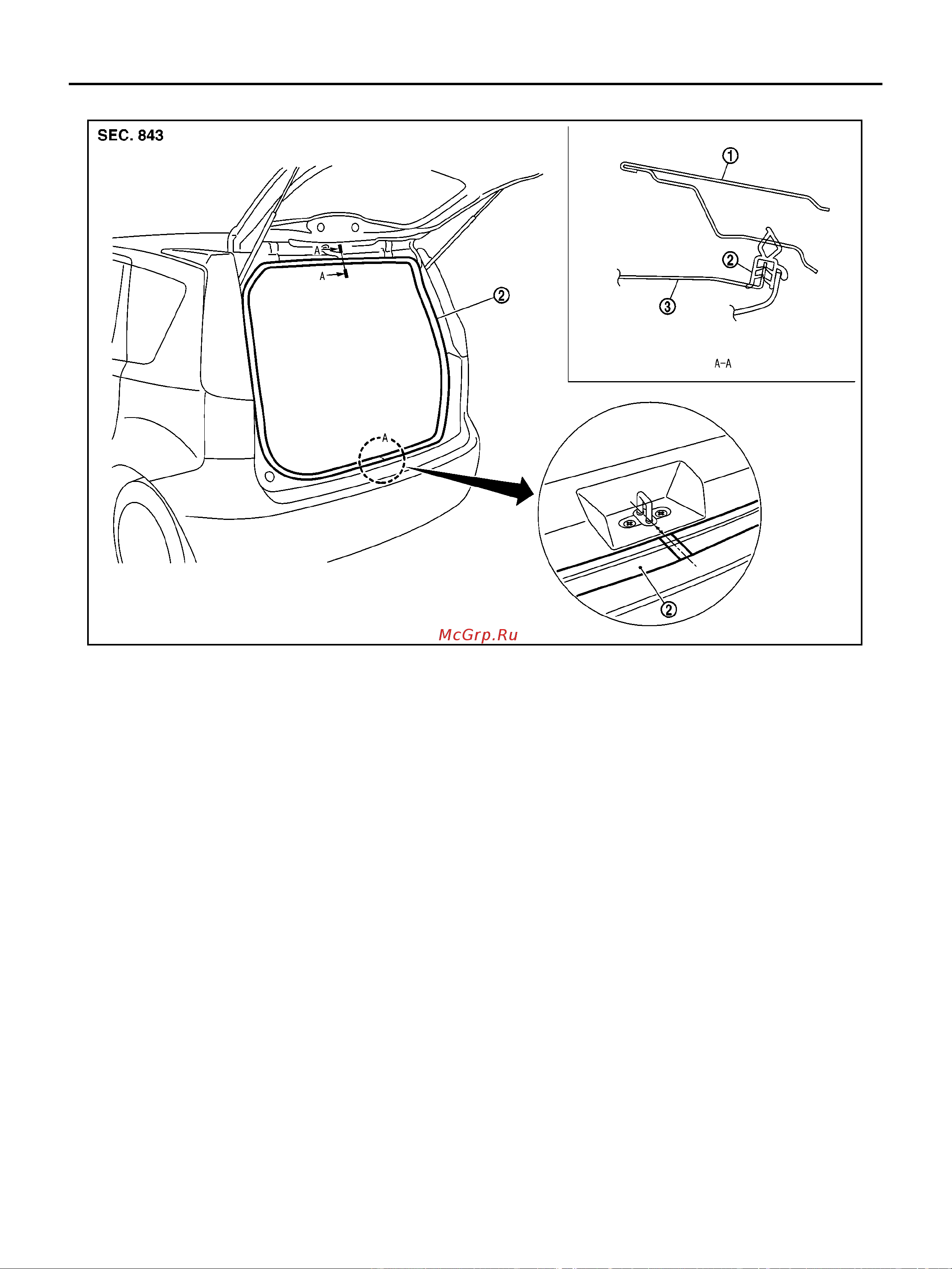

1. Back door panel 2. Back door weatherstrip 3. Roof panel
PIIB5579J
