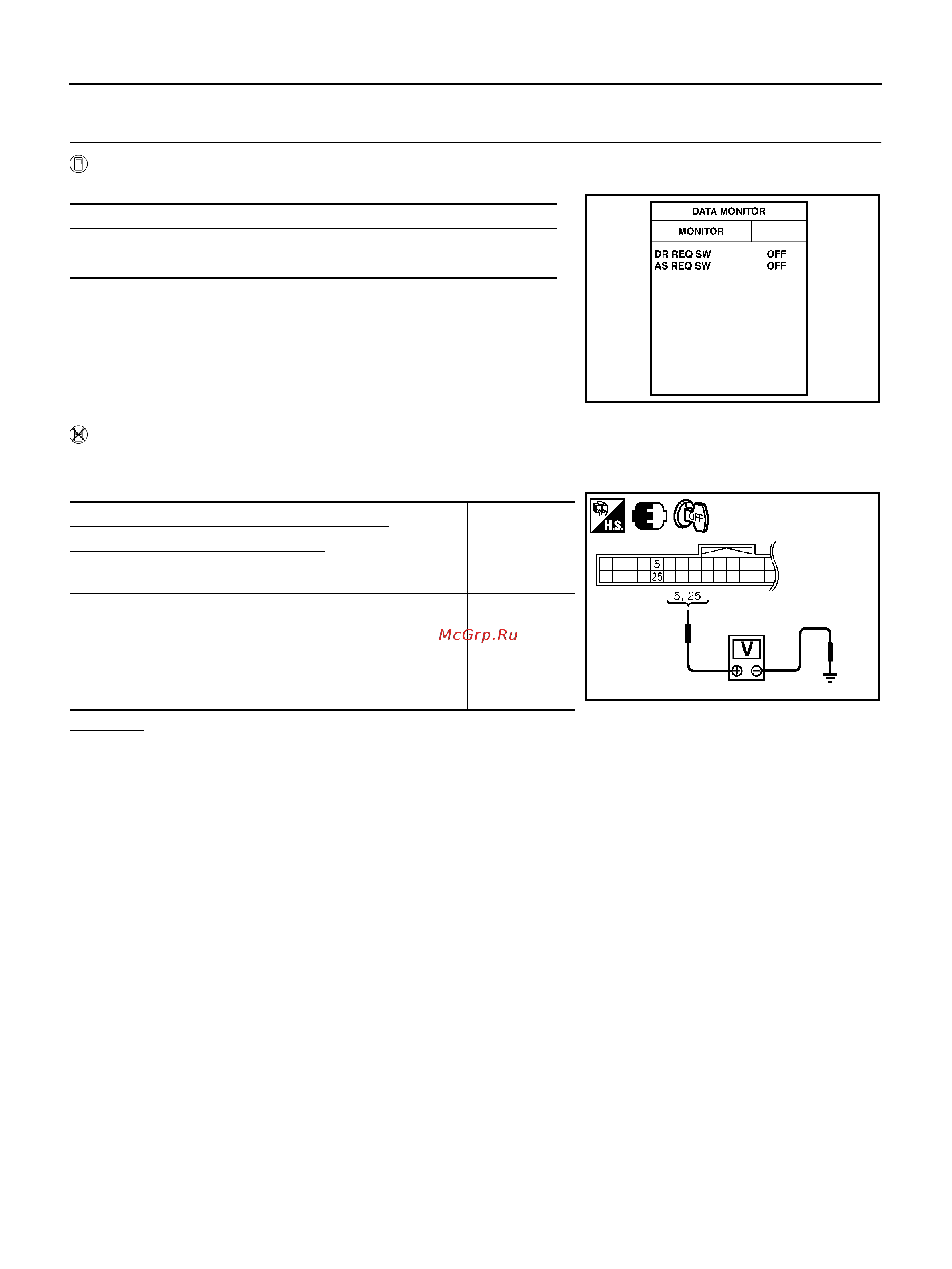

BL-170
INTELLIGENT KEY SYSTEM
Check Door Request Switch
BIS00166
1. CHECK DOOR REQUEST SWITCH
With CONSULT-II
Check door request switch (“DR REQ SW” or “AS REQ SW”) in “DATA MONITOR” mode.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between Intelligent Key unit harness connector and ground.
OK or NG
OK >> Door request switch circuit is OK.
NG >> GO TO 2.
Monitor item Condition
DR REQ SW
AS REQ SW
Door request switch is pressed: ON
Door request switch is released: OFF
PIIB4260E
Terminals
Door
request
switch
Condition
Voltage (V)
(Approx.)
(+)
(–)
Intelligent Key unit
connector
Terminal
M60
Door request
switch
(driver side)
5
Ground
Pressed 0
Released 5
Door request
switch
(passenger side)
25
Pressed 0
Released 5
PIIB6613E
