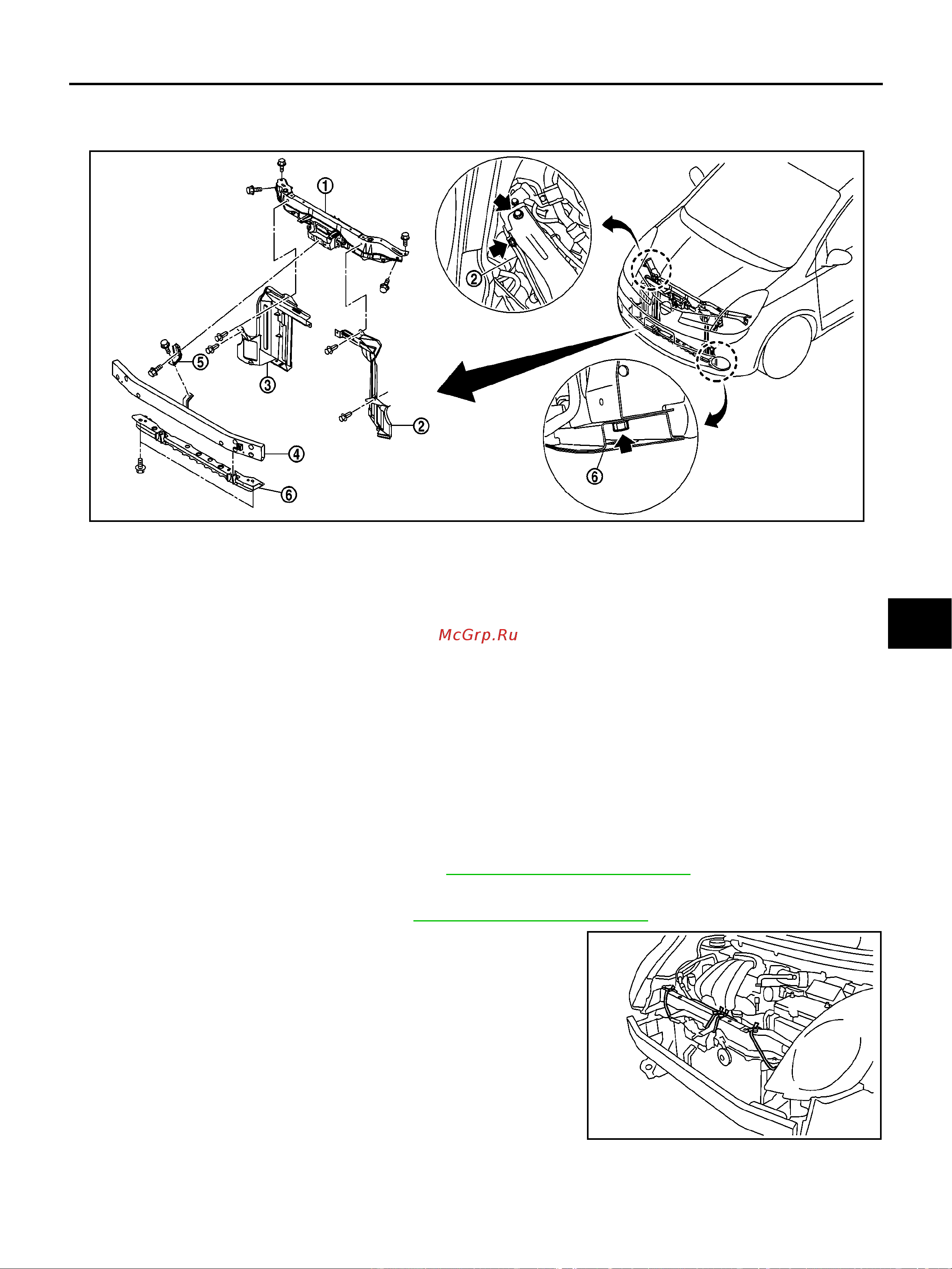

![Nissan Note [13/238] Radiator core support](/views2/1789810/page13/bgd.png)
RADIATOR CORE SUPPORT
BL-13
C
D
E
F
G
H
J
K
L
M
A
B
BL
RADIATOR CORE SUPPORT PFP:62500
Removal and Installation
BIS000I3
REMOVAL
Radiator Core Upper Support
1. Remove crash zone sensor.
2. Remove air duct.
3. Remove bumper reinforcement.
4. Remove food lock assembly.
5. Remove air guide.
6. Remove clip from washer tunk inlet, and then remove washer tunk inlet.
7. Remove ambient sencor.
8. Riemove horn.
9. Remove bolts, and then remove radiator core upper support.
Radiator Core Lower Support
1. Remove front bamper reinforcement. Refer to EI-10, "Removal and Installation" .
2. Remove under cover.
3. Remove front bumper lower clip. Refer to EI-4, "
Removal and Installation" .
4. Tie cord to all radiator core upper supports of the radiator and
condenser.
NOTE:
To prevent the compressor and radiator from being dropped
when the radiator core lower support is removed.
5. Remove bolts, and then remove radiator core lower supports.
6. Remove air guide (RH) bottom clips, and remove radiator core lower supports from passenger room.
1. Radiator core support upper 2. Air guide (LH) 3. Air guide (RH)
4. bamper reinforcement 5. Food lock mounting reinforcement 6. Radiator core support upper
PIIB5572J
PIIB5573J
