BL-200
FRONT DOOR LOCK
FRONT DOOR LOCK
PFP:80502
Component Parts Location
BIS000L1
*: Outside handle escutcheon for vehicles with passenger door key cylinders.
Removal and Installation
BIS000L2
REMOVAL
1. Remove front door finisher. Refer to EI-20, "Removal and Installation" .
2. Fully close front door glass.
3. Remove sealing screen.
4. Remove front door lower sash (rear). Refer to GW-89, "
Removal and Installation" .
5. Remove inside handle cable and lock knob cable from holder.
6. Remove inside handle screws, slide handle toward rear of vehi-
cle, disengage handle from door panel, and remove inside han-
dle.

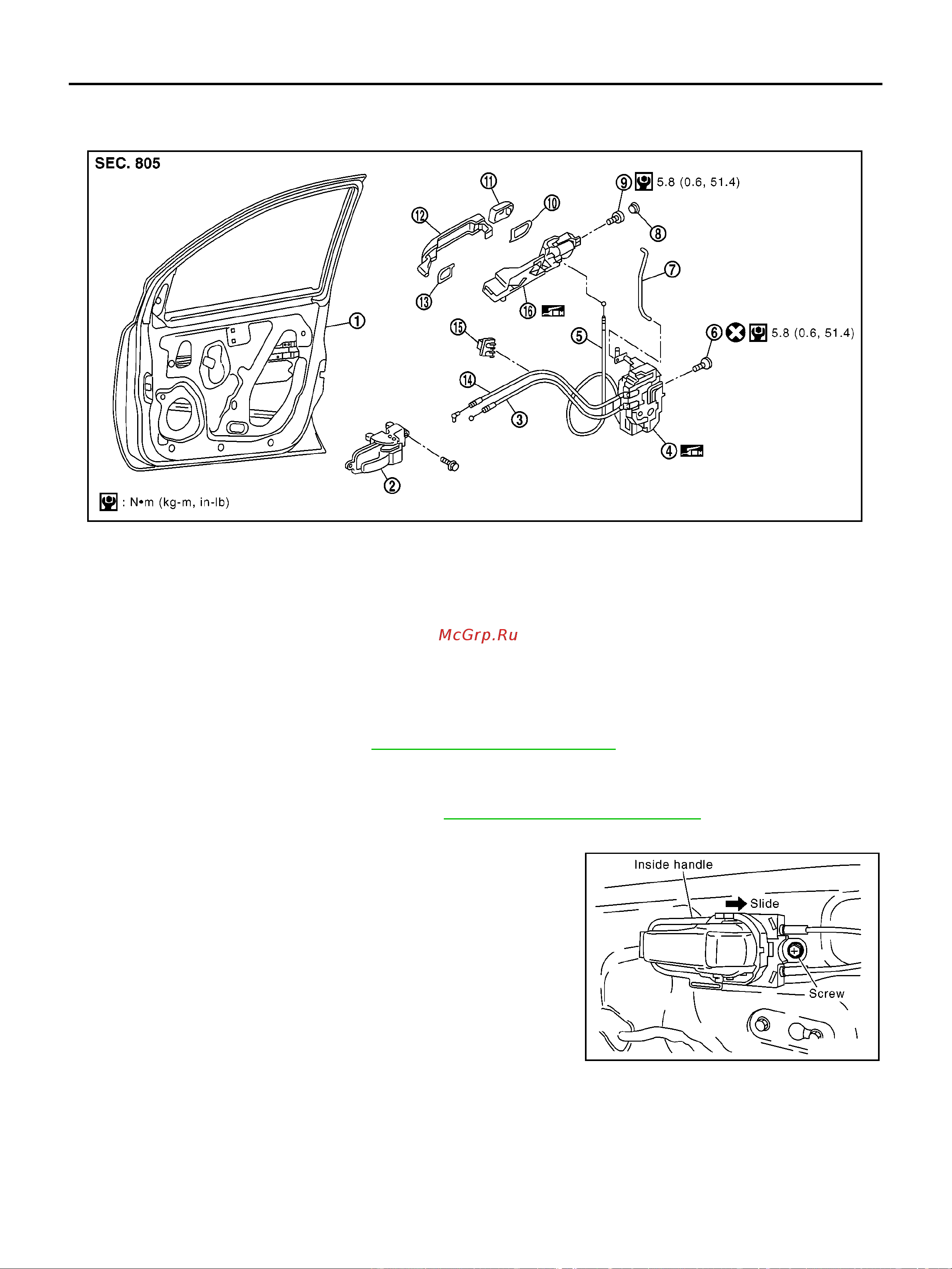

1. Front door panel 2. Inside handle 3. Inside handle cable
4. Door lock assembly 5. Outside handle cable 6. TOLX bolt (T30)
7. Key cylinder connecting rod 8. Grommet 9. TOLX bolt (T30)
10. Rear gasket 11. *Door key cylinder assembly 12. Outside handle
13. Front gasket 14. Lock knob cable 15. Holder
16. Outside handle bracket
PIIB5576J
MIIB0126E
