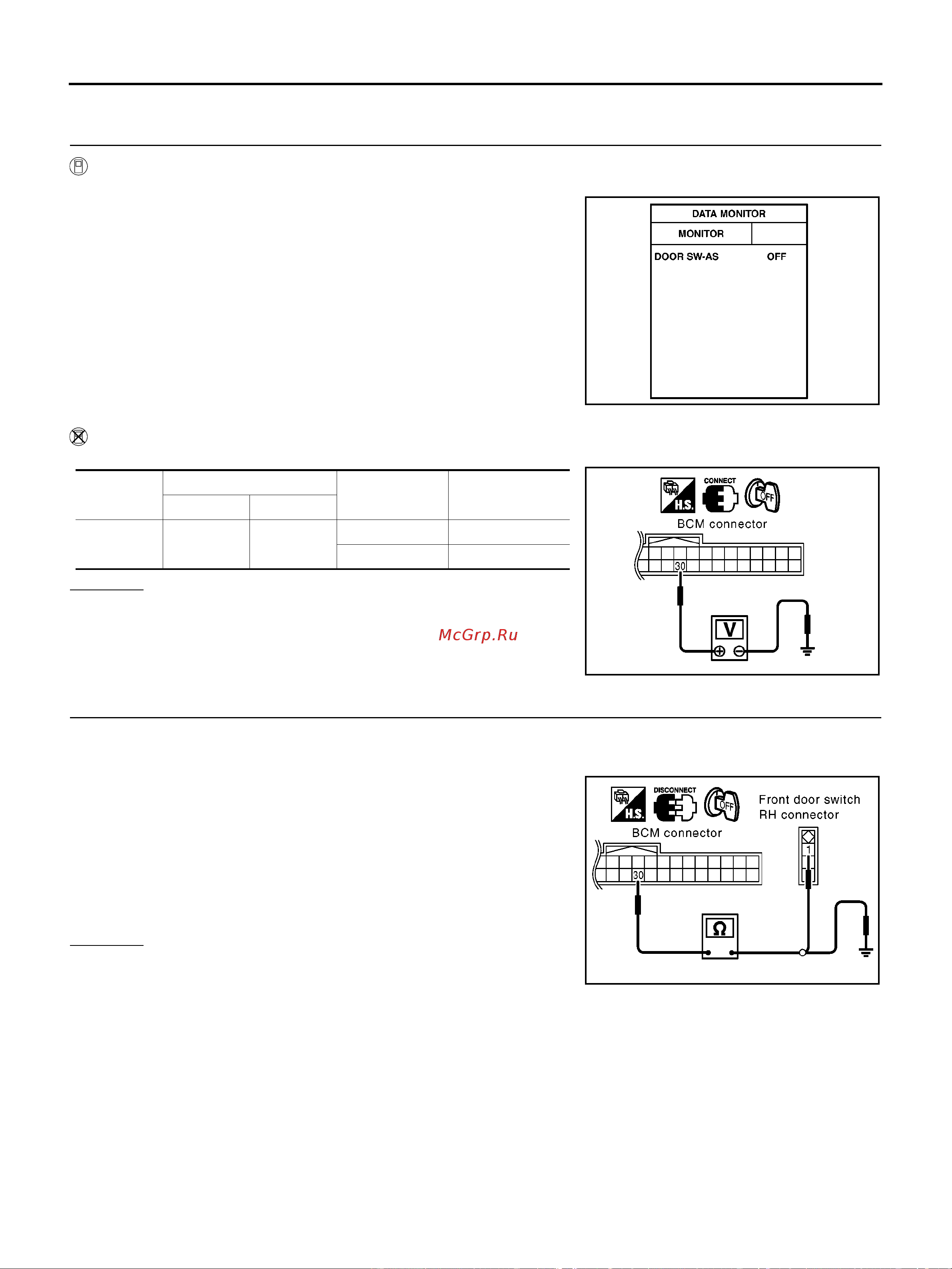

BL-176
INTELLIGENT KEY SYSTEM
PASSENGER SIDE
1. CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT- II
Check door switch “DOOR SW-AS” in “DATA MONITOR” mode with CONSULT- II.
Without CONSULT- II
Check voltage between BCM connector M57 terminal 30 and ground.
OK or NG
OK >> Front door switch RH is OK.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and front door switch RH connector.
3. Check continuity between BCM connector M57 terminal 30 and
front door switch RH connector B29 terminal 1.
4. Check continuity between BCM connector M57 terminal 30 and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
When front door (passenger side) is opened:
DOOR SW-AS Þ ON
When front door (passenger side) is close:
DOOR SW-AS Þ OFF
MIIB1051E
Connector
Terminal (Wire color)
Condition
Voltage (V)
(Approx.)
(+) (-)
M57 30 Ground
Open 0
Close Battery voltage
MIIB0344E
30 – 1 : Continuity should exist.
30 – Ground : Continuity should not exist.
MKIB0850E
