BL-132
INTELLIGENT KEY SYSTEM
System Description
BIS000K6
● The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock
function) and start the engine (engine start function) by carrying the Intelligent Key, which operates based
on the results of electrical key-ID verification using two-way communications between the Intelligent Key
and the vehicle.
● Operation of the remote control buttons on the Intelligent Key also provides the same functions as the
remote control entry system. (Remote control entry functions)
● As an ignition key warning function, when a door lock is locked or unlocked with door request switch or
Intelligent Key button operation, the hazard lamps flashes and sound the Intelligent Key buzzer.
● Even if the vehicle or Intelligent Key battery runs out, the door locks can be locked and unlocked and the
engine can be initiated by the mechanical key built-in the Intelligent Key.
● If Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be
registered.
● It has been made possible to diagnose the system, change the function setting and register Intelligent Key
with the CONSULT-II.
DOOR LOCK FUNCTION
Operation Description
● When the driver door, passenger door, or back door request switch is pressed, Intelligent Key unit sends a
request signal from the transmission antenna corresponding to the pressed door request switch, key-ID
verification is performed using two-way communication with Intelligent Key, and if ID is successfully veri-
fied, a door lock/unlock request signal is sent to BCM (Body Control Module) through CAN communication
to lock/unlock the door lock.
● With the locking operation of door request switch, door lock actuators of all doors will be locked.
Driver side door request switch operation
● When door request switch (driver side) is pressed, driver side door lock actuator will be unlocked.
● When door request switch (driver side) is pressed for the second time, within 5 seconds after the first the
remaining doors will be unlock.
1. Inside key antenna (dash board)
M47
2. Intelligent key warning buzzer D10 3. a: Door request switch (driver side)
D12
Door request switch (passenger
side) D29
b: Outside antenna (driver side) D13
Outside antenna (passenger side)
D30
4. Inside key antenna (center console)
B20
5. Inside key antenna (luggage room)
B32

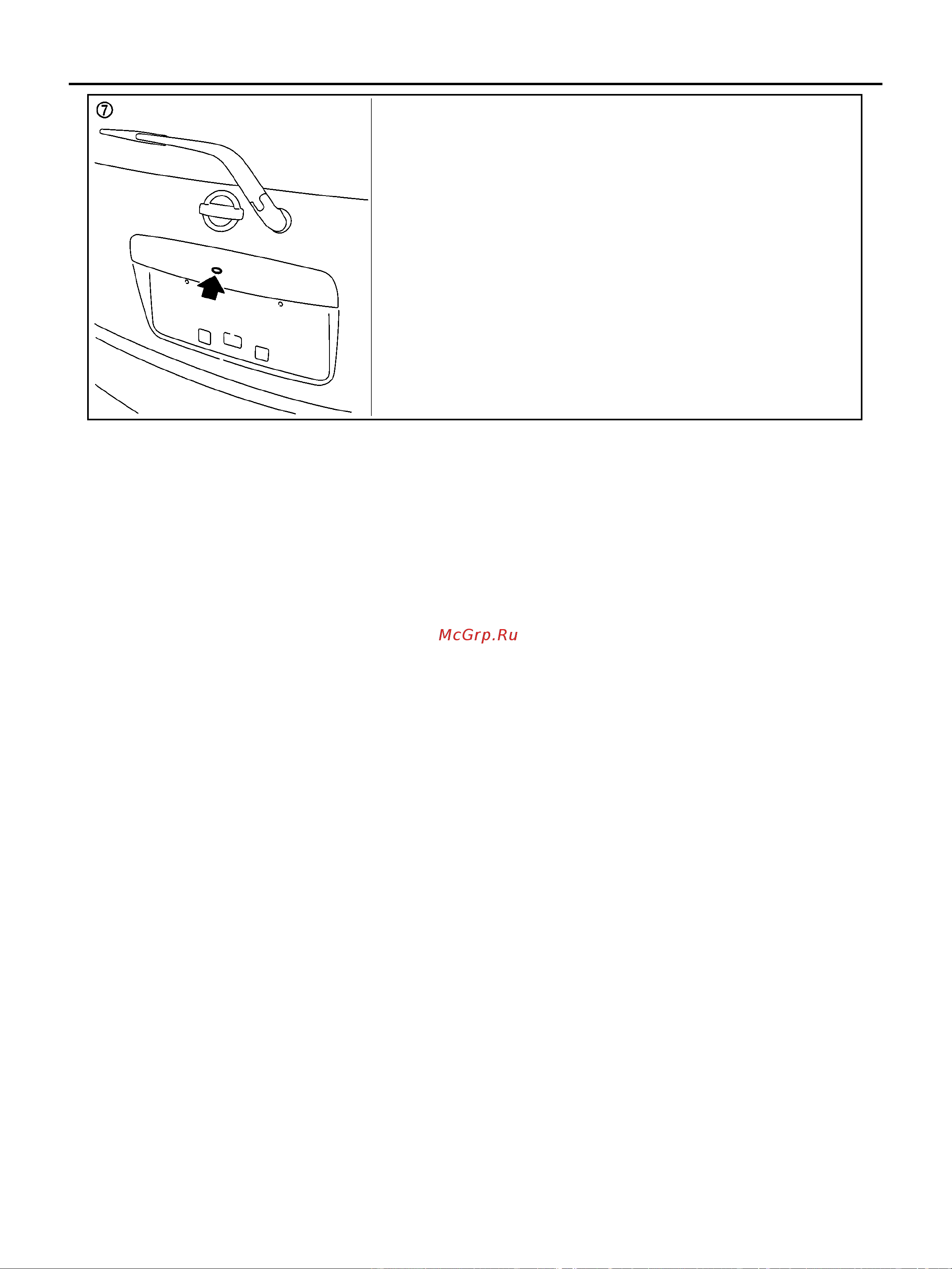

6. Outside antenna (back door) B43
7. Door request switch (back door)
D102
PIIB5851J
