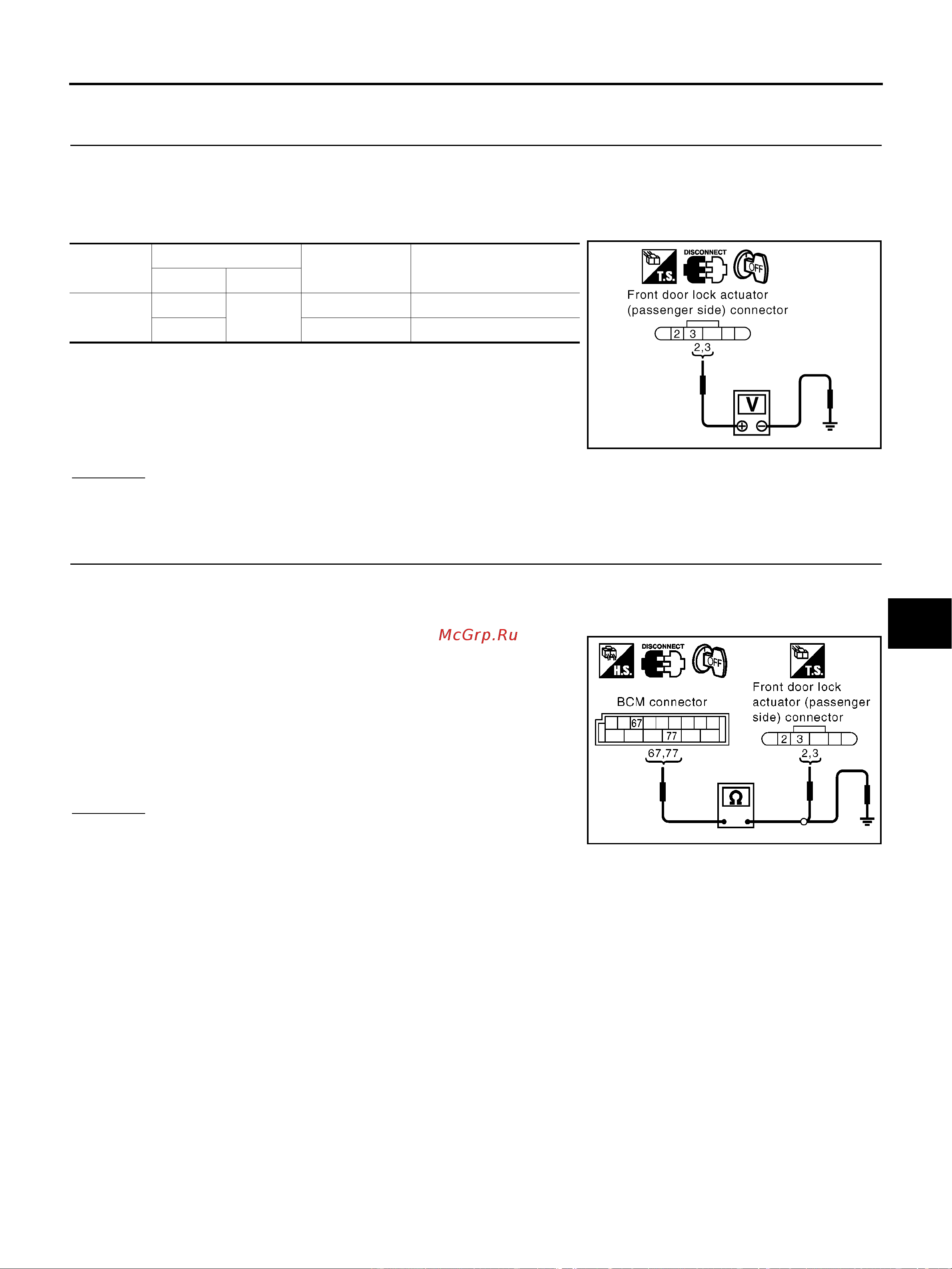

PASSENGER SIDE
1. CHECK DOOR LOCK ACTUATOR
1. Turn ignition switch OFF.
2. Disconnect front door lock actuator (passenger side) connector.
3. Operate door lock / unlock switch, check voltage between front door lock actuator (passenger side) con-
nector D28 terminal 2, 3 and ground.
OK or NG
OK >> Replace front door lock actuator (passenger side).
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Disconnect BCM connector.
2. Check continuity between BCM connector M59 terminals 67, 77 and front door lock actuator (passenger
side) connector D28 terminals 2, 3.
3. Check continuity between BCM connector M59 terminals 67, 77
and ground.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness.
Connector
Terminals (Wire color)
Condition
Voltage (V)
(Approx.)
(+) (-)
D28
3
Ground
Lock 0 → Battery voltage → 0
2 Unlock 0 → Battery voltage → 0
MIIB0398E
67 – 2 : Continuity should exist.
77 – 3 : Continuity should exist.
67 – Ground : Continuity should not exist.
77 – Ground : Continuity should not exist.
MIIB0399E
