NATS (NISSAN ANTI-THEFT SYSTEM)
BL-229
C
D
E
F
G
H
J
K
L
M
A
B
BL
Diagnostic Procedure 1
BIS000MD
IMMU FUNCTION CHECK results:
“UNREGISTERD BCM” displayed on CONSULT-II screen
1. CONFIRM IMMU FUNCTION CHECK
Confirm “IMMU FUNCTION CHECK” results “UNREGISTERD BCM” displayed on CONSULT-II screen.
Is CONSULT-II screen displayed as above?
YES >> ● BCM is malfunctioning.
● Replace BCM.
● Perform initialization with CONSULT-II.
– For initialization, refer to “CONSULT-II Operation Manual NATS”.
NO >> GO TO BL-227, "
Trouble Diagnosis Symptom Chart" .
Diagnostic Procedure 2
BIS000ME
MODELS WITHOUT INTELLIGENT KEY SYSTEM
IMMU FUNCTION CHECK results:
“CHAIN OF IMMU-KEY” displayed on CONSULT-II screen
1. CONFIRM IMMU FUNCTION CHECK
Confirm “IMMU FUNCTION CHECK” results “CHAIN OF IMMU-KEY” displayed on CONSULT-II screen.
Is CONSULT-II screen displayed as above?
Yes >> GO TO 2.
No >> GO TO BL-227, "
Trouble Diagnosis Symptom Chart" .
2. CHECK NATS ANTENNA AMP. INSTALLATION
Check NATS antenna amp. installation. Refer to BL-237, "
Removal and Installation NATS Antenna Amp." .
OK or NG
OK >> GO TO 3.
NG >> Reinstall NATS antenna amp. correctly.
3. CHECK IGNITION KEY ID CHIP
Start engine with another registered ignition key.
Does the engine start?
Yes >> ● Ignition key ID chip is malfunctioning.
● Replace the ignition key.
● Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II Operation Manual NATS”.
No >> GO TO 4.

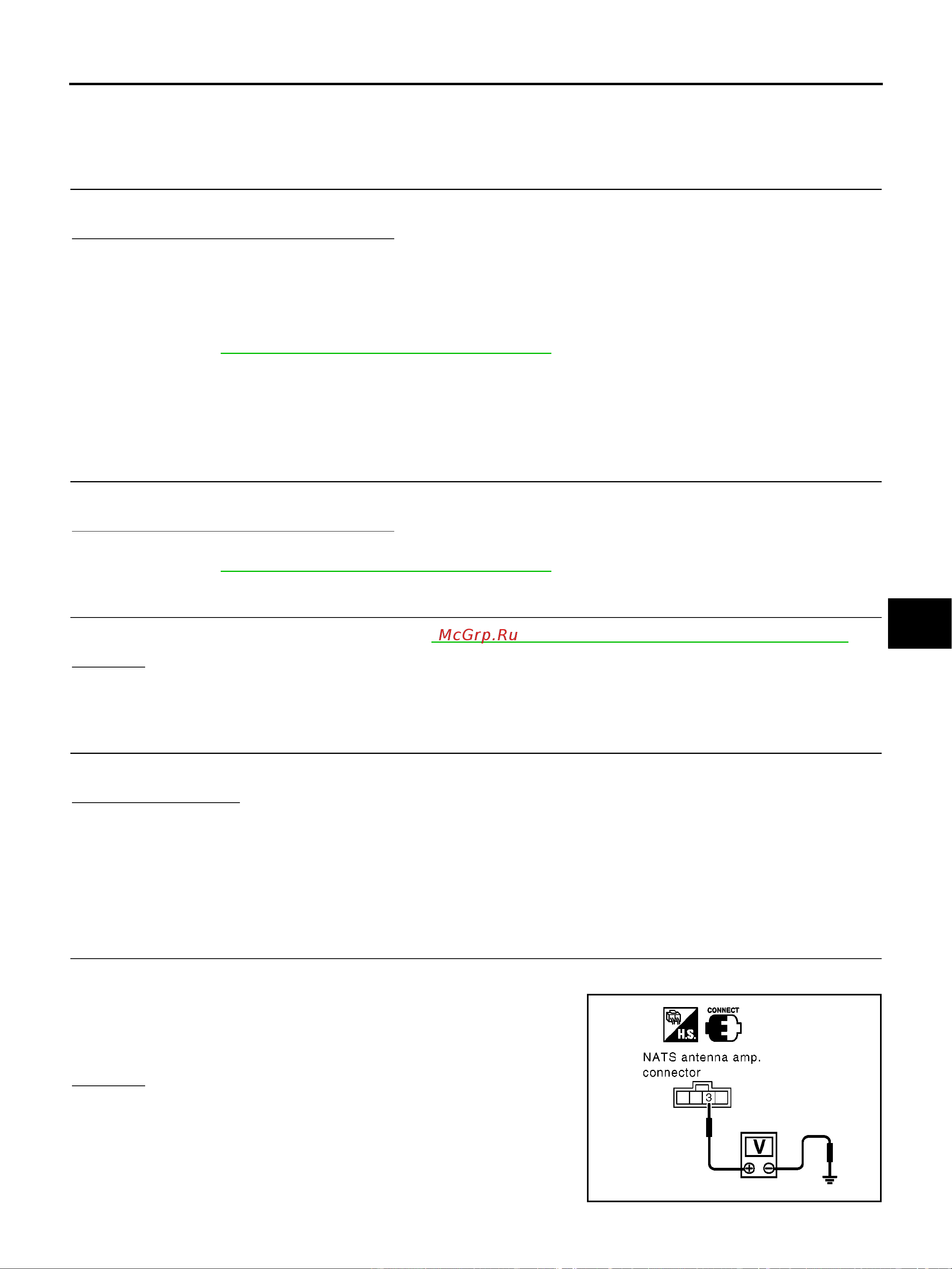

4. CHECK POWER SUPPLY FOR NATS ANTENNA AMP.
1. Turn ignition switch “ON”.
2. Check voltage between NATS antenna amp. connector and
ground.
OK or NG
OK >> GO TO 5.
NG >> Check harness for open or short between NATS
antenna amp. and fuse.
3 - Ground: Battery voltage
MIIB0401E
