DOOR
BL-199
C
D
E
F
G
H
J
K
L
M
A
B
BL
Front Door Weatherstrip
BIS000UG
CAUTION:
During removal, if peeling off the double-sided tape is difficult, apply remover (product equivalent to
Sumitomo 3M Cleaner 30) and then remove the double-sided tape. When using remover, keep it way
from open flame and work in a sufficiently ventilated area.
REMOVAL
1. Removal check link bolts.
2. Remove door weatherstrip.
INSTALLATION
Install in the reverse oprder of removal.

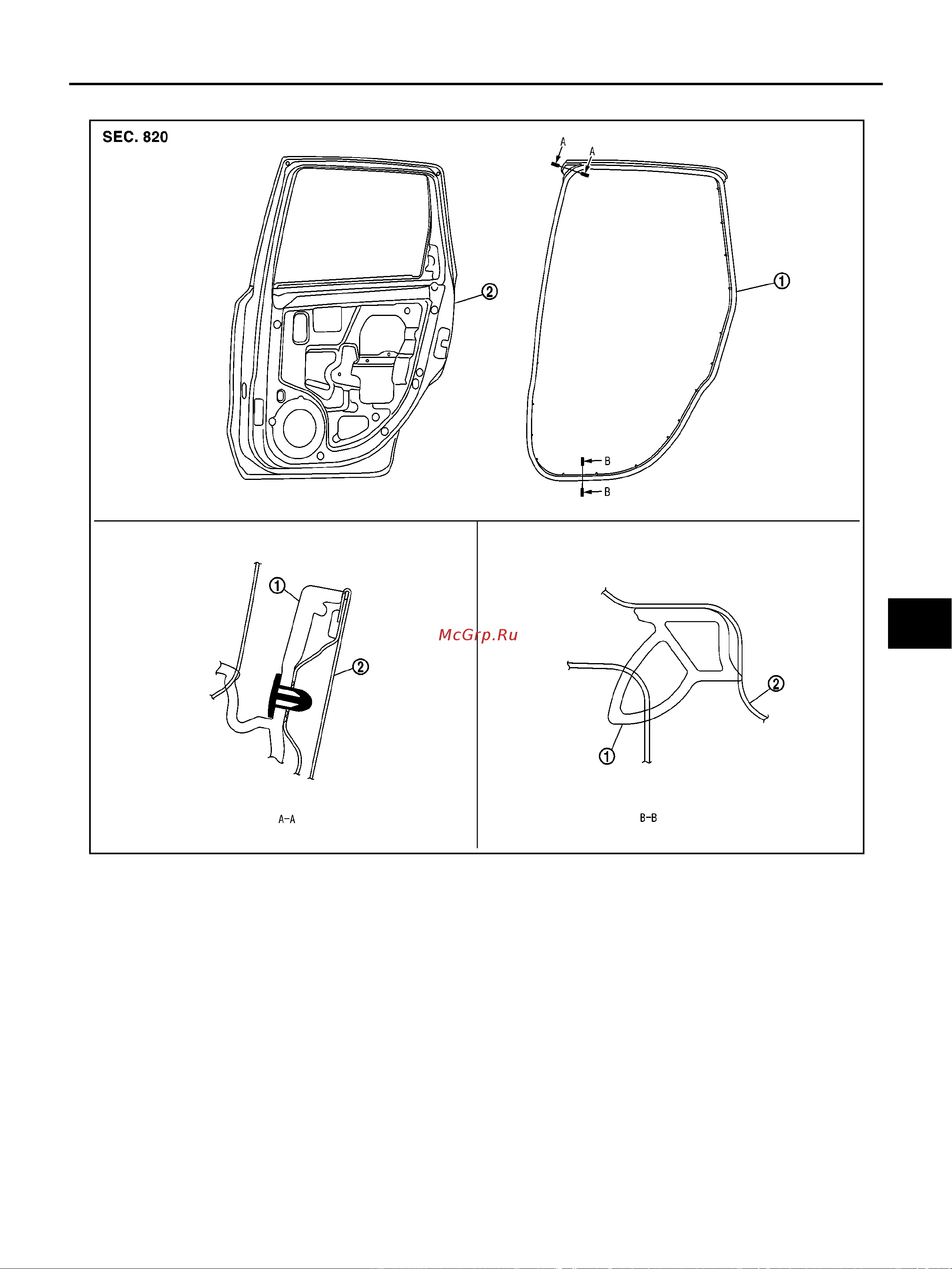

1. Rear door weatherstrip 2. Rear door
PIIB5587J
