BL-198
DOOR
Front Door Weatherstrip
BIS000L0
CAUTION:
During removal, if peeling off the double-sided tape is difficult, apply remover (product equivalent to
Sumitomo 3M Cleaner 30) and then remove the double-sided tape. When using remover, keep it way
from open flame and work in a sufficiently ventilated area.
REMOVAL
1. Remove check link bolts.
2. Remove door weatherstrip.
INSTALLATION
Install in the reverse order of removal.

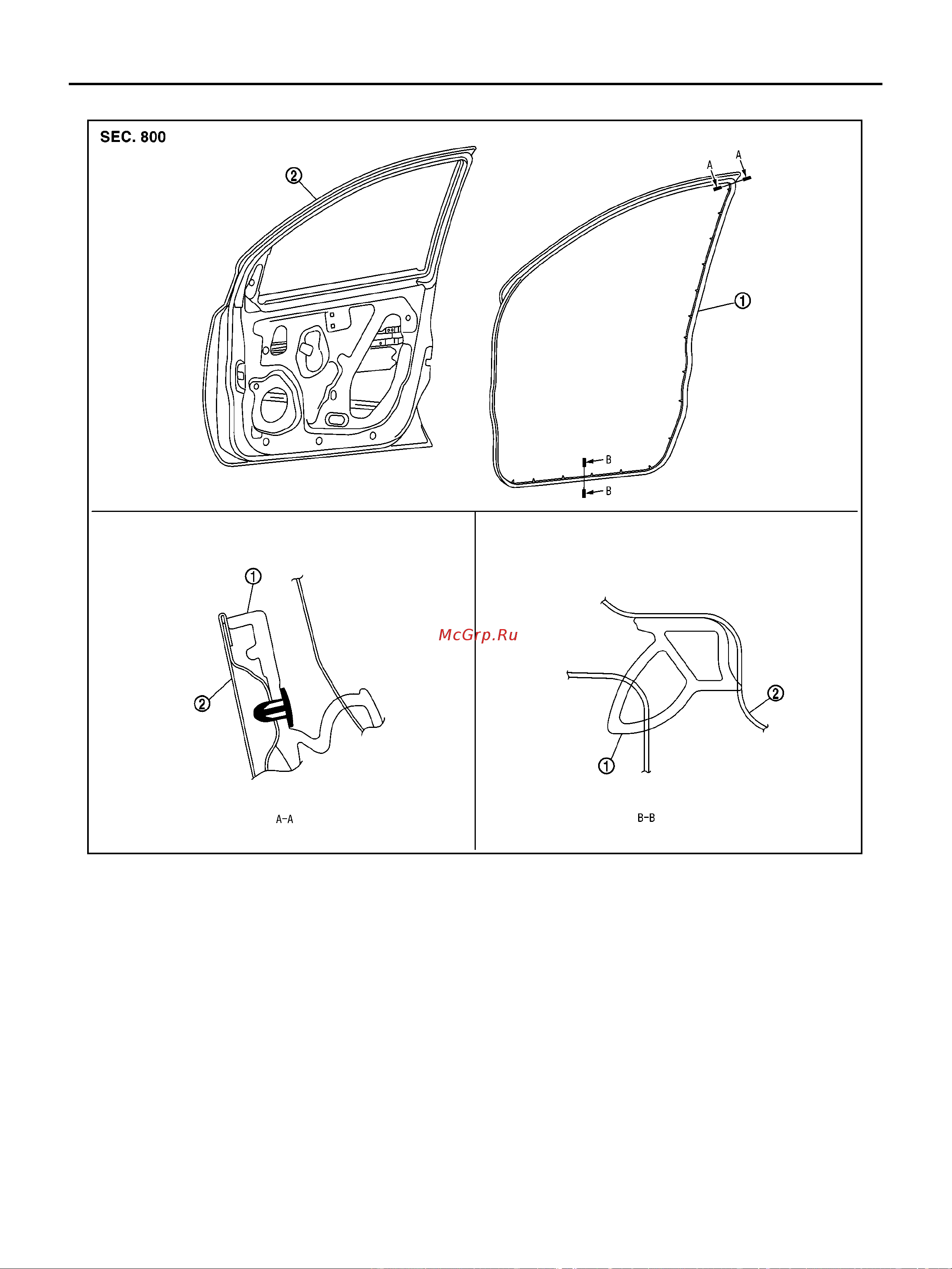

1. Front door weatherstrip 2. Front door
PIIB5586J
