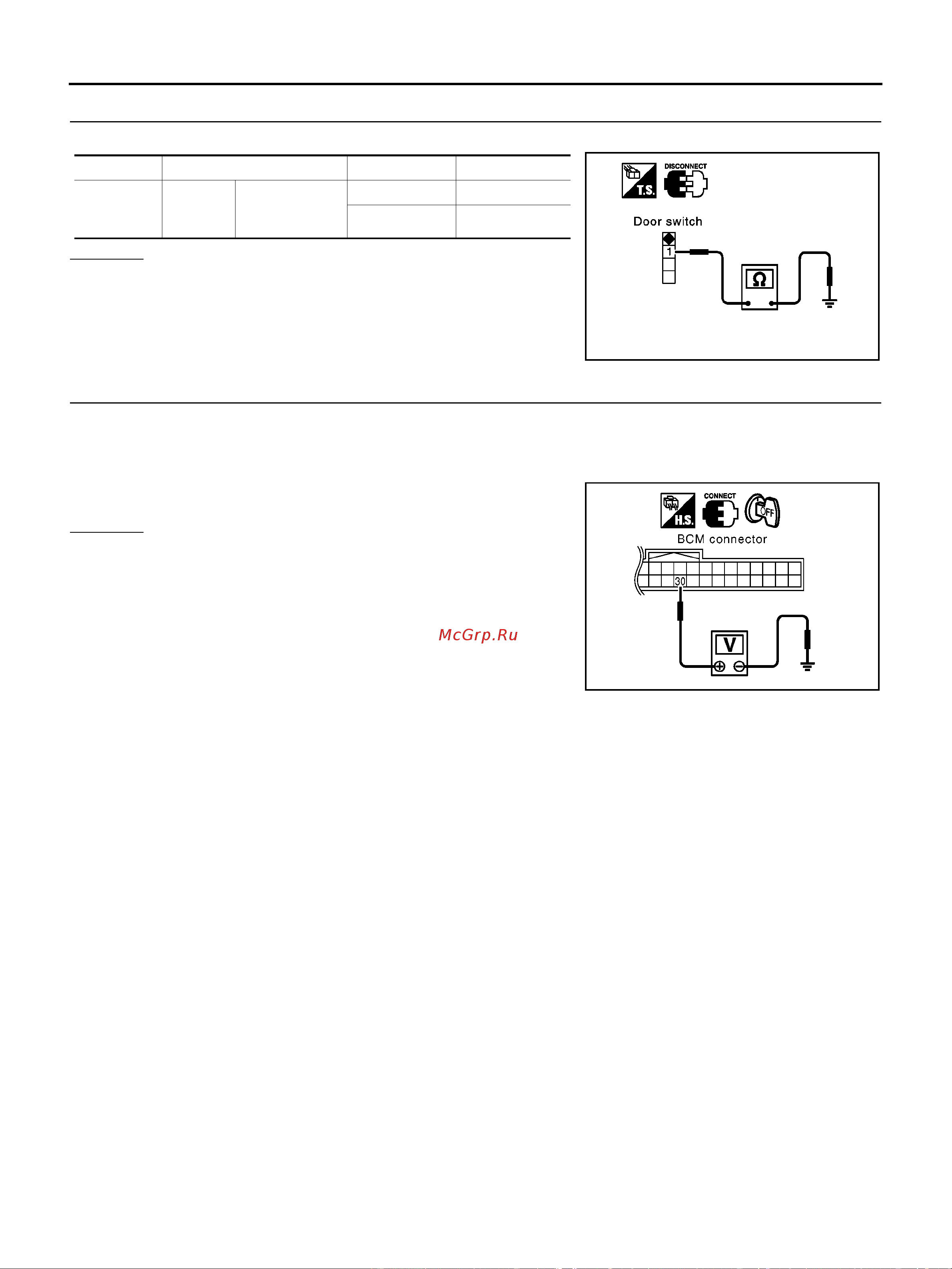

BL-102
POWER DOOR LOCK — SUPER LOCK —
3. CHECK DOOR SWITCH
Check continuity between door switch terminal 1 and body ground part of door switch.
OK or NG
OK >> GO TO 4.
NG >> Replace door switch.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector M57 terminal 30 and ground.
OK or NG
OK >> Check door switch ground condition.
NG >> Replace BCM.
Connector Terminal Condition Continuity
B14 1
Body ground
part of door
switch
Pushed NO
Released YES
PIIA3351E
30 – Ground : Battery voltage
MIIB0344E
