HOOD
BL-11
C
D
E
F
G
H
J
K
L
M
A
B
BL

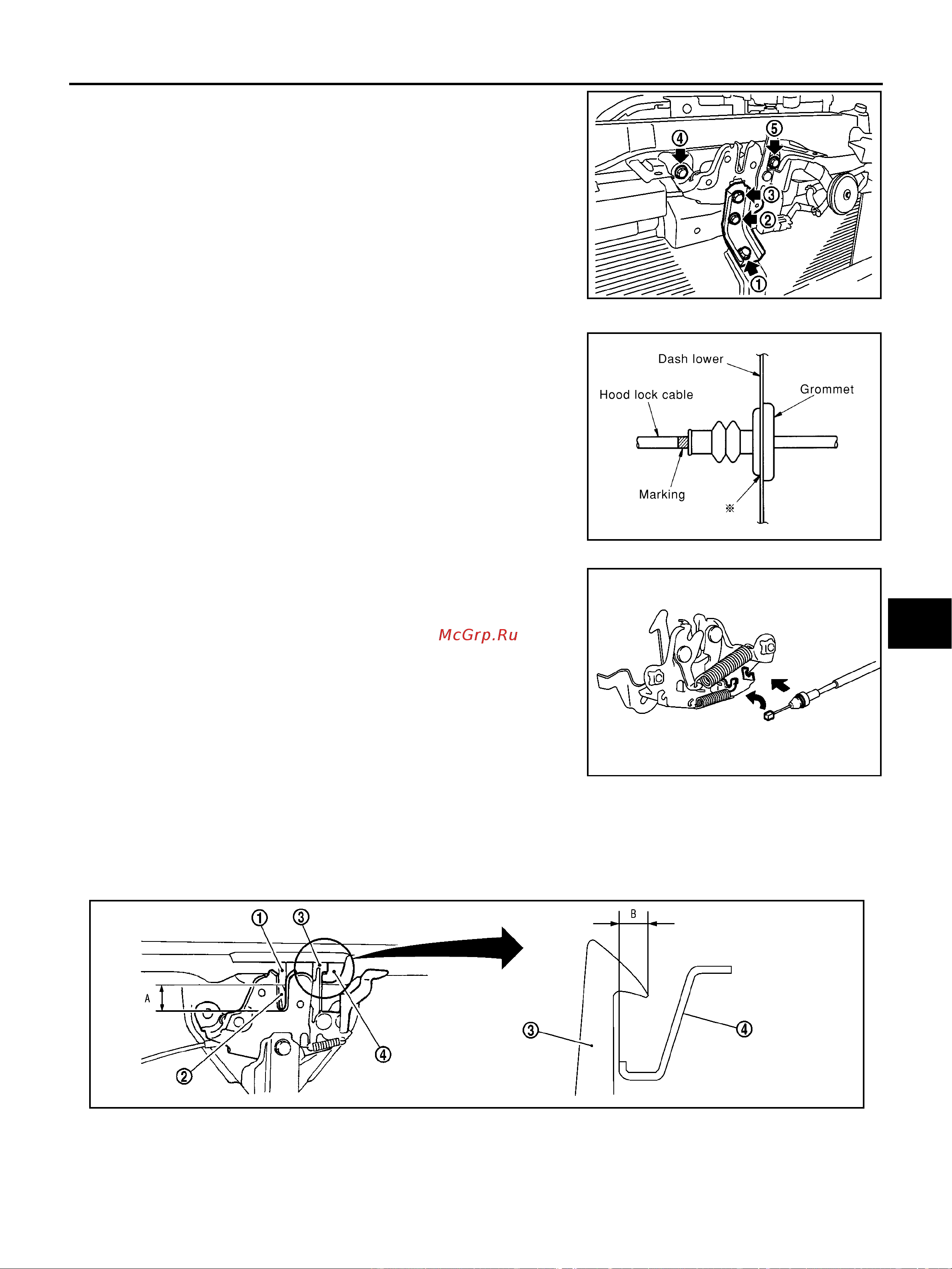

Hood Lock Cable
1. Pass hood lock cable through the opening while keeping the
winding radius 100 mm or larger.
2. After confirming grommet is properly positioned, push it securely
into the hole.
3. Apply sealant (POS seal) to area on the grommet indicated with
the * mark.
4. Install cable securely to lock.
5. After installing, check hood lock adjustment and hood opener
operation.
Hood Lock Control Inspection
BIS000I2
CAUTION:
If hood lock cable is bent or deformed, replace it.
1. Confirm hood lock secondary latch securely engages secondary striker by releasing it from a height of
approximately 200 mm.
2. While operating the hood opener carefully, make sure the front end of the hood is lifted by approximately
20 mm. Also, make sure the hood opener returns to the original position.
Bolt No. 1 to 5. Tightening torque (N·m, (kg-
m))
: 20.6 - 26.5 (2.1 - 2.7)
PIIB5568J
PIIA0173E
PIIB5570J
PIIB6101J
