BL-130
INTELLIGENT KEY SYSTEM
INTELLIGENT KEY SYSTEM
PFP:285e2

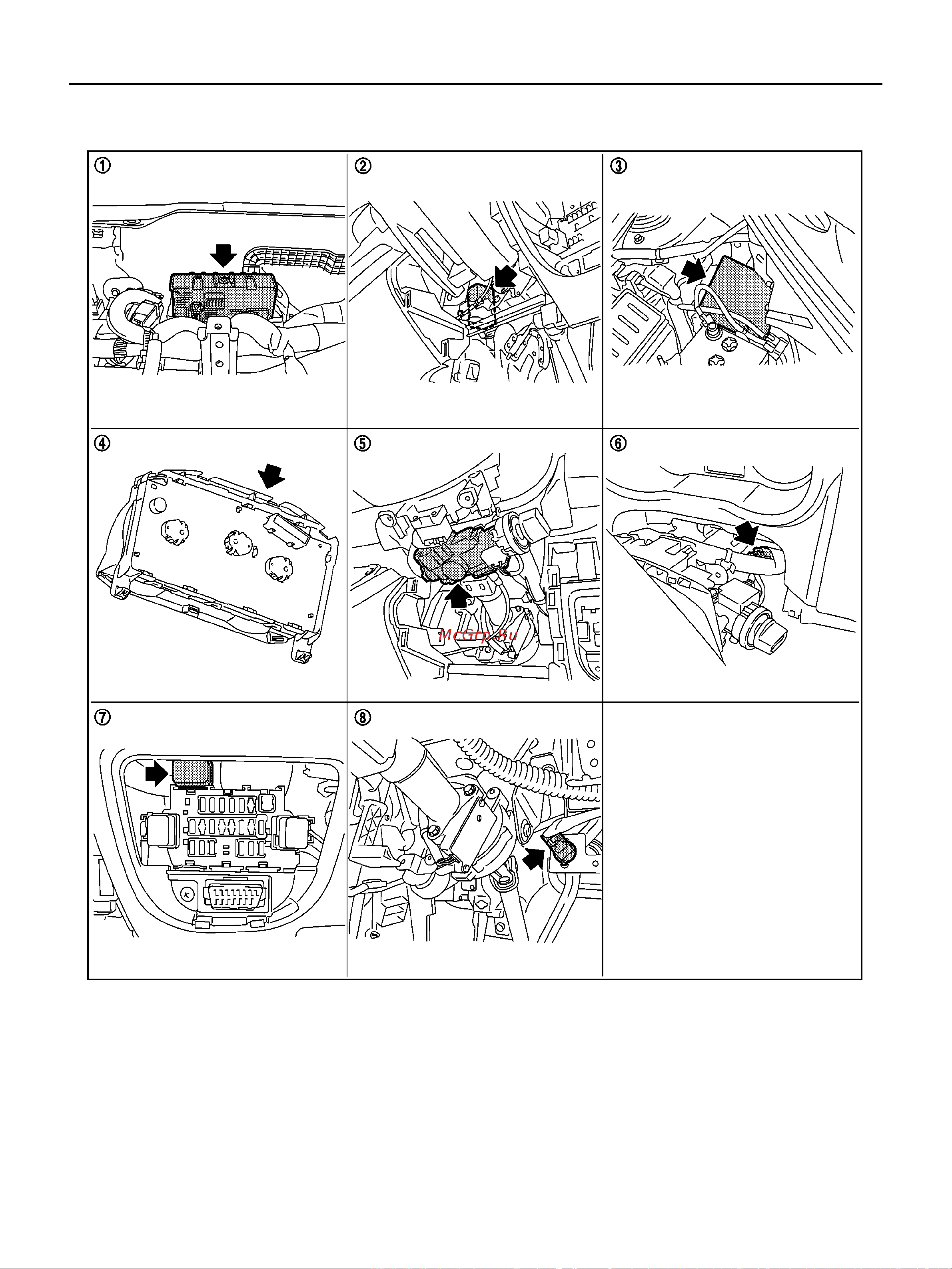

Component Parts and Harness Connector Location
BIS000K4
1. BCM M57, M58, M59 2. Intelligent Key unit M60 3. IPDM E/R E6, E10, E11, E12
4. Combination meter M27 5. Steering lock unit M37 6. Key switch and ignition knob switch
M34
7. Door lock relay M20 8. Stop lamp switch
E38: LHD CR engine and HR
engine M/T models
E60: LHD HR engine A/T models
and K9K engine models
M203: RHD CR engine and HR
engine M/T models
M204: RHD HR engine A/T models
and K9K engine models
MIIB1436E
