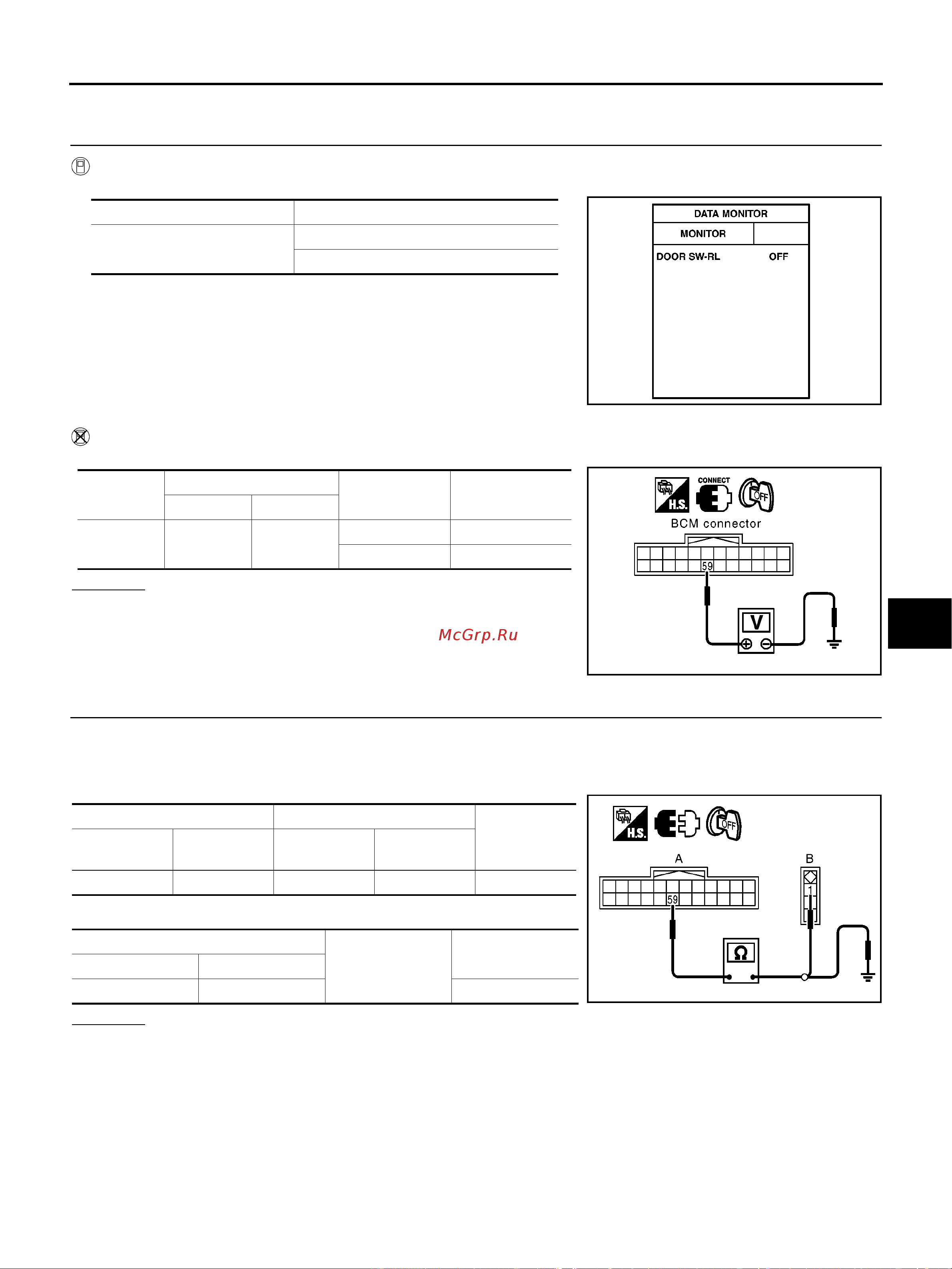

POWER DOOR LOCK — SUPER LOCK —
BL-103
C
D
E
F
G
H
J
K
L
M
A
B
BL
REAR LH SIDE
1. CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT- II
Check door switch “DOOR SW-RL” in “DATA MONITOR” mode with CONSULT- II.
Without CONSULT- II
Check voltage between BCM connector and ground.
OK or NG
OK >> Rear door switch LH is OK.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and rear door switch LH connector.
3. Check continuity between BCM connector and rear door switch LH connector.
4. Check continuity between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
Monitor item Condition
DOOR SW-RL
OPEN ON
CLOSE OFF
MIIB1052E
Connector
Terminal (Wire color)
Condition
Voltage (V)
(Approx.)
(+) (-)
M58 59 Ground
OPEN 0
CLOSE Battery voltage
MIIB0346E
AB
Continuity
BCM
connector
Terminal
Rear door
switch LH
Terminal
M58 59 B19 1 Yes
A
Ground
Continuity
BCM connector Terminal
M58 59 No
MIIB1374E
