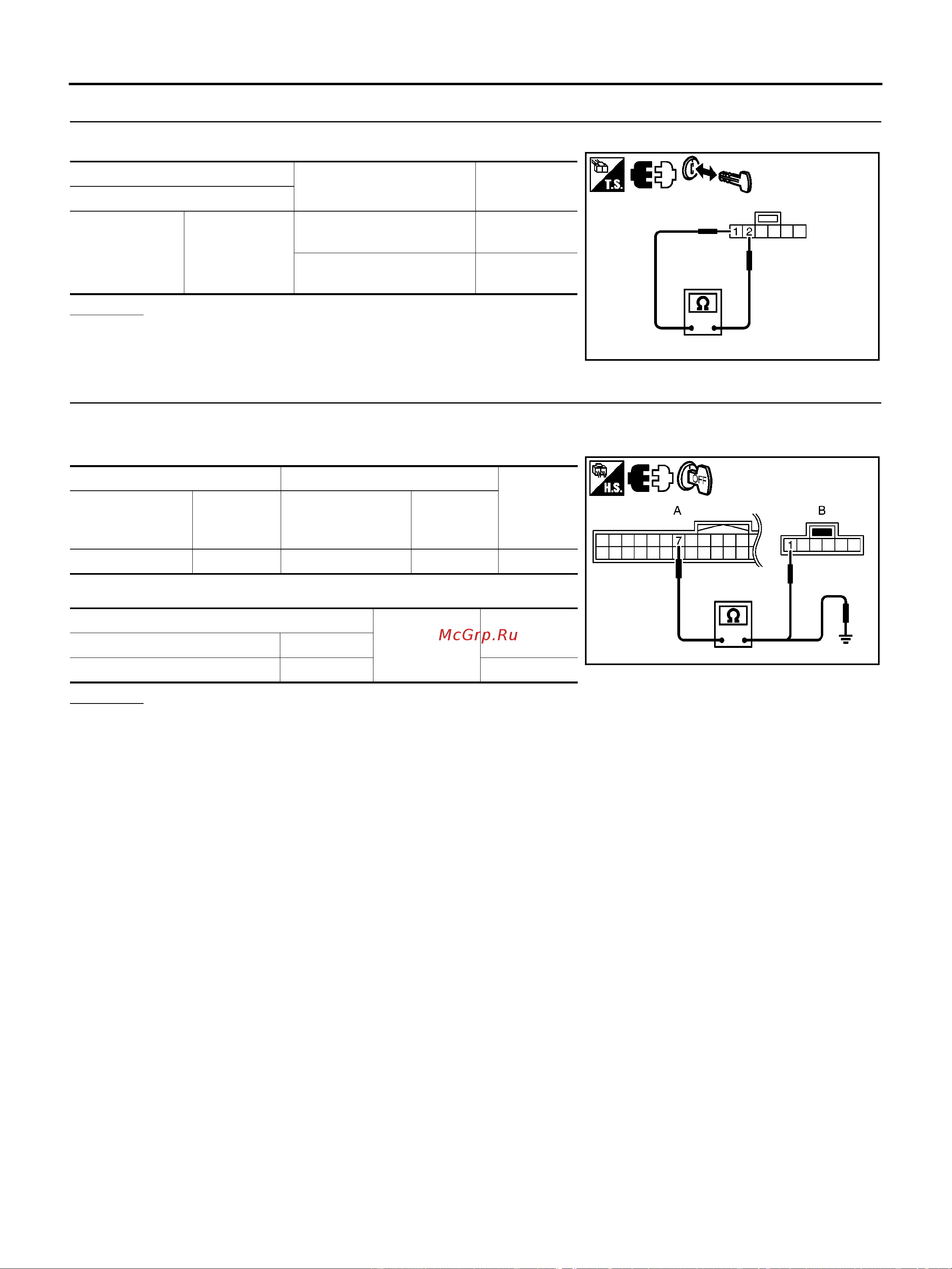

BL-166
INTELLIGENT KEY SYSTEM
3. CHECK KEY SWITCH
Check continuity key switch and ignition knob switch.
OK or NG
OK >> GO TO 4.
NG >> Replace key cylinder assembly (built-in key switch).
4. CHECK KEY SWITCH CIRCUIT
1. Disconnect Intelligent Key unit connector.
2. Check continuity between Intelligent Key unit and key switch and ignition knob switch.
3. Check continuity between Intelligent Key unit and ground.
OK or NG
OK >> Check the condition of harness and harness connector.
NG >> Repair or replace harness between Intelligent Key unit and key switch and ignition knob switch.
Terminal
Condition of key switch Continuity
Key switch and ignition knob switch
12
Insert mechanical key into
ignition switch
Yes
Remove mechanical key
from ignition switch
No
PIIB6599E
AB
Continuity
Intelligent Key
unit connector
Terminal
Key switch and
ignition knob
switch connector
Terminal
M60 7 M34 1 Yes
A
Ground
Continuity
Intelligent Key unit connector Terminal
M60 7 No
PIIB6600E
